1/05
10-165
DocuColor 12/DCCS50
Compiler/Tamper Functional Description
Principles of Operation
Reissue

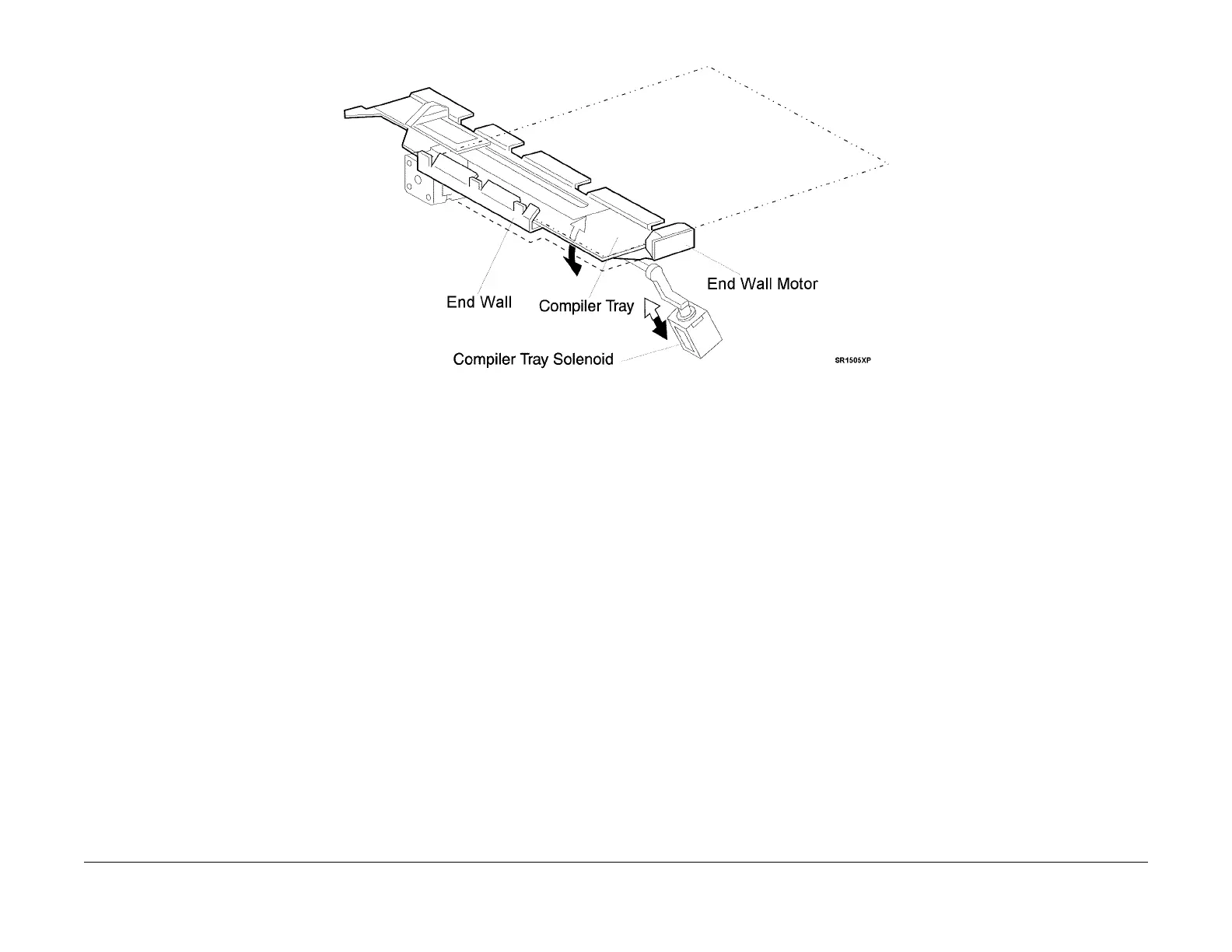

Figure 2 Compiler Tray End Wall
4. End Wall Motor
Controls the opening and closing of the End Wall.
5. End Wall Open Sensor
Monitors the position of the End Wall.
6. Compiler Entrance Sensor
Monitors paper entering the Compiler. The signal f
rom
the Sensor is used by the Finisher
logic to start and stop the Transport Motor and the Eject Motor.
7. Compiler Paper Sensor
Monitors paper on the Compiler Tray.
8. Compiler Cover Interlock Switch
Monitors the position of the Compiler Cover.
The Eject Roll reverses rotation and drives the s
heet of
paper back into the Compiler Tray. A
motor raises the End Wall to block the end of the Compiler Tray. When a set of paper (maxi-
mum of 25 sheets) is transported to the Compiler Tray, the Tamper taps the side of the paper to
square up t
he set
(Figure 3).
