DocuColor 12/DCCS50
REP 15.2.11
Finisher/Sorter
Reissue
REP 15.2.11 Tamper Motor
Parts List on PL 18.16
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Lower the Stacker Elevator so the tray is at the lowest possible position.
3. Disconnect the Finisher from the Printer.
4. Remove the Stapler Cover Assembly (REP 15.3.
3).
5. Remove the Rear Lower Cover (REP 15.3.
15).
6. Remove the Stacker Tray Assembly (REP 15.2.
2).
7. Remove the screws (4) from the Tie Plate and remove the Tie Plate from the Finisher
Frame.
8.
Remove the Tamper Motor (Figu
re 1).
1. Remove the Drive Belt from the Tamper Motor Pulley.
2. Disconnect connector P/J1087 and re
move the Tamper Motor wiring harness from
all cable ties.
3. Accessing the rear of the Tamper Motor, remove the two screws that secure the
Motor t
o the Compiler Bin and remove the Tamper Motor.

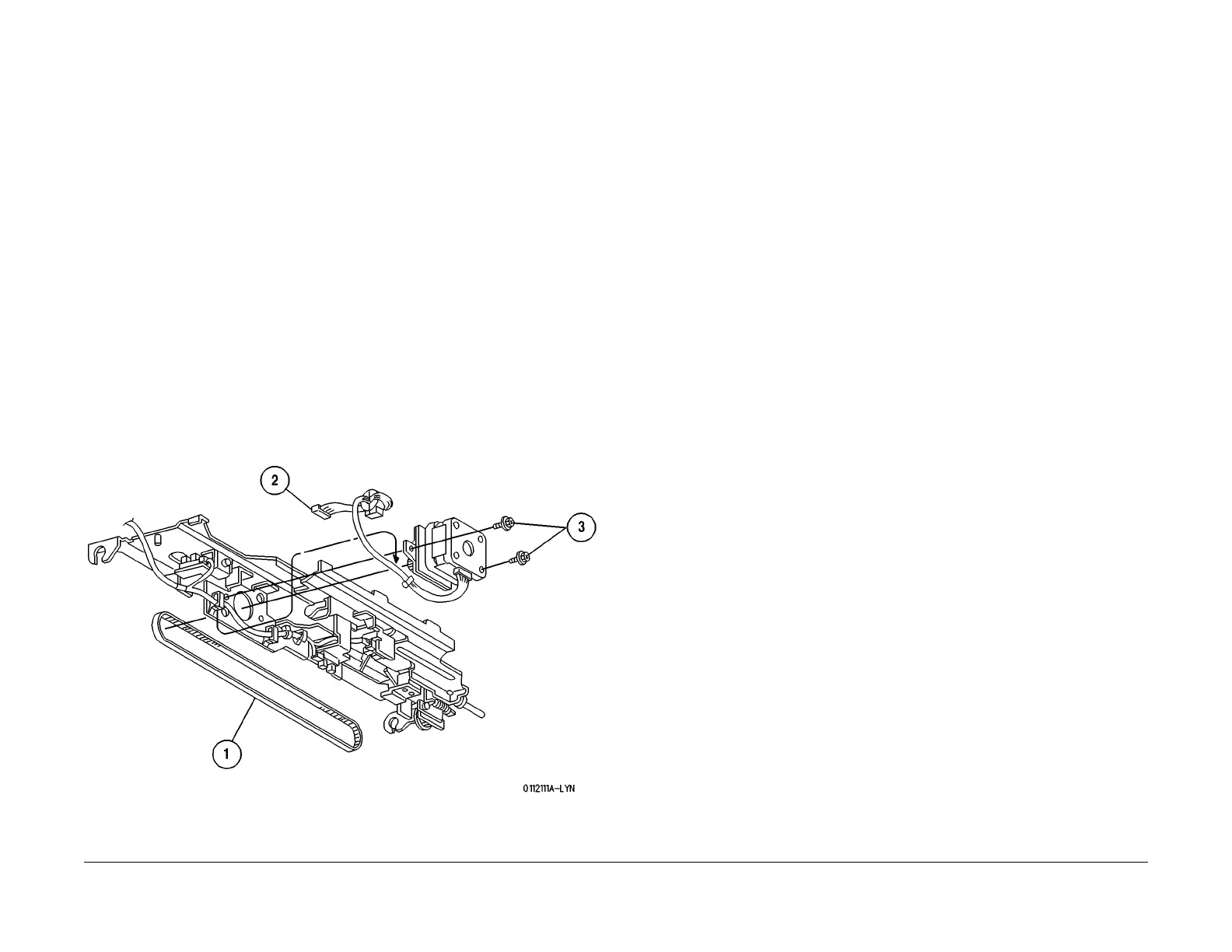

Figure 1 Remove the Tamper Motor
Replacement
1. Install the Tamper Motor onto the Compiler Bin and secure it with two screws.
2. Reinstall the Tamper Motor Drive Belt over the Tamper Motor Pulley.
3. Reinstall the Tie Plate and secure it to the Finisher Frame with the screws (4).
4. Connect connector P/J1087 and inst
all the Tamper Motor wiring harness into the cable
ties.
5. Reinstall the Stacker Tray Assembly.
6. Install the Rear Lower Cover.
7. Install the Stapler Cover Assembly.
8. Connect the Finisher to the Printer.
