DocuColor 12/DCCS50

PL 8.4

Reissue

Parts Lists

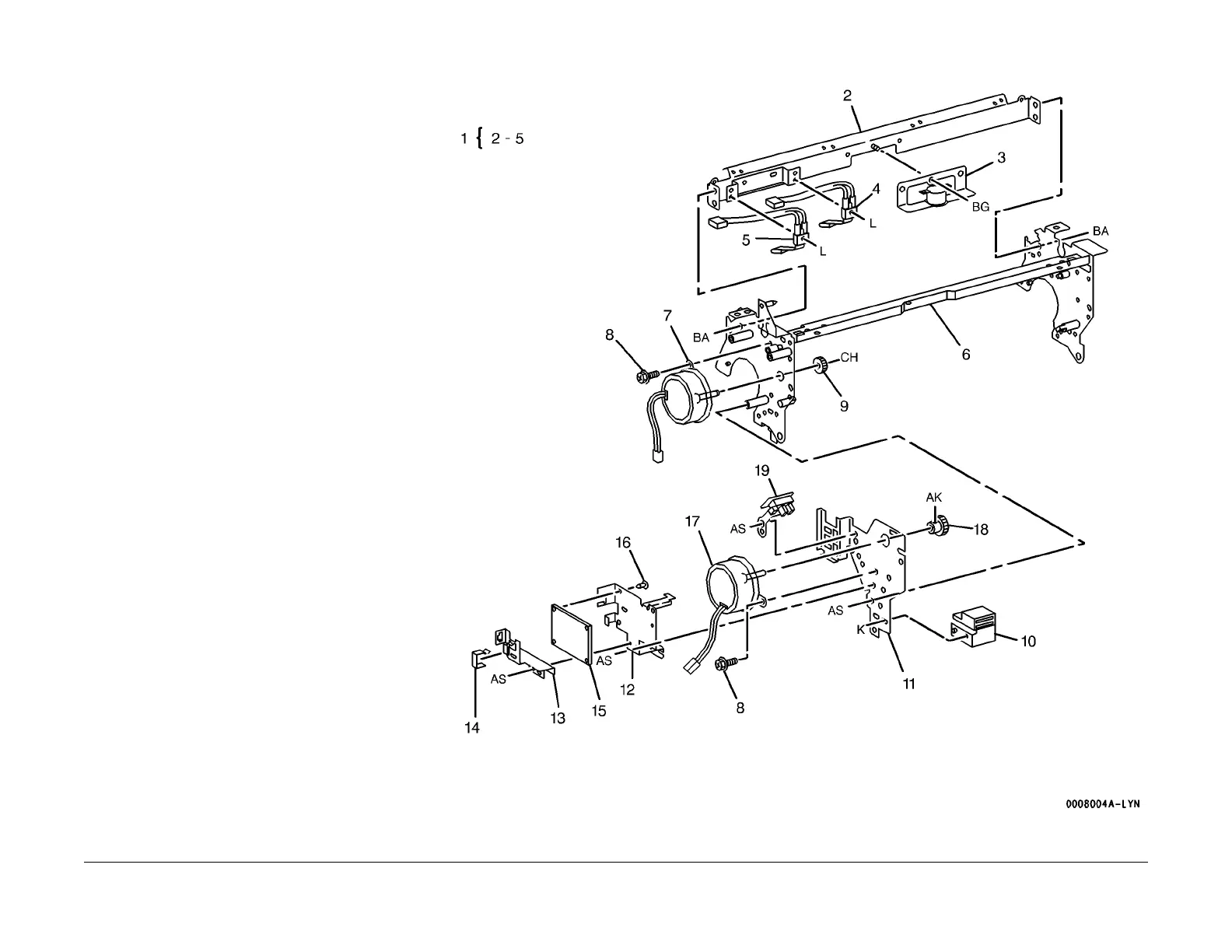

PL 8.4 Heat Roll Sensor, External Heat

Roll Retract/Web Motor

Item Part Description

1 130K57471 Heat Roll Sensor Assembly

2 – Bracket (P/O PL 8.4 Item 1)

3 130K57430 H/R Thermostat

4 130K57390 H/R Control Thermistor

5 130K57400 H/R Overheat Thermistor

6 – Upper Frame (P/O PL 8.1 Item 1)

7 127K27910 Web Motor (REP 8.4.1 )

8 – Screw (P/O PL 8.1 Item 1)

9 007E82390 Gear

10 121K16800 Magnet

11 – Bracket (P/O PL 8.1 Item 1)

12 – Bracket (P/O PL 8.1 Item 1)

13 – Bracket (P/O PL 8.1 Item 1)

14 – Holder (P/O PL 8.1 Item 1)

15 160K46120 Web Drive PWB

16 – PWB Support (P/O PL 8.1 Item 1)

17 127K21351 External Heat Roll Retract Motor

(RE

P 8.

4.1 )

18 007E51980 Gear

19 130K57490 External Heat Roll Retract Sensor
