1/05
4-78
DocuColor 12/DCCS50
REP 6.1.1, REP 6.1.2
Reissue
Repairs and Adjustments

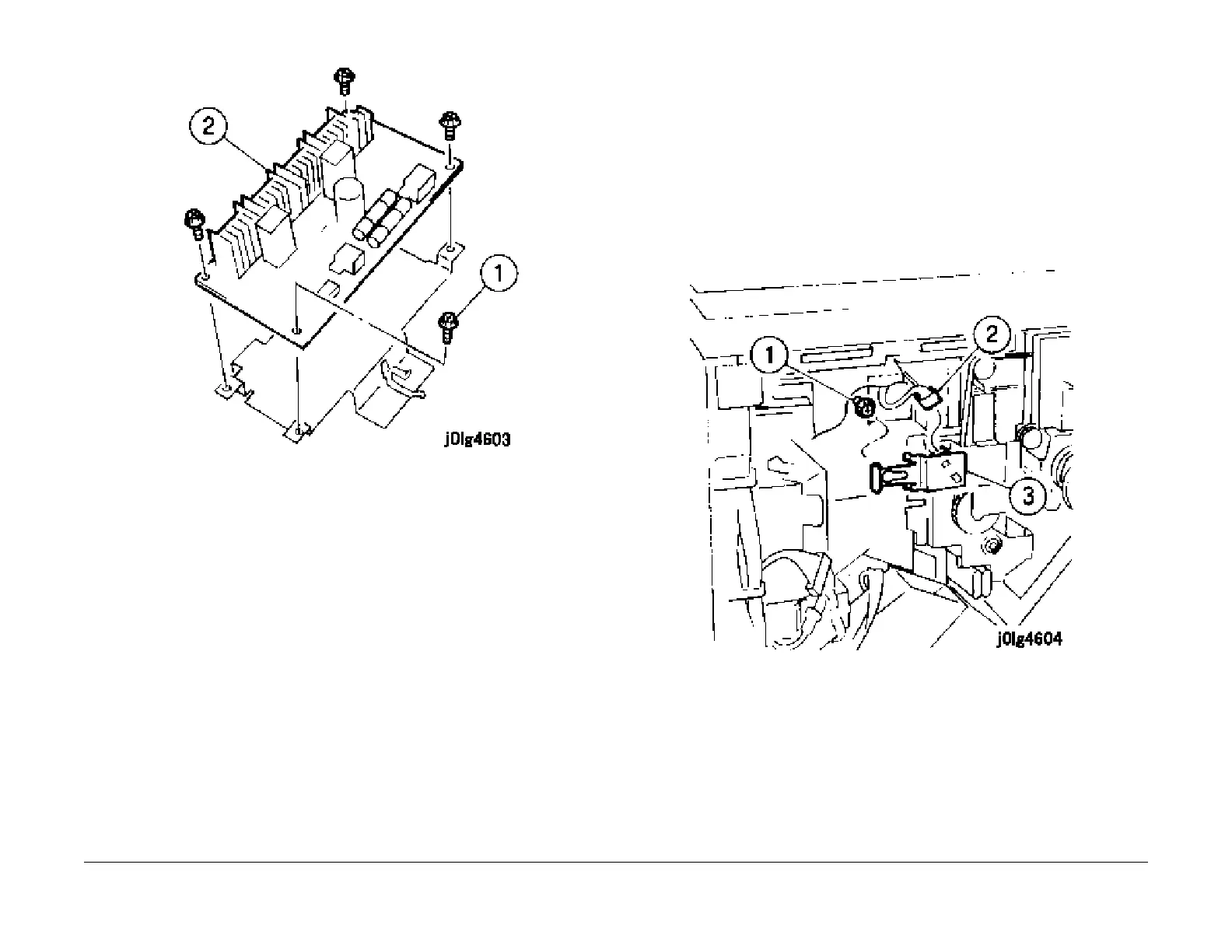

Figure 3 Remove the Rotary PWB
Installation
1. Reinstall the parts in the reverse order of disassembly.
REP 6.1.2 Rotary Home Position Sensor
Parts List on PL 6.1
Removal
WARNING
Switch off the power and disconnect the power cord.
1. Remove the Rotary PWB (steps 1 -3 of REP 6.1.
1).
2. Remove the Rotary Home Position Sensor with the bracket (Figure 1
).
1. Loosen the screw.
2. Disconnect the connector.
3. Remove the sensor.
Figure 1 Remove the Rotary Home Position Sensor
Installation
1. Push the bracket in the direction of the arrow and lock it. (Figure 2).
