Xerox DocuColor 12/DCCS50

1/05
5-263
DocuColor 12/DCCS50
PL 3.4
Parts Lists
Reissue

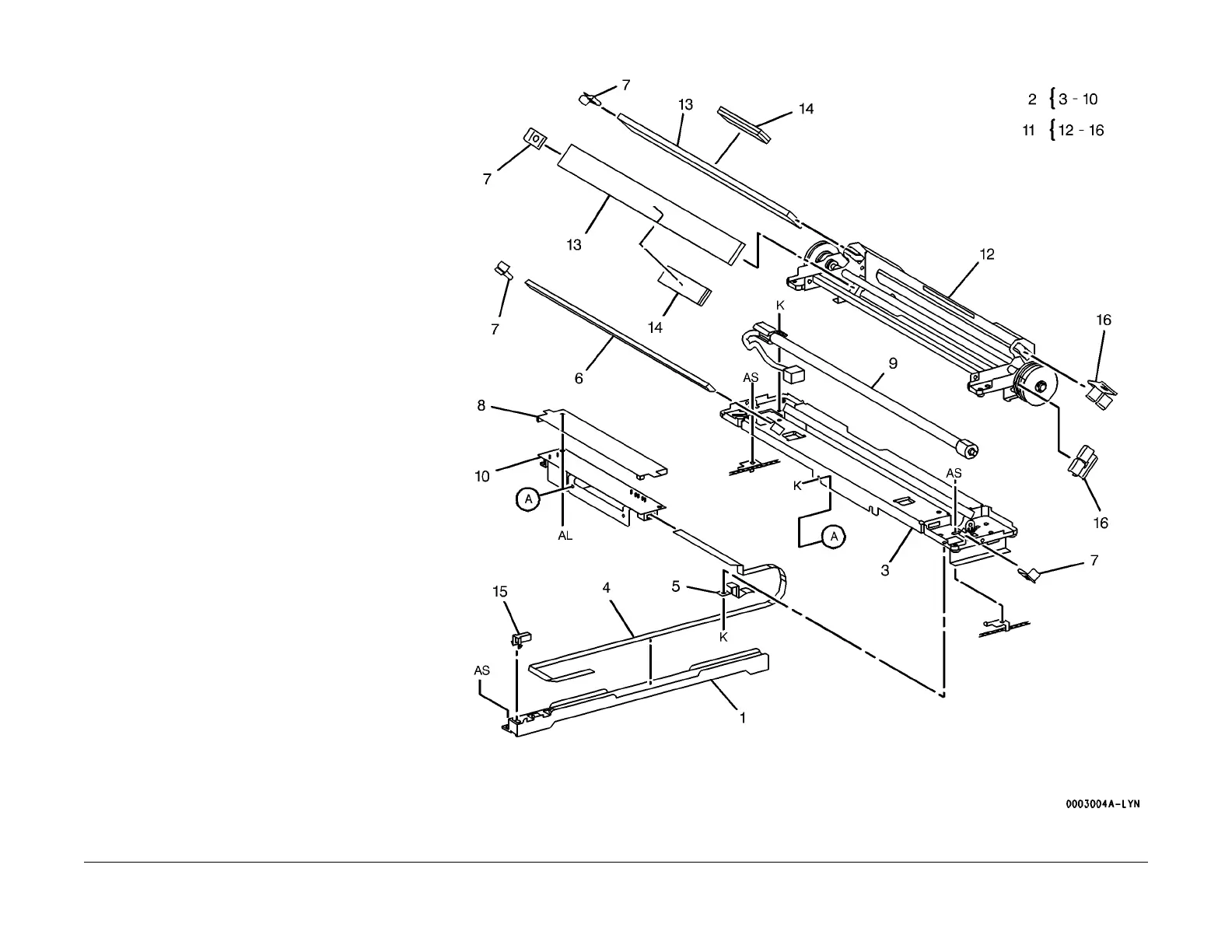

PL 3.4 Full/Half Rate Carriage
Item Part Description
1 – Harness Guide (Not Spared)
2 041K94210 Full Rate Carriage Assembly
3 – Full Rate Carriage (P/O PL 3.4
It
em
2)
4 117E15970 Lamp Wire Harness (REP 3.4.2 )
5 – Guide (P/O PL 3.4 Item 2)
6 062E98370 No.1 Mirror
7 019E50400 Clip (Single)
8 118E12090 Insulator
9 122E92000 Exposure Lamp (REP 3.4.1 )
10 105E08900 Lamp Ballast PWB
11 041K93792 Half Rate Carriage Assembly (REP
3.
4.1 )
12 – H
alf Rate Carriage (P/O PL 3.4
It
em
11)
13 062E98380 No.2, No.3 Mirror
14 – Dumper (P/O PL 3.4 Item 11)
15 – Clamp (Not Spared)
16 809E09110 Clip (Double)
– 809E15210 Clip (Single)
