Xerox DocuColor 12/DCCS50 User Manual

1/05
8d-72
DocuColor 12/DCCS50
REP 15.1.13, REP 15.1.14
Reissue
Finisher/Sorter

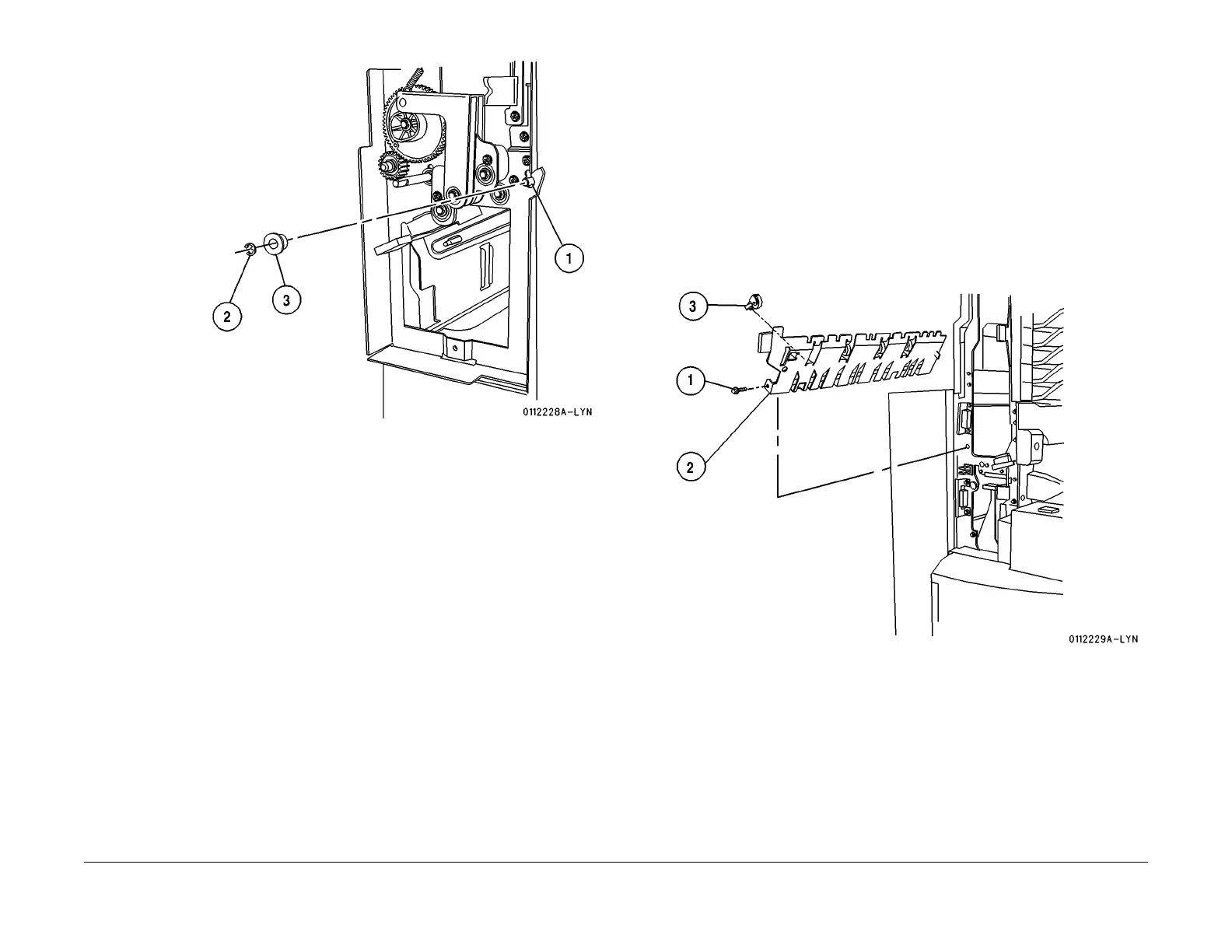

Figure 2 Remove the Decurler Exit Roll
Replacement
Reinstall the Decurler Exit Roll in the reverse order of disassembly.
REP 15.1.14 Entrance Upper Baffle and Pinch Roll
Parts List on PL 18.12
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the Machine Power Cord.
1. Remove the Mailbox Door Assembly (REP 15.3.
5).
2. Remove the Entrance Chute Upper Baffle and Pinch Roll (Figure 1).
1.
Remove the screw.
2. Remove the Entrance Upper Baffle.
3. Remove the appropriate Pinch Roll(s).
Figure 1 Remove the Entrance Chute Upper Baffle and Pinch Roll
Replacement
Reinstall the Entrance Chute Upper Baffle and Pinch Roll in the reverse order of disassembly.
