1/05
8d-145
DocuColor 12/DCCS50
PL 18.11
Finisher/Sorter
Reissue

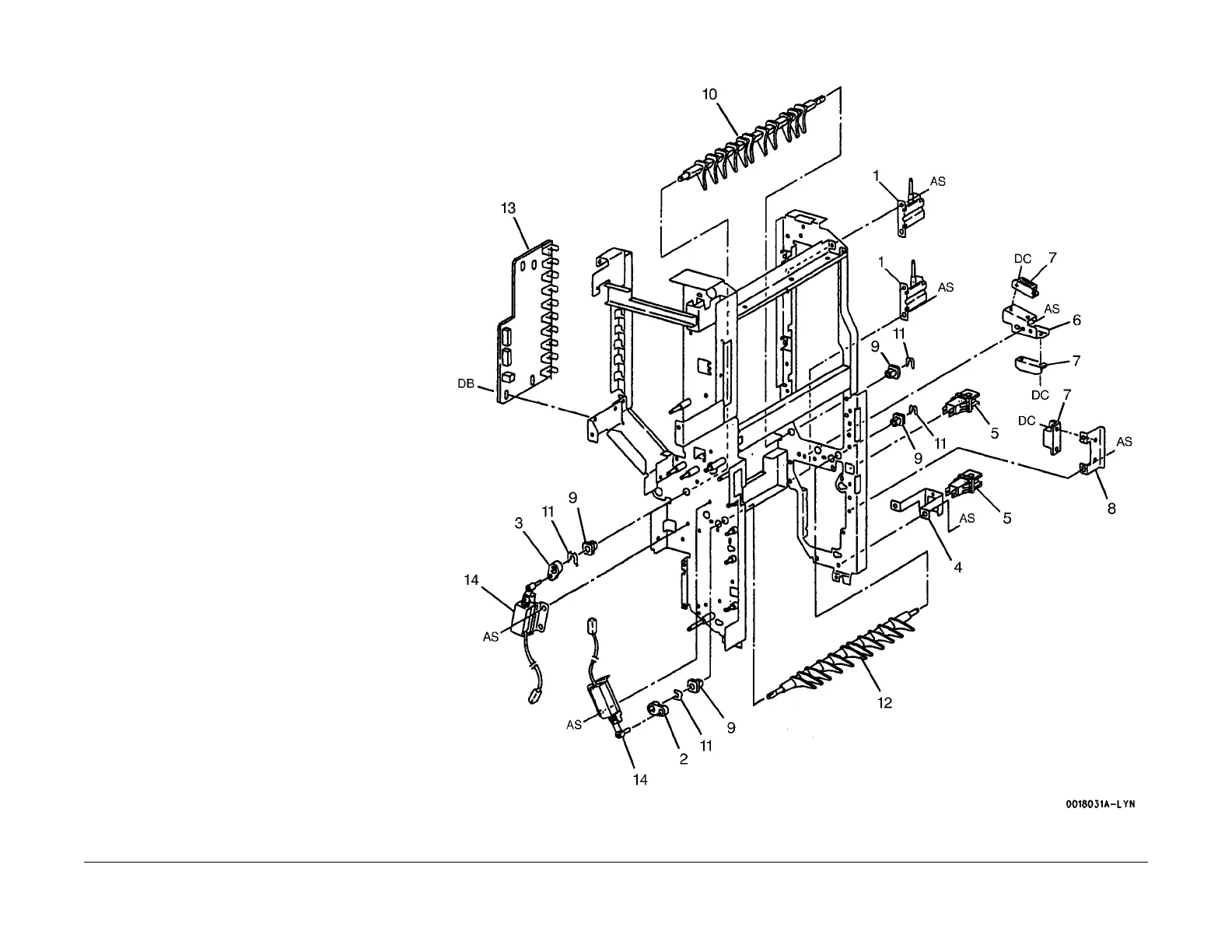

PL 18.11 Mailbox - Gate, PWB,
Interlock Switch
Item Part Description
1 – Hinge (Not Spared)
2 012E09860 Link (Finisher Gate)
3 012E09870 Link (SCT Gate)
4 – Switch Bracket (Not Spared)
5 110E97990 Stapler Door Interlock Switch, Mail-
box Door Interlock Switch
6 – Magnet Bracket (Not Spared)
7 121E87250 Magnet Catch (3 Places)
8 – Magnet Bracket (Not Spared)
9 – Bearing (Not Spared)
10 050E16500 Mailbox Gate
11 – E-Ring (Not Spared)
12 050E16510 Finisher Gate
13 160K67960 Mailbox PWB
14 121K14541 Mailbox Solenoid, Finisher Gate
Solenoid
