Xerox DocuColor 12/DCCS50

1/05
5-306
DocuColor 12/DCCS50
PL 11.2
Reissue
Parts Lists

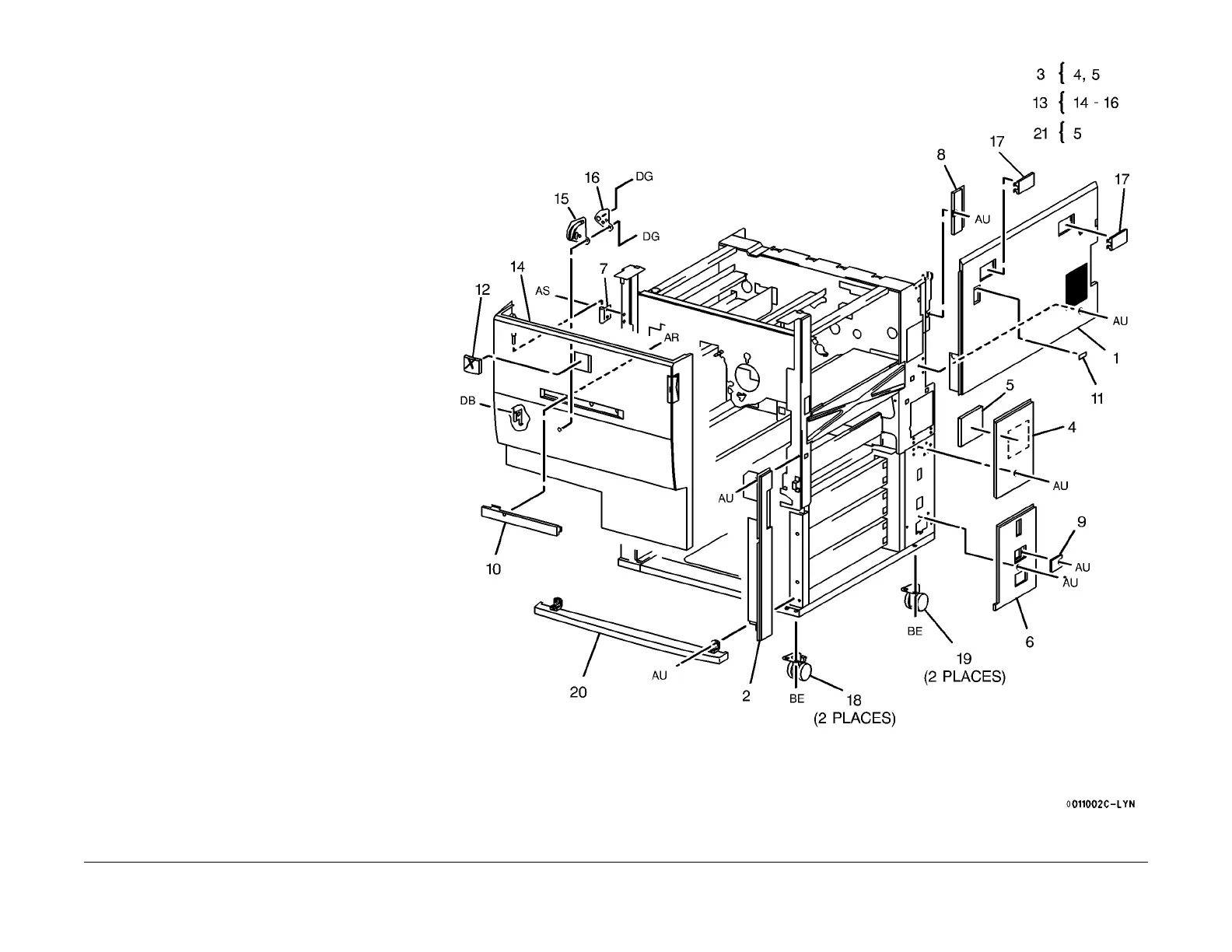

PL 11.2 Front/Right Cover
Item Part Description
1 802K06232 Right Upper Cover
2 048E60750 Right Lower Front Cover
3 048K77462 Filter Unit Cover and Seal Assem-
bly
4 048E60741 Filter Unit Cover
5 – Seal (P/O PL 11.2 Item 3)
6 048E60762 Power Chassis Cover
7 – Hinge (Not Spared)
8 048E60670 Blind Cover (PSW)
9 048E60690 Blind Cover (AC Out)
10 891E75721 Name Plate (DC12)
– 892E02000 Name Plate (DCCS50)
11 – Label (Not Spared)
12 891E75951 Logo Plate
13 048K69818 Front Door Assembly
14 – Front Door (P/O PL 11.2 Item 13)
15 – Block (P/O PL 11.2 Item 13)
16 – Plate (P/O PL 11.2 Item 13)
17 – Blind Cover (Not Spared)
18 017E93753 Caster (Front) (Locking)
19 017E93743 Caster (Rear) (Unlocking)
20 802E61690 Front Lower Cover
21 600K82870 Cover Seal Kit (W/TAG P15)
