Xerox DocuColor 12/DCCS50

1/05
5-257
DocuColor 12/DCCS50
PL 2.24
Parts Lists
Reissue

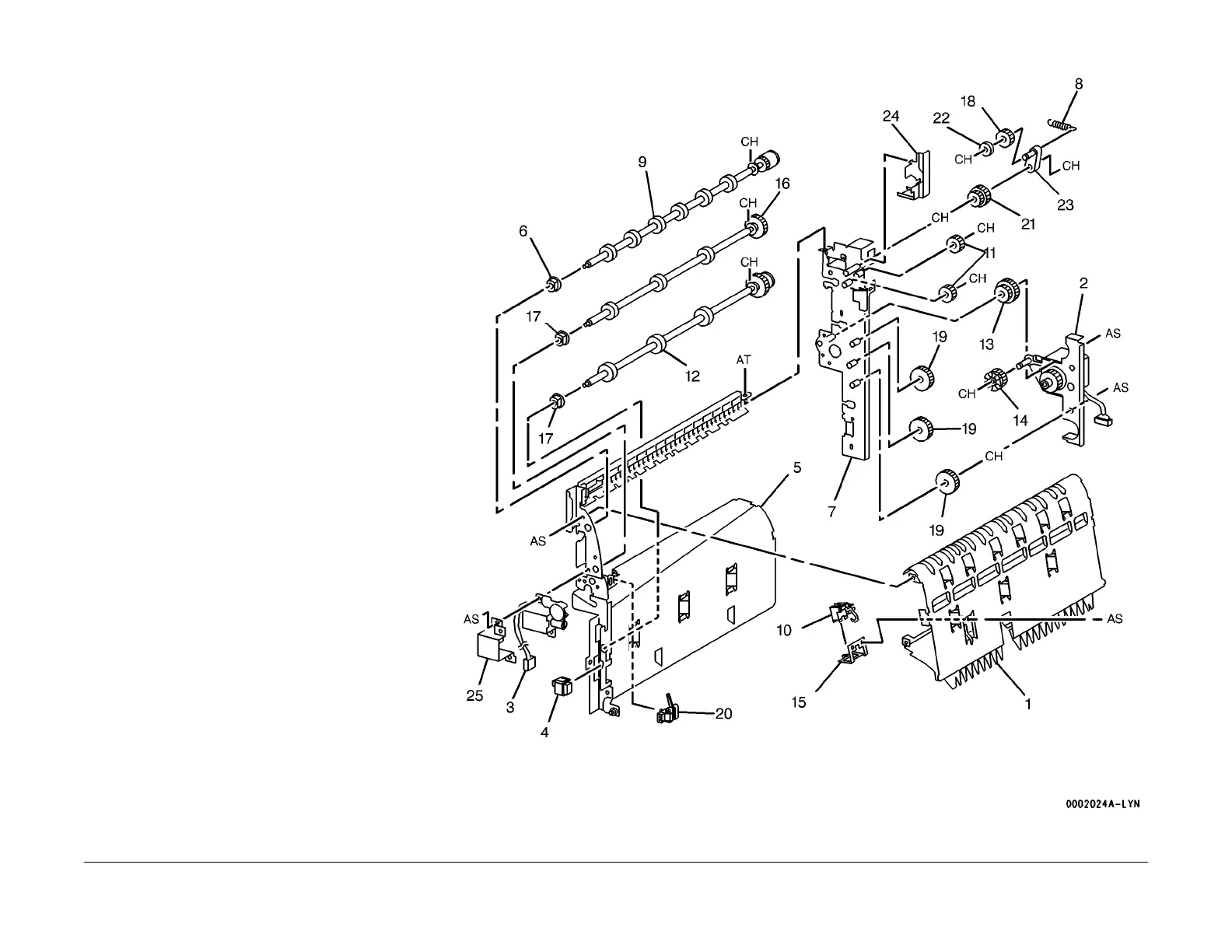

PL 2.24 Inverter 1 Component
Item Part Description
1 054K10303 Inverter 1 Upper Chute
2 127K21661 Inverter Motor (REP 2.24.1 )
3 121K16372 Release Solenoid (REP 2.24.2 )
4 110E93440 Inverter Cover Switch
5 – Frame (P/O PL 2.23 Item 1)
6 – Bearing (P/O PL 2.23 Item 1)
7 001K56820 Rear Frame
8 009E84220 Spring
9 059K09022 Inverter Roll (Upper)
10 130K93220 Inverter Path Sensor
11 007E50130 Gear (14)
12 059K09030 Inverter Roll (Duplex)
13 007E51630 Gear (25/30)
14 007E51641 Gear
15 – Bracket (P/O PL 2.23 Item 1)
16 059K09040 Inverter Roll (Lower)
17 – Bearing (P/O PL 2.23 Item 1)
18 007K84601 Gear
19 007E91170 Gear (27)
20 130K57810 Duplex In Sensor
21 007E50140 Gear (15/20)
22 059E92850 Roll
23 011K94050 Lever
24 – Cover (P/O PL 2.23 Item 1)
25 – Solenoid Cover (P/O PL 2.23 Item
1)
