DocuColor 12/DCCS50
Compiler/Tamper Functional Description
Reissue
Principles of Operation
Compiler/Tamper Functional Description
The Compiler arranges paper into sets.
1. Tamper Motor
Drives the paper stack Tamper.
2. Tamper Home Sensor
Monitors the position of the Tamper (Figure 1
).

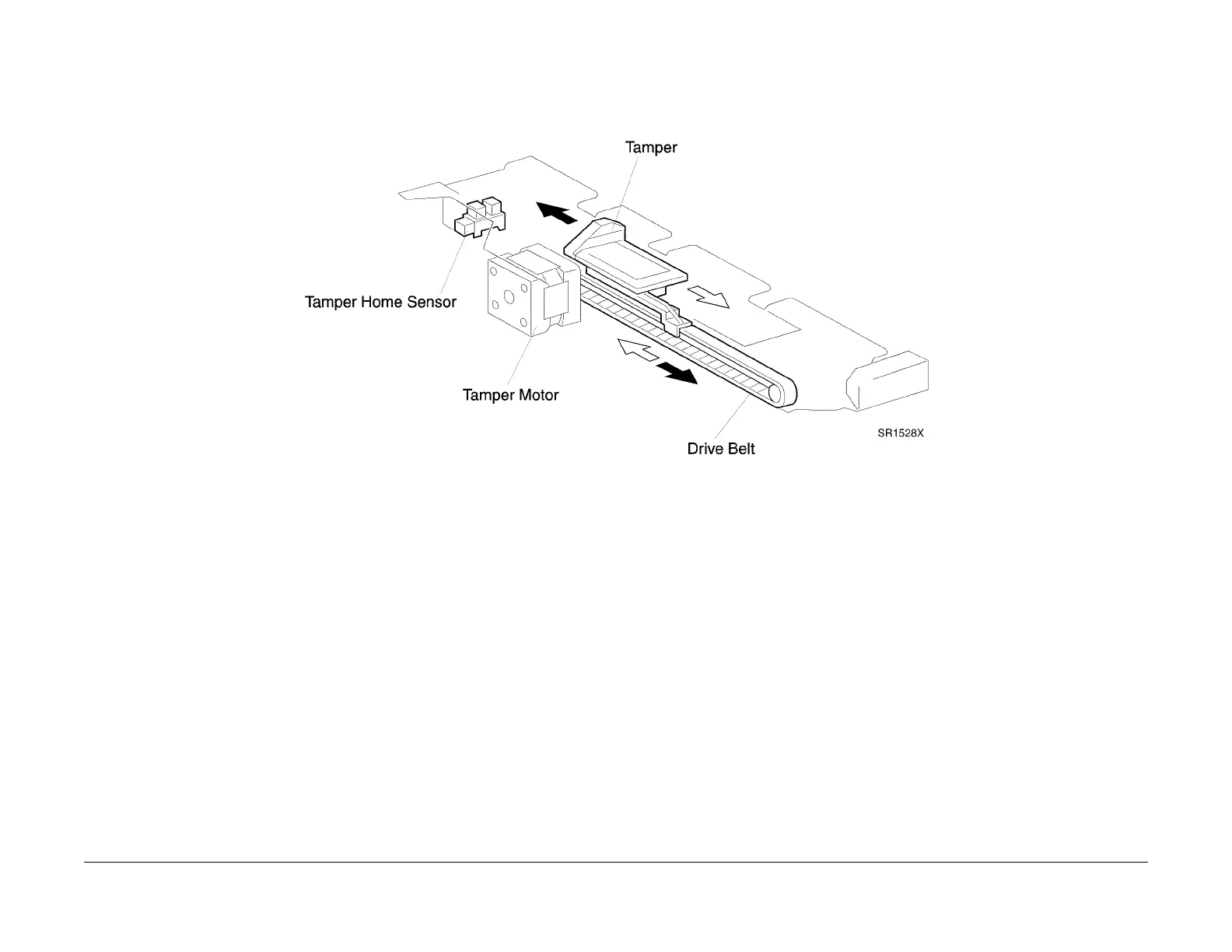

Figure 1 Tamper Assembly
3. Compiler Tray Solenoid
Tilts the Compiler Bin when the paper stack reaches 25 sheets (Figure 2
).
