1/05
8a-36
DocuColor 12/DCCS50
PL 15.10
Reissue
High Capacity Feeder

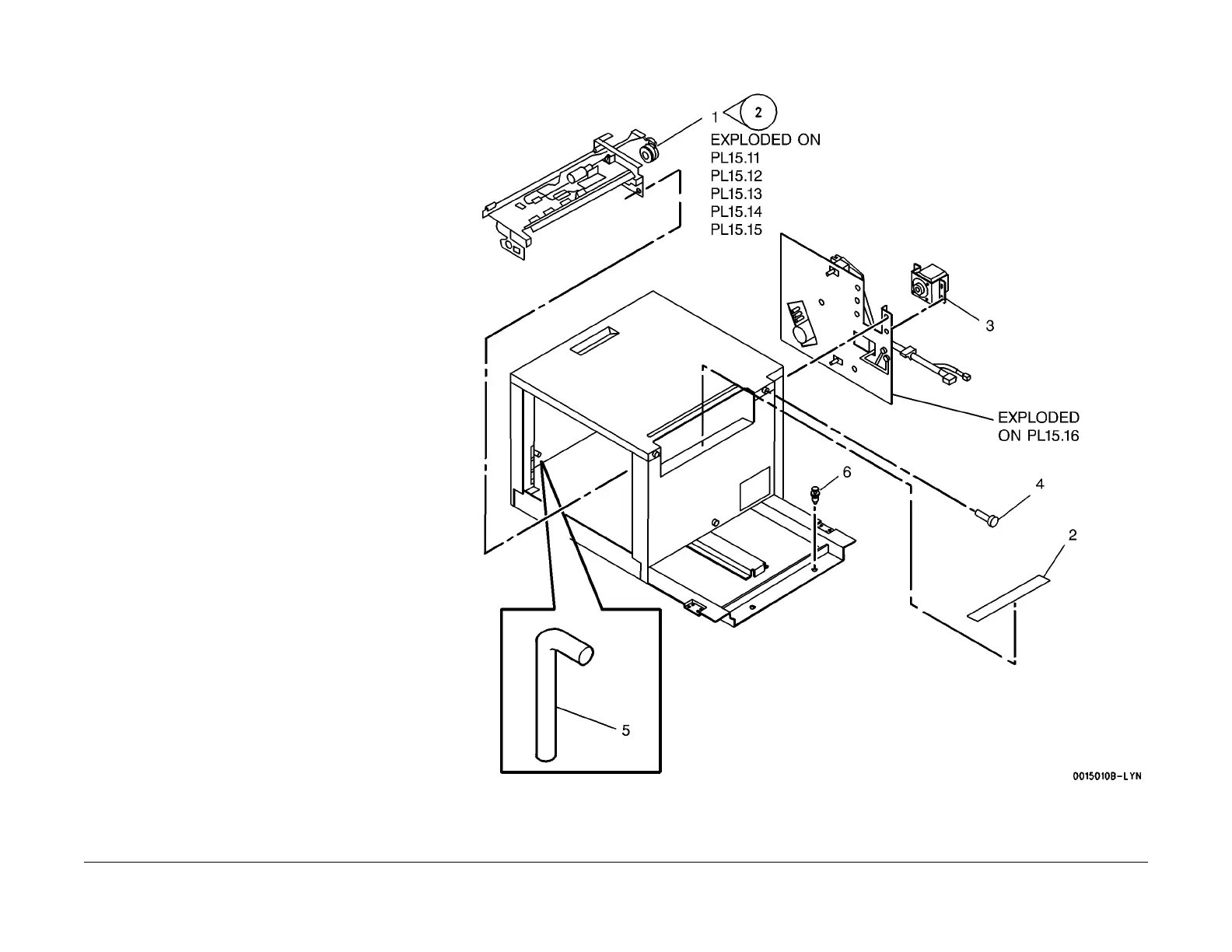

PL 15.10 Paper Feeder Assembly:
Part 1 OF 6
Item Part Description
1 022K78881 HCF Feeder Assembly (W/TAG
HCF2) (R
EP 2.8.27)
– 604K22210 HFC Feeder Assmebly Kit (W/TAG
6)
2 892E26370 Paper Jam Instruction Label (REP
2.
8.37)
3 127K346
70 HCF Feed Motor
4 004E11220 Bumper
5 – Pin Lock (Not Spared)
6 003E28840 Latch
