DocuColor 12/DCCS50
PL 12.10
Parts Lists
Reissue

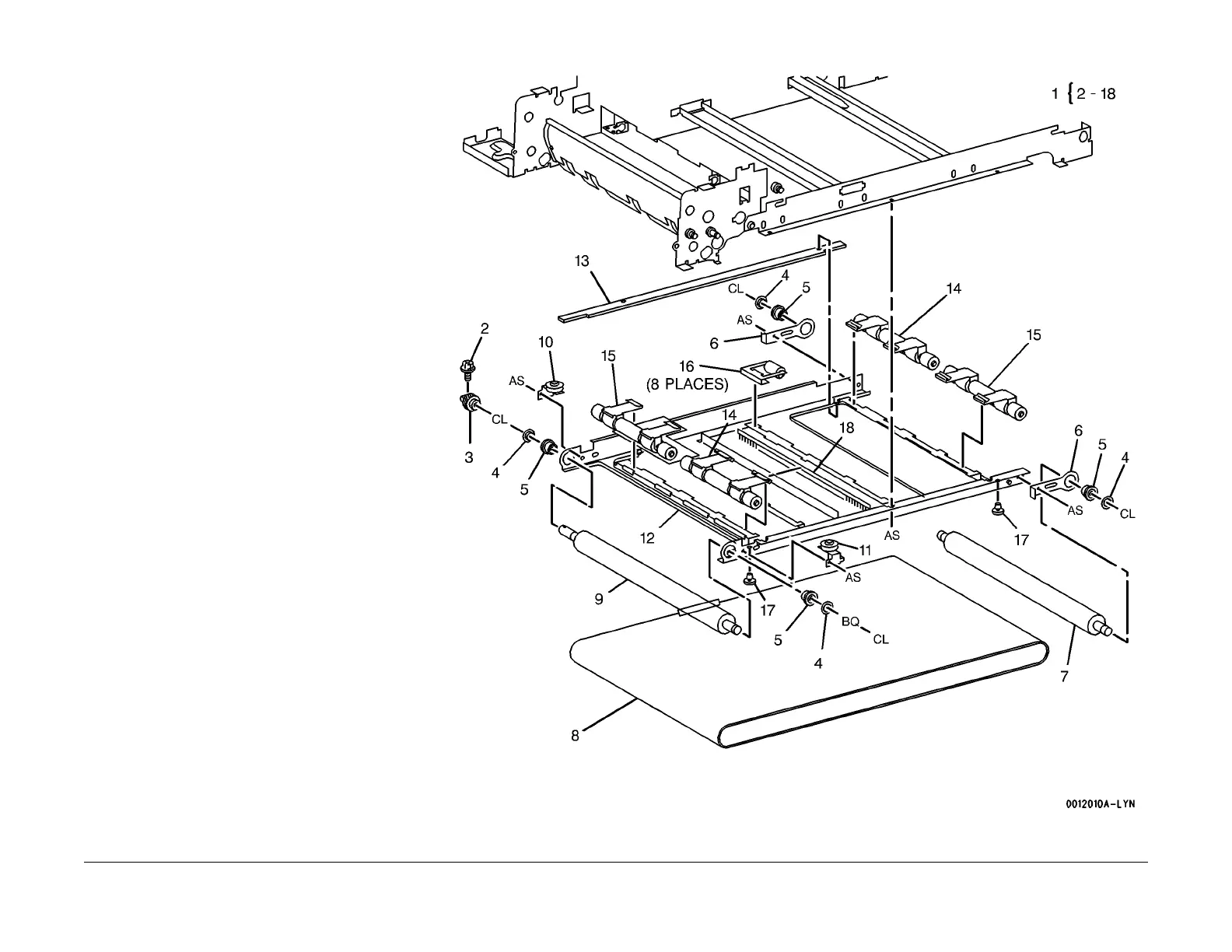

PL 12.10 Document Transport, Platen
Belt
Item Part Description
1 059K11870 Document Transport Assembly
2 – Self Lock Screw (P/O PL 12.10
Item
1)
3 007E83141 Gear
4 – Collar (P/O PL 12.10 Item 1)
5 013E80970 Bearing
6 049E91070 Tension Plate
7 022K39710 Idler Roll
8 023E15690 Platen Belt (REP 12.10.1 )
9 022K39700 Drive Roll
10 – Belt Guide (P/O PL 12.10 Item 1)
11 – Belt Guide (P/O PL 12.10 Item 1)
12 – Transport Frame (P/O PL 12.10
It
em
1)
13 – Deflector (P/O PL 12.10 Item 1)
14 – Pinch Roll (P/O PL 12.10 Item 1)
15 – Pinch Roll (P/O PL 12.10 Item 1)
16 059K13440 Pinch Roll
17 – Damper (P/O PL 12.10 Item 1)
18 – Eliminator (P/O PL 12.10 Item 1)
