1/05
8d-155
DocuColor 12/DCCS50
PL 18.21
Finisher/Sorter
Reissue

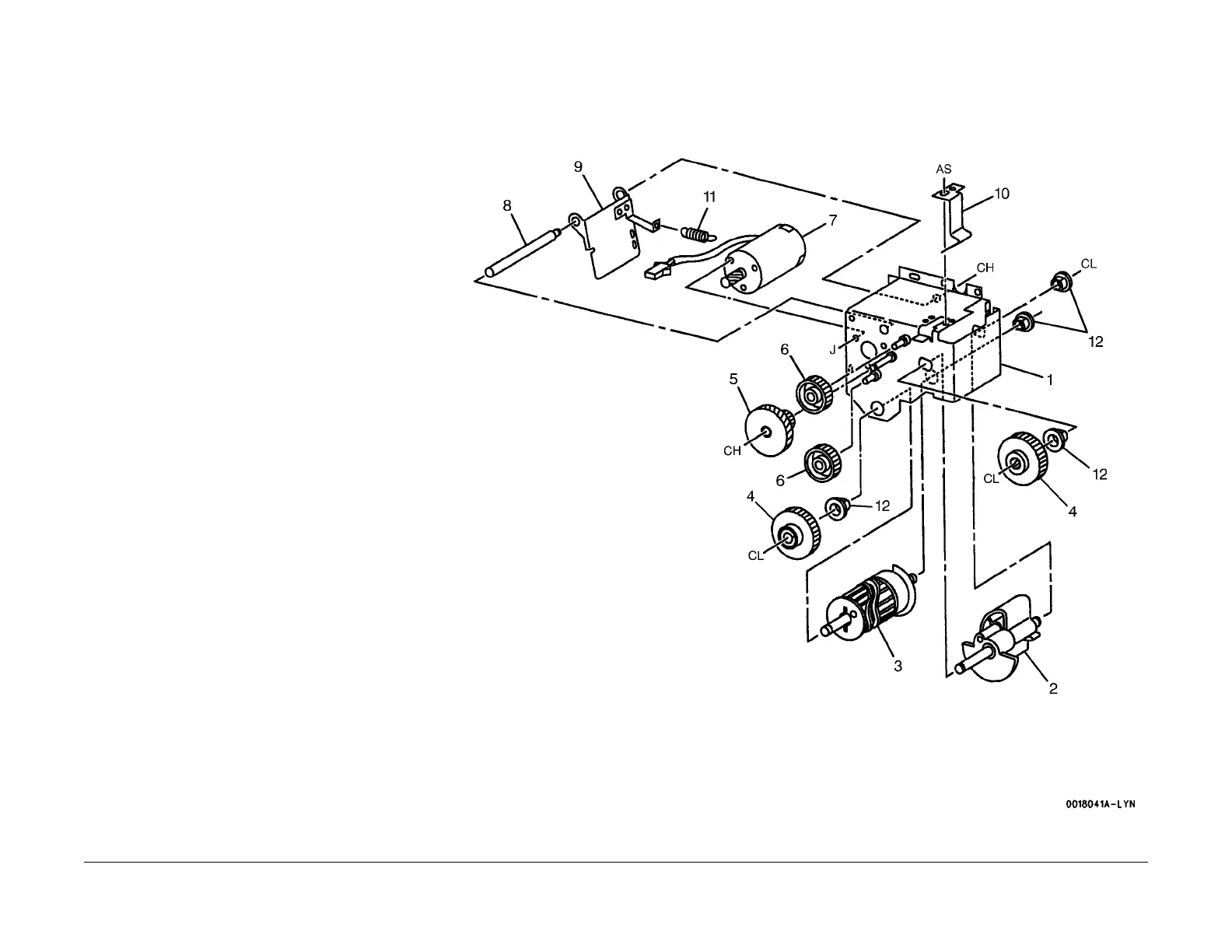

PL 18.21 Eject And Offset
Components
Item Part Description
1 – Eject Bracket Assembly (Not
Spared)
(REP 15.2.19)
2 008K91360 Eject Clamp Cam
3 008K91370 Offset Cam
4 007K83910 One Way Gear
5 007E39910 Gear
6 407W07626 Gear
7 127K16360 Eject Clamp/Offset Motor (REP
15.
2.33)
8 – S
haft (Not Spared)
9 012K93390 Clamp Up Lever
10 809E03071 Plate Spring
11 809E03080 Spring
12 413W77559 Bearing
