1/05
4-19
DocuColor 12/DCCS50
REP 2.5.1
Repairs and Adjustments
Reissue
REP 2.5.1 Tray 1/2/3/4 Feed/Nudger Roll Assembly
Parts List on PL 2.5
Removal
NOTE: Replace the Feed/Nudger Roll Assembly and the Retard Roll at the same time.
NOTE: After replacing the Feed Nudger Roll Assembly, reset the HFSI counter.
1. Tray 1: DC135(008-801)
2. Tray 2: DC135(008-802)
3. Tray 3: DC135(008-803)
4. Tray 4: DC135(008-804)
NOTE: This page describes how to remove the Tray 1 Feed/Nudger Roll Assembly.
WARNING
Turn power off and disconnect the power plug.
1. Pull out Tray 1.
2. Open the Left Lower Cover.
3. Pull out the Tray 1 Feeder (Figure 1
).
1. Remove the screw.
2. Pull out the Tray 1 Feeder.

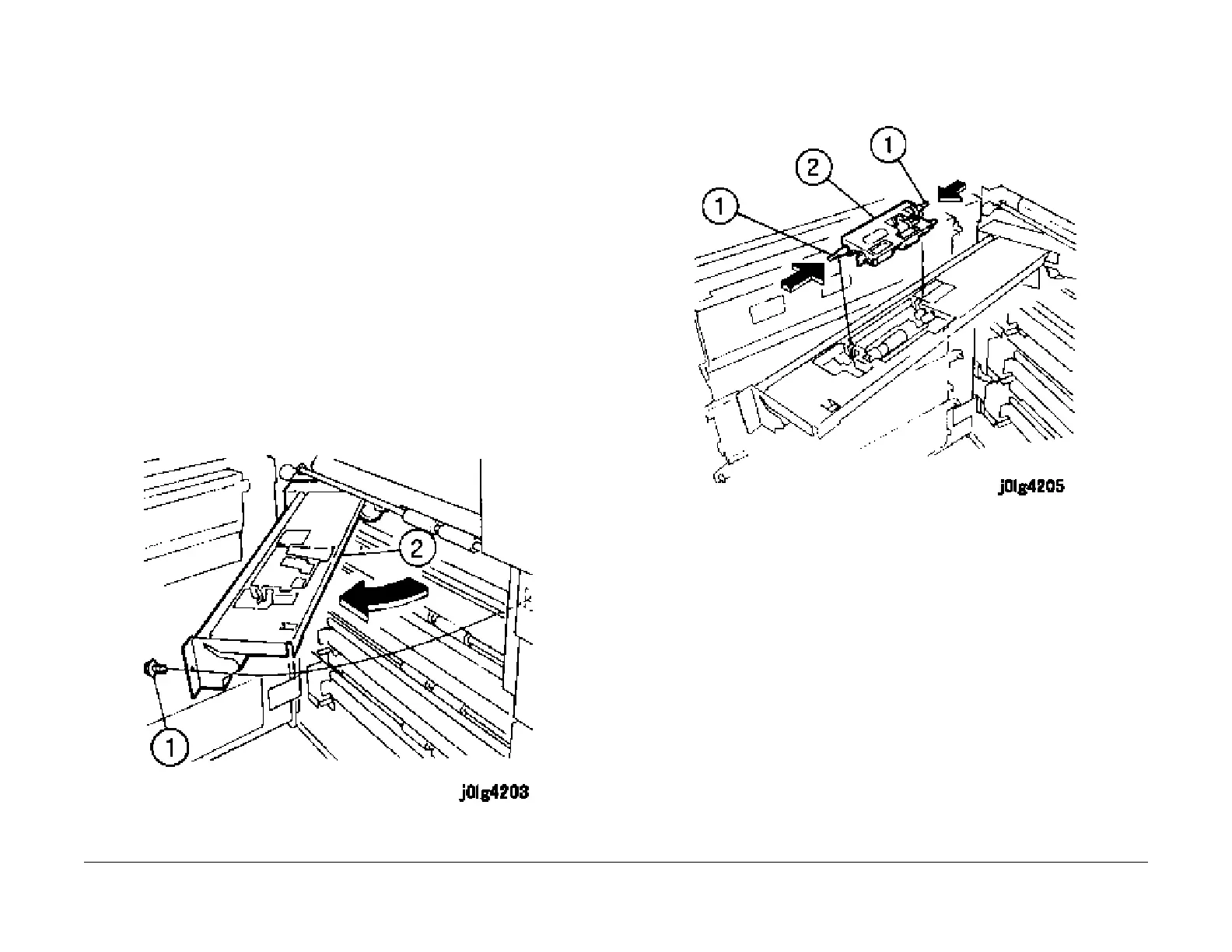

Figure 1 Pulling out the Tray 1 Feeder
4. Remove the Feed/Nudger Roll Assembly (Figure 2).
1. Push the pins on both sides.
2. Remove the Feed/Nudger Roll Assembly.
Figure 2 Removing the Feed/Nudger Roll Assembly
Installation
1. Reinstall the parts in the reverse order of disassembly.
To Next Page
