1/05
4-87
DocuColor 12/DCCS50
REP 6.6.1
Repairs and Adjustments
Reissue
REP 6.6.1 Development Housing
Parts List on PL 6.6
Removal
NOTE: After replacing the Development Housing, reset the HFSI counter. Enter the dC135
HFSI Counters Diag. Screen:
a. Yellow: location NVM 009-851
b. Magenta: location NVM 009-852
c. Cyan: location NVM 009-853
d. Black: location NVM 009-850
WARNING
Turn power off and disconnect the power plug.
WARNING
Do not put the Developer or Developer Unit into a fire. If the Developer or Developer Unit
is placed into a fire, it may explode and cause injury.
1. Remove the Right Upper Cover (PL 11.
2).
2. Disconnect the connectors (Figure 1).
1.
Loosen the screws (2).
2. Disconnect the connectors (3).
3. Release the clamps (2) and remove the wire.
4. Pull out the connector from the hole.

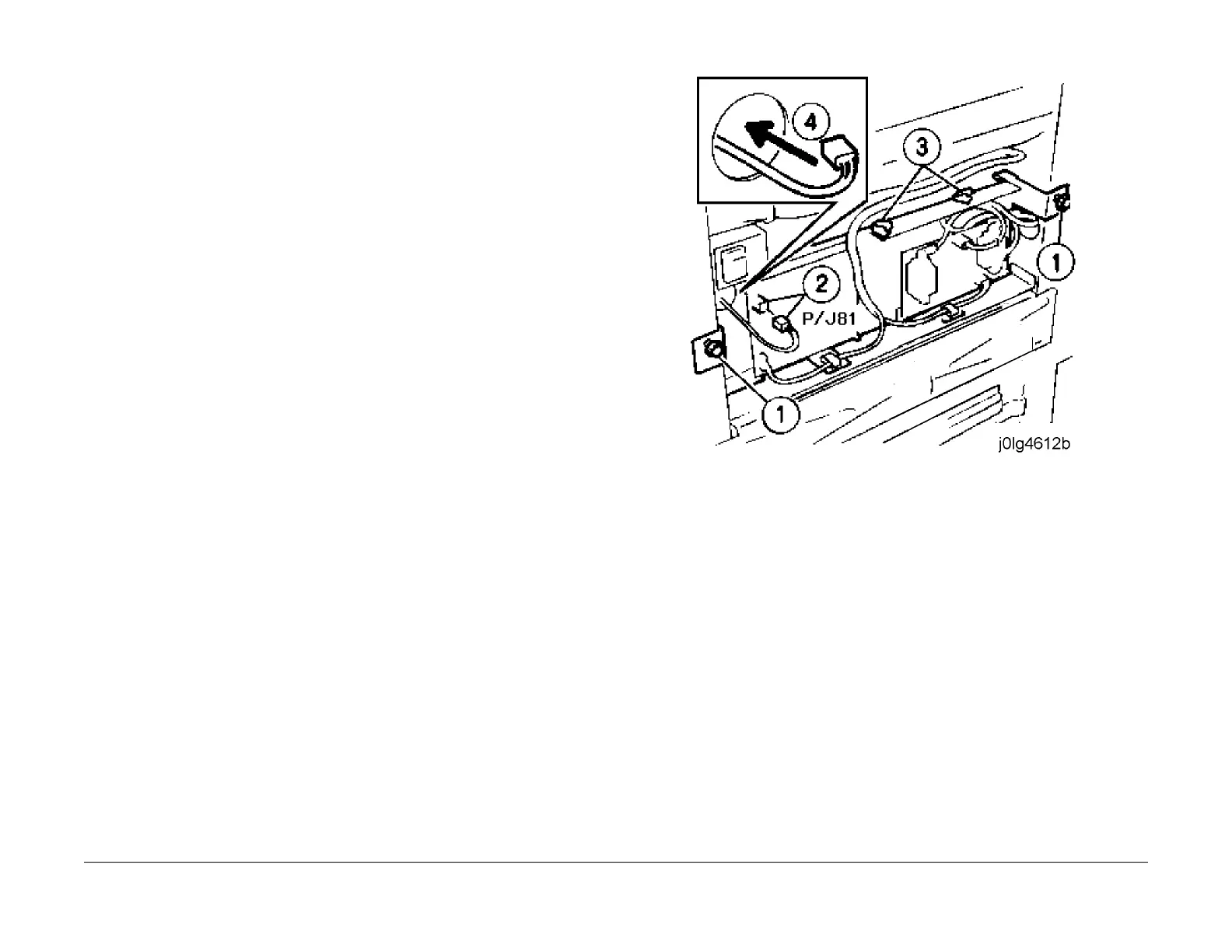

Figure 1 Disconnect the Connectors
3. Hook the bracket hook s (F
igure 2).
1.
Hook the hooks (2).
