DocuColor 12/DCCS50
REP 9.2.3
Repairs and Adjustments
Reissue
REP 9.2.3 Half Tone PWB
Parts List on PL 9.2
Removal
WARNING
Turn power off and disconnect the power plug.
1. Open/close the IIT (REP 3
.1.2).
2. Remove the Half Tone PWB Cover (Figu
re 1).
1. Remove the screws (2).
2. Open the Half Tone PWB Cover.

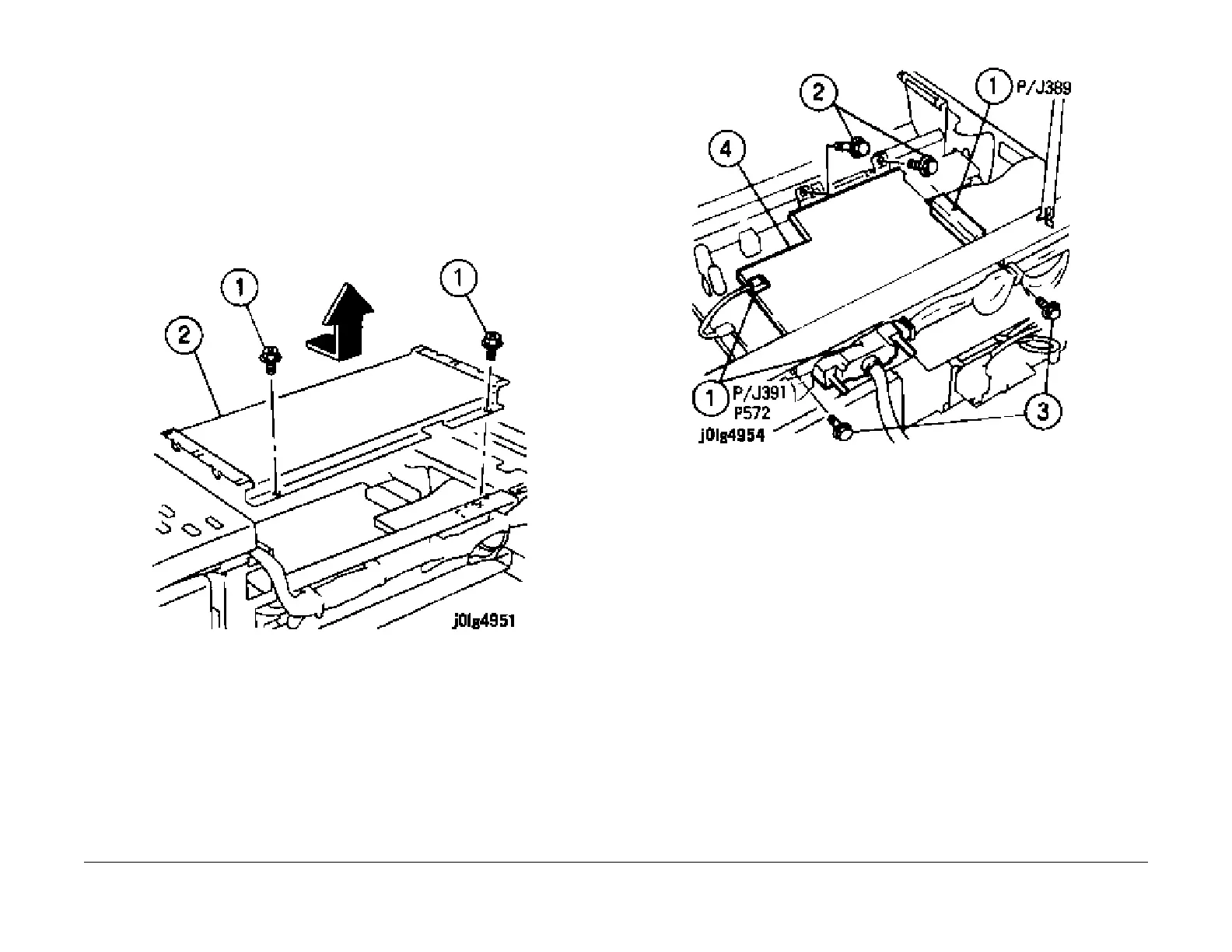

Figure 1 Remove the Half Tone PWB Cover
3. Remove the VSEL BT PWB (Figu
re 2).
1. Disconnect the connectors (3).
2. Remove the screws (2).
3. Remove the screws (2).
4. Remove the VSEL BT PWB.
Figure 2 Remove the VSEL BT PWB
4. Disconnect the connectors (F
igur
e 3).
1. Disconnect the connectors (5).
To Next Page
