Xerox DocuColor 12/DCCS50 User Manual

1/05
5-298
DocuColor 12/DCCS50
PL 9.2
Reissue
Parts Lists

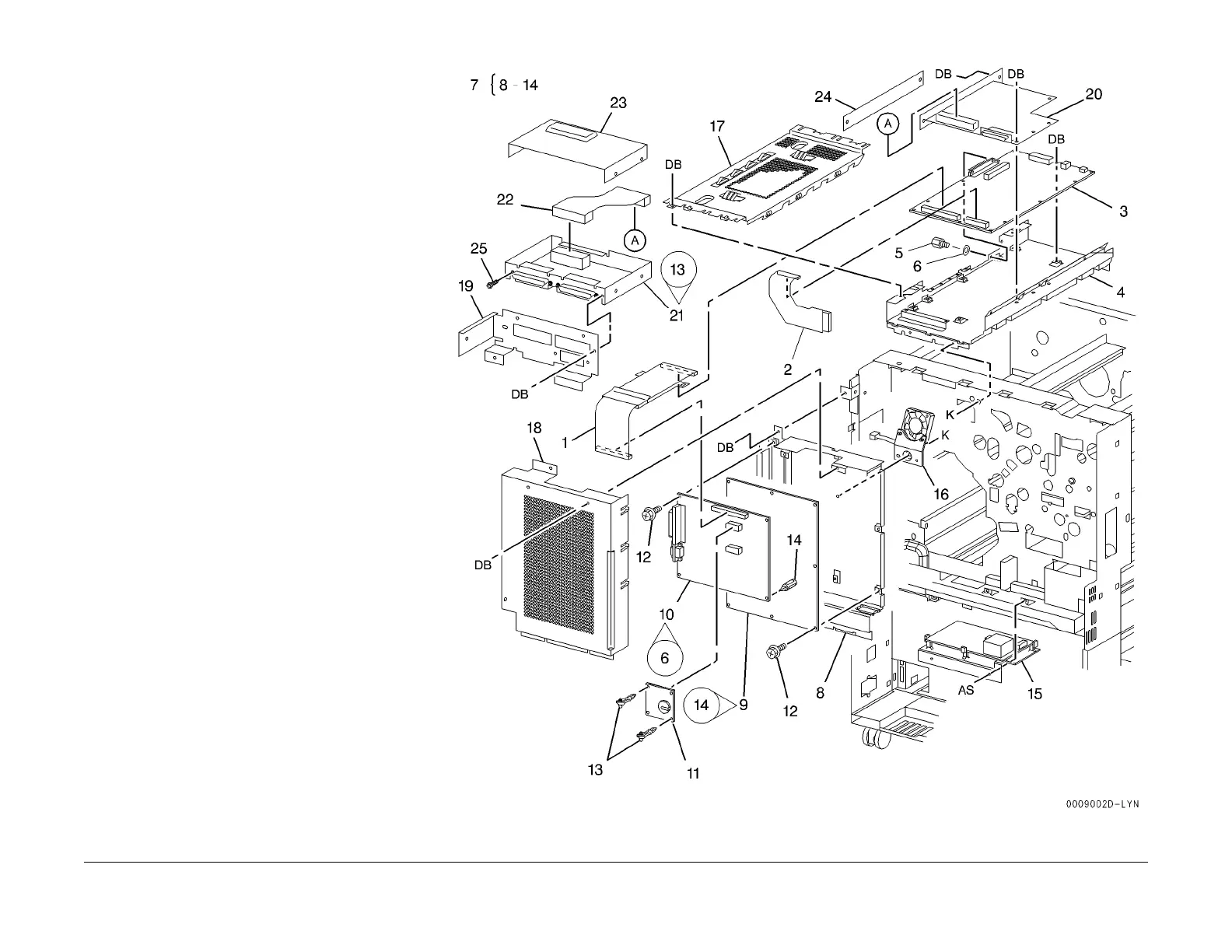

PL 9.2 IOT Top/Rear
Item Part Description
1 162K41511 Flat Cable (FPC-IOT)
2 162K41521 Flat Cable (FPC-ROS) (W/TAG
P42)
3 160K74412 Half Tone PWB (W/TAG P32)
(RE
P 9.
2.3 )
4 – PWB Bracket (Not Spared)
5 – Screw (Not Spared)
6 – Washer (Not Spared)
7 – IOT Control PWB Chassis Assem-
bly (Not Spared) (REP 9.2.1)
8 – PWB Chassis (P/O PL 9.2 Item 7)
9 160K61620 IOT Drive PWB (W/TAG P14)
(RE
P 9.
2.2)
10 160K61611 IOT CPU PWB (W/TAG P6)
11 160K47911 IOT NVM PWB (REF: PL 9.2) (Rep
9.
2.2 )
12 – S
crew (P/O PL 9.2 Item 7)
13 – PWB Support (P/O PL 9.2 Item 7)
14 – Spacer (P/O PL 9.2 Item 7)
15 105K14914 2nd BTR HVPS
16 127K21750 Rotary Fan
17 048K76941 Half Tone PWB Cover
18 – IOT Control PWB Cover (Not
Sp
ar
ed)
19 – Extension Plate (Not Spared)
20 160K48688 VSEL Base TTL PWB
21 160K48704 VSEL Extension PWB (W/TAG
P13)
22 162K42260 Flat Cable (J388/J389)
23 – Cover (Not Spared)
24 – Blind Cover (Not Spared)
25 026E56431 VSEL Screw
