Xerox DocuColor 12/DCCS50 User Manual

1/05
6-144
DocuColor 12/DCCS50
Installation Space Requirements
Reissue
General Procedures

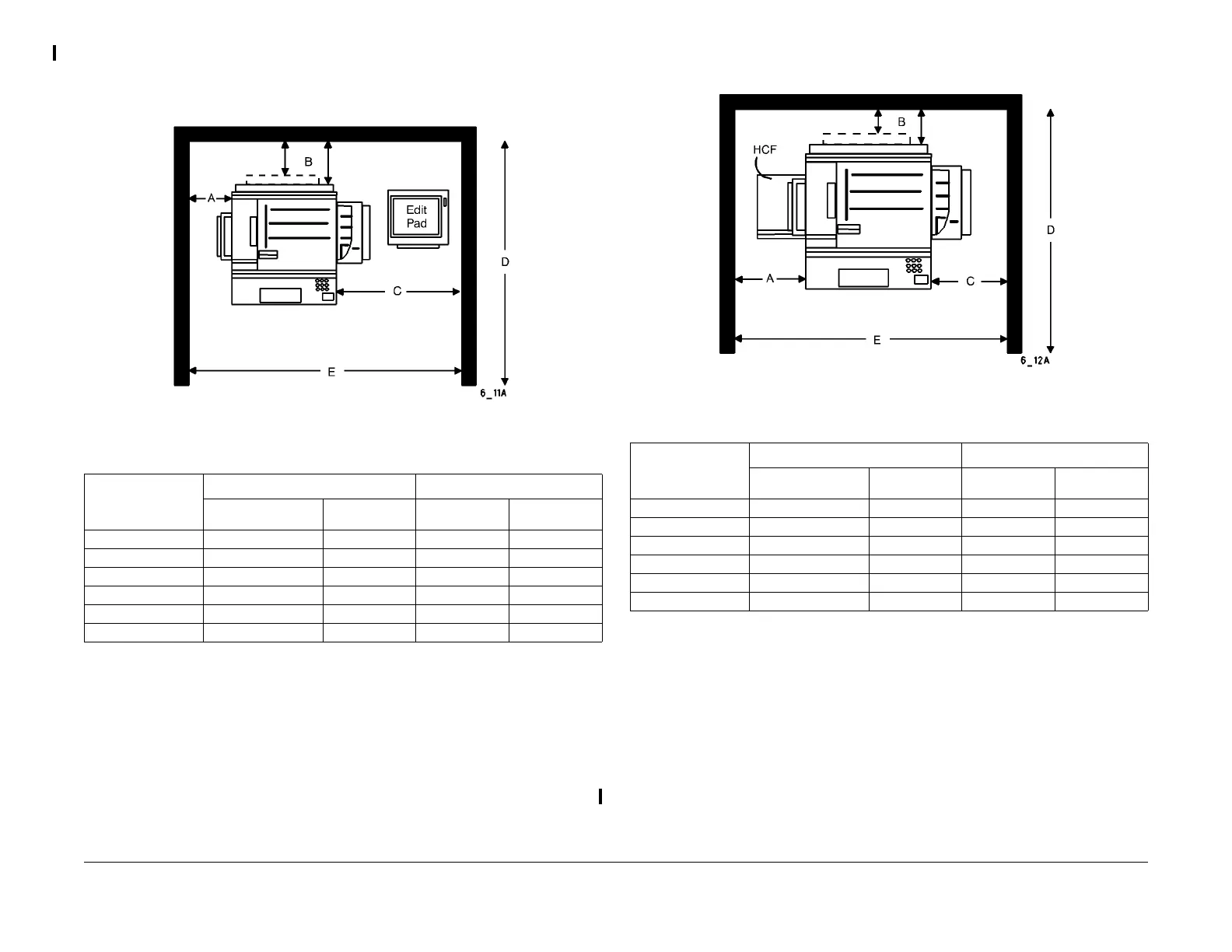

Installation Space Requirements with Edit Pad (Right Side)
(Figure 2)
Figure 2 Installation Space Requirements with Edit Pad (Right Side)
¹ Measured from the rear of processor if IDFE is not present.
² 106.5 in. (2705mm) if installed in hallway.
³ 110.5 in. (2807mm) if installed in hallway.
* 86.5 in. (2200mm) if installed in hallway.
** 90.5 in. (2300mm) if installed in hallway.
Installation Space Requirements with HCF
Figure 3 Installation Space Requirements with HCF
¹ Measured from the rear of processor if IDFE is not present.
² 106.5 in. (2705mm) if installed in hallway.
³ 110.5 in. (2807mm) if installed in hallway.
* 86.5 in. (2200mm) if installed in hallway.
** 90.5 in. (2300mm) if installed in hallway.
Installation Space Requirements with HCF and Edit Pad (Right Side)
(Figure 4)
Table 2 Installation Space Requirements with Edit Pad
Dimensions
Fixed Space Requirements Movable Space Requirements
in. mm in. mm
A 21 533 21 533
B ¹ 24 610 4 100
C 55 1400 55 1400
D w/o IDFE 91.5 ² 2324 ² 71.5 * 1816 *
D w/ IDFE 95.5 ³ 2426 ² 75.5 ** 1918 **
E 100.5 2555 100.5 2555
Table 3 Installation Space Requirements with HCF
Dimensions
Fixed Space Requirements Movable Space Requirements
in. mm in. mm
A 51 1300 51 1300
B ¹ 24 610 4 100
C 23 585 23 585
D w/o IDFE 91.5 ² 2324 ² 71.5 * 1816 *
D w/ IDFE 95.5 ³ 2426 ² 75.5 ** 1918 **
E 98.5 2500 98.5 2500
