Xerox DocuColor 12/DCCS50 User Manual

1/05
8d-101
DocuColor 12/DCCS50
REP 15.2.24, REP 15.2.25
Finisher/Sorter
Reissue
Replacement
1. Reinstall the Upper Exit Chute Assembly into the Finisher frame. Use the screws (4) to
secure the front and rear of the Upper Exit Chute Assembly.
2. Reinstall the finisher Interlock Switch Bracket to the front of the Finisher frame, and use
one
screw to secure the Bracket.
3. Reinstall the Eject Pinch Roll Shaft Assembly.
4. Reinstall the Exit Chute Assembly.
5. Reinstall the Compiler Cover Assembly.
6. Reinstall the Rear Lower Cover.
7. Reinstall the Stapler Cover Assembly.
REP 15.2.25 Exit Roll
Parts List on PL 18.14
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Remove the Stapler Cover Assembly (REP 15.3.
3).
3. Remove the Rear Lower Cover (REP 1
5.3.15).
4. Remove the Compiler Cover Assembly (REP 15.2.
22).
5. Remove the Eject Pinch Roll Shaft Assembly (REP 15.2.
23).
6. Remove the Upper Exit Chute Assembly (REP 15.2.
24).
7. Remove the Exit Roll (Figure
1).
1. Remove the E-ring securing the Paddle Shaft Drive Gear, that is located just below
the
Exit Shaft Pulley, and remove the Drive Gear.
2. Loosen the screws (2) that secure the Transport Motor Drive Belt Tension Assembly.
Push t
he idler pulley up to release the tension. Tighten the screws (2).
3. Remove the screw securing the Exit Shaft Pulley to the Shaft, and remove the Pulley.
4. Remove the E-ring securing the front and rear Exit Shaft bearings, and remove the
bearings.
5. Slide the Exit Roll out of the Finisher frame.

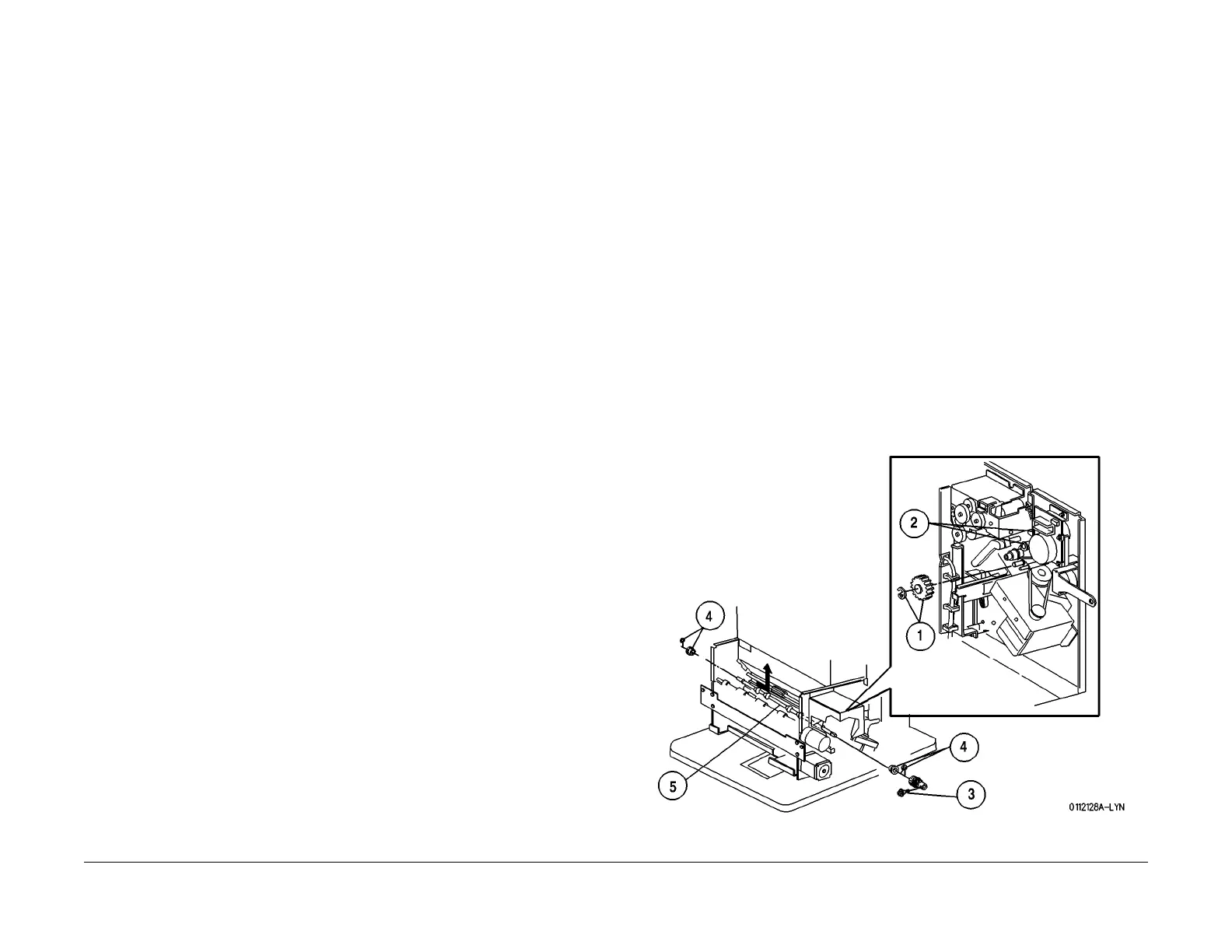

Figure 1 Remove the Exit Roll
