1/05
8a-29
DocuColor 12/DCCS50
ADJ 2.1
High Capacity Feeder
Reissue
ADJ 2.1 HCF Registration
Purpose
The purpose of this adjustment is to set HCF Side Edge Registration to within specification.
Check
1. Load HCF with 8.5X11/A4 long edge feed paper.
2. Make a 100% copy of Test Pattern 82P522 side A (USO) 82P521 side A (XL).
3. Registration should be 5.0 +/-1.1mm (Figu
re 1).

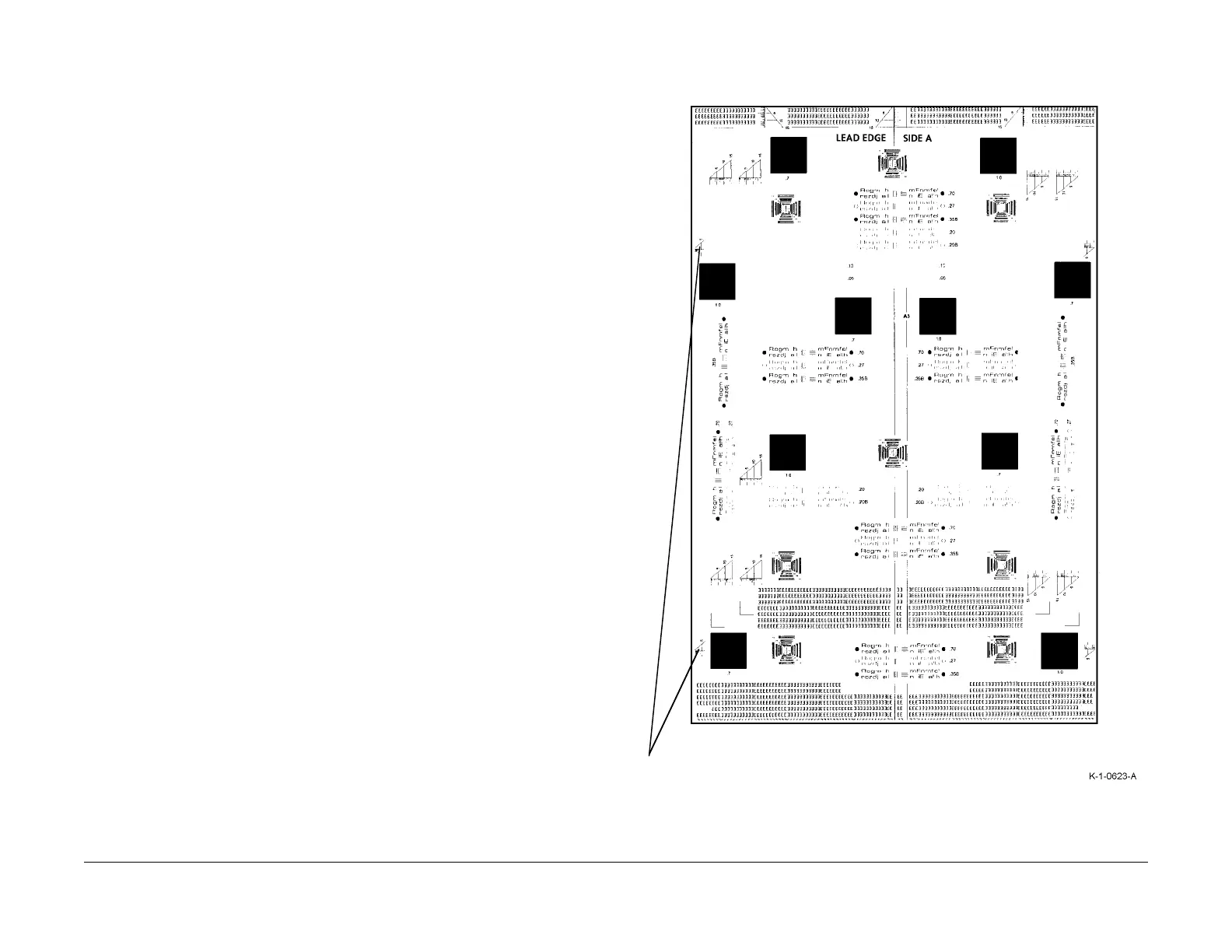

Figure 1 Checking the Registration
Side Registration 5.0 +/-1.1mm
