1/05
4-177
DocuColor 12/DCCS50
REP 13.5.2
Repairs and Adjustments
Reissue
REP 13.5.2 Bin Tray 1
Parts List on PL 13.5
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the following parts:
a. Stopper (PL 13.1)
b. Rear Cover (PL 13
.4)
c. Top Cover (PL 13
.4)
d. Left Cover (PL 13.4)
2.
Remove the spring (Figu
re 1).
1. Remove the spring.
2. Remove the belt from the pulley.

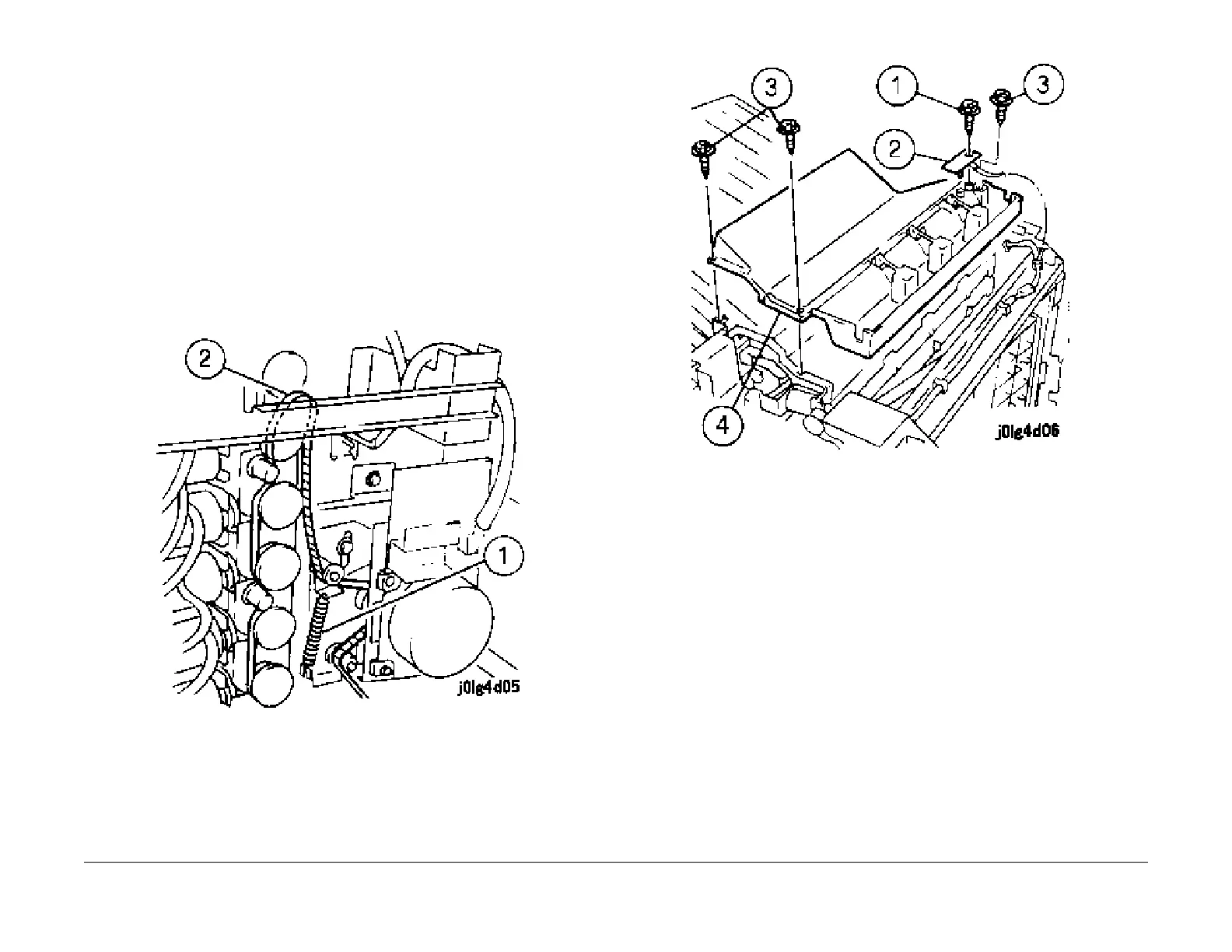

Figure 1 Remove the Spring
3. Remove the ACT Cover (Figur
e 2).
1. Remove the screw.
2. Remove the Vertical LED.
3. Remove the screws (3).
4. Remove the ACT Cover.
Figure 2 Remove the ACT Cover
4. Remove the Bin Tray Pawl from the gate (F
igure 3).
To Next Page
