DocuColor 12/DCCS50
PL 18.2
Reissue
Finisher/Sorter

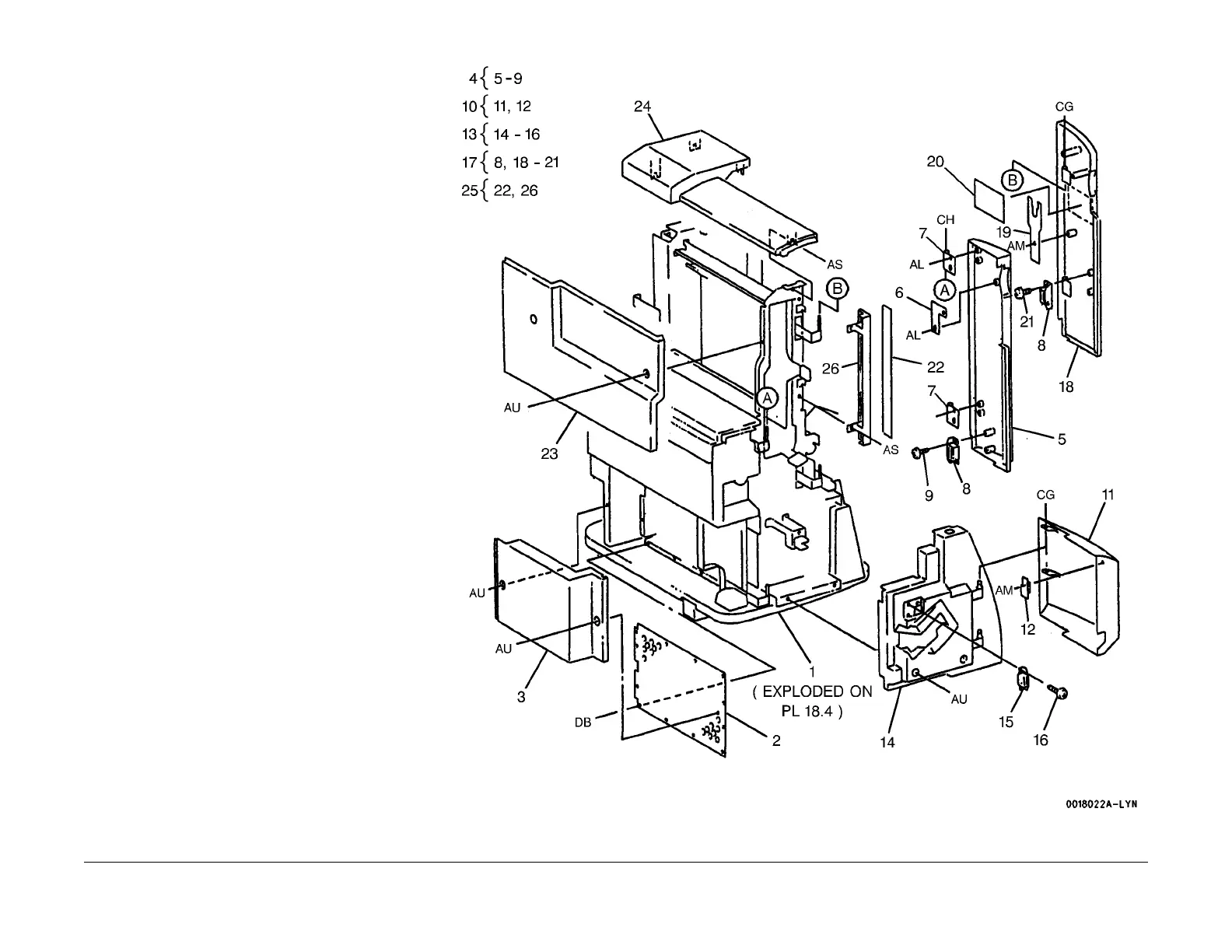

PL 18.2 Covers - Left, Front
Item Part Description
1 – Finisher (REF: PL 18.4) (Not
Spar
ed)
2 – Finisher PWB Cover (Not Spared)
(RE
P 15.
3.9)
3 802E13930 Left Lower Cover (REP 15.3.6)
4 048K77410 Decurler Door Assembly (REP
15.
3.4)
5 – D
ecurler Door (P/O PL 18.2 Item 4)
6 – Magnet Plate (P/O PL 18.2 Item 4)
7 – Hinge (P/O PL 18.2 Item 4)
8 121E90490 Magnet Catch
9 – Screw (P/O PL 18.2 Item 4)
10 802K14650 Stapler Door Assembly (REP
15.
3.2)
11 – S
tapler Cover (P/O PL 18.2 Item
10)
12 830E59990 Magnet Plate
13 048E65721 Stapler Cover Assembly (REP
15.
3.3)
14 – S
tapler Cover (P/O PL 18.2 Item
13)
15 121E84720 Magnet Catch
16 – Screw (P/O PL 18.2 Item 13)
17 802K14660 Mailbox Door Assembly (REP
15.
3.5)
18 – M
ailbox Door (P/O PL 18.2 Item
17)
19 – Wrench (P/O PL 18.2 Item 17)
20 892E13300 Label
21 – Screw (P/O PL 18.2 Item 17)
22 891E73451 Label
23 048E66520 Left Upper Cover (REP 15.3.10)
24 048K77971 Top Cover (REP 15.3.11)
25 802K05082 Panel Assembly
26 048E66560 Panel
