DocuColor 12/DCCS50

PL 7.6

Reissue

Parts Lists

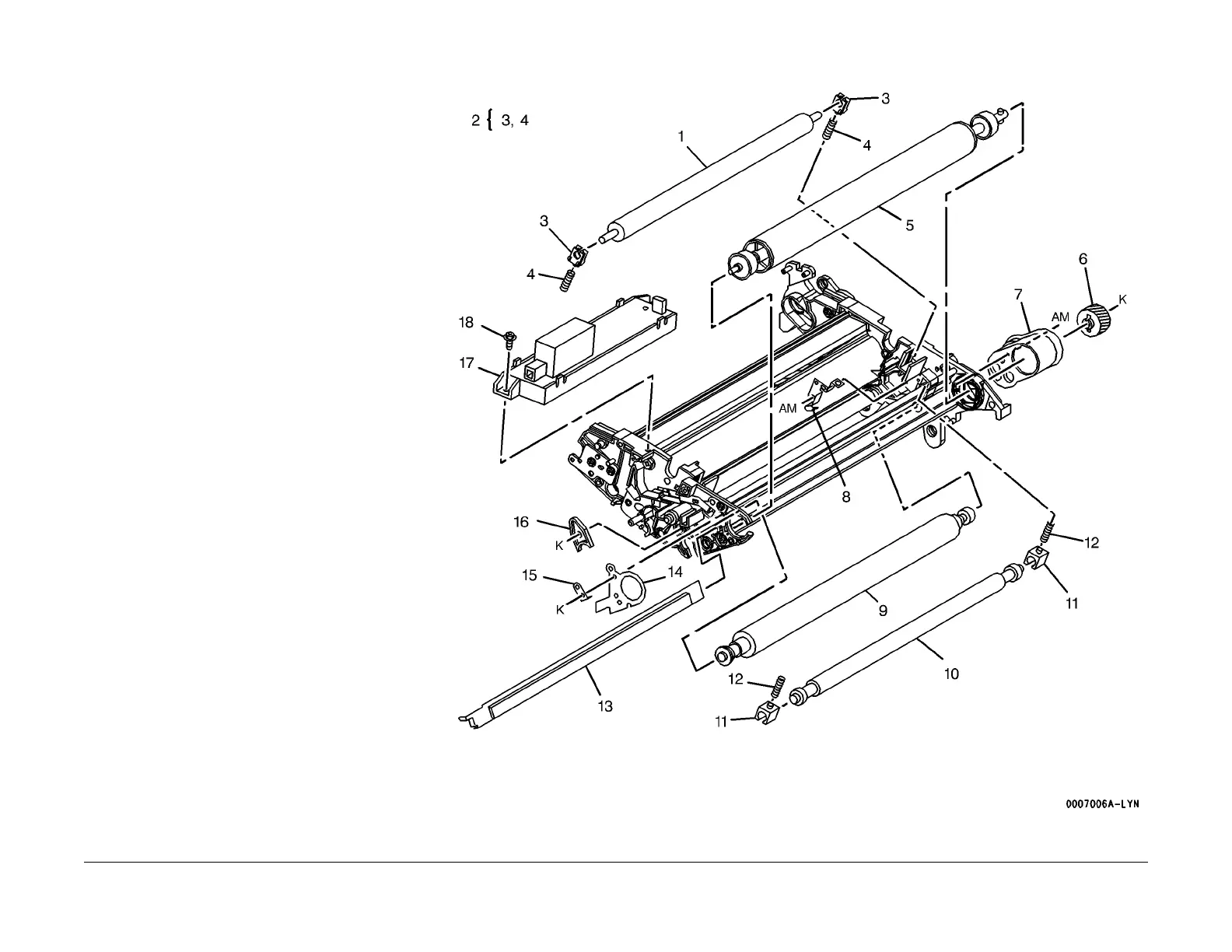

PL 7.6 IBT Component (Part 1 of 2)

Item Part Description

1 059K07800 Bias Roll (REP 7.6.1 )

2 013K81510 Bearing and Spring Assembly

3 013E88310 Bearing

4 – Spring (P/O PL 7.6 Item 2)

5 059K07843 Drive Roll (Pre-Tag 20) (REP 7.6.2

)

6 007E46502 Gear

7 048K61601 Gear Cover

8 – Plate (P/O PL 7.5 Item 1)

9 059K07812 Back Up Roll (REP 7.6.3)

10 059K08160 Contact Roll (REP 7.6.4)

11 013E85430 Bearing

12 809E06330 Spring

13 042K91650 Drive Roll Cleaning Blade

14 – Bracket (P/O PL 7.5 Item 1)

15 – Bracket (P/O PL 7.5 Item 1)

16 830E81410 Plate

17 105K14062 1st BTR HVPS

18 – Screw (P/O PL 7.5 Item 1)
