1/05
4-30
DocuColor 12/DCCS50
REP 2.12.1
Reissue
Repairs and Adjustments
REP 2.12.1 Tray 5 Lift Motor
Parts List on PL 2.12
Removal
WARNING
Turn power off and disconnect the power plug.
1. Open the Upper Tray 5 Assembly (Figu
re 1), or for ease of access, remove the Tray 5
Assembly from the machine (REP 2.9.1).
1. Pull up the lever and open the Upper Tray 5 Assembly.

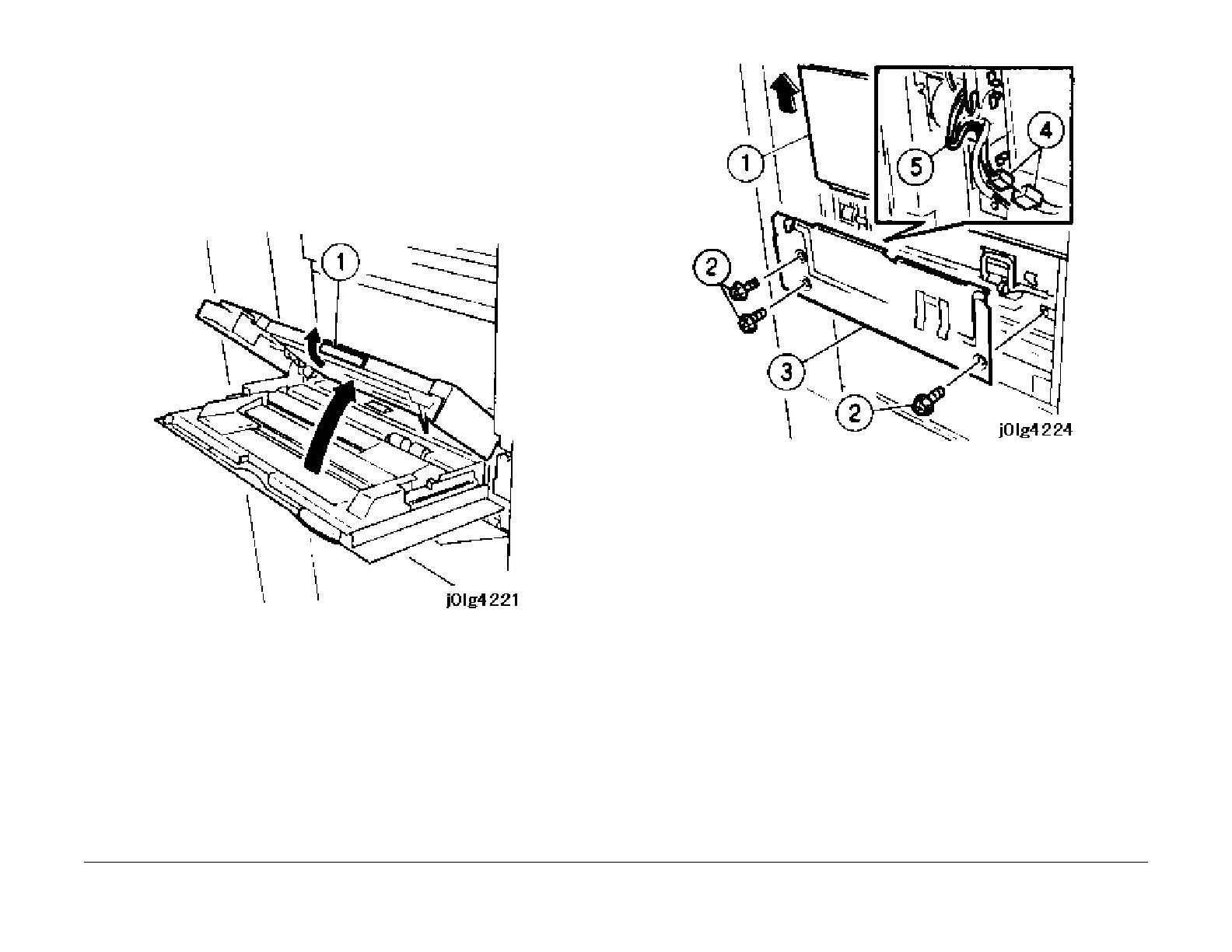

Figure 1 Opening the Upper Tray 5 Assembly
2. Disconnect the connector (Figu
re 2).
1. Pull outward to extend the tray, then pivot the tray up.
2. Remove the screws (3).
3. Remove the lower cover.
4. Disconnect the connector.
5. Remove the wire from the hooks (3).
Figure 2 Disconnecting the connector
3. Remove the bracket (F
igur
e 3).
1. Remove the screw.
2. Remove the bracket.
manuals4you.commanuals4you.com
To Next Page
