Xerox DocuColor 12/DCCS50 User Manual

1/05
4-185
DocuColor 12/DCCS50
REP 14.1.1
Repairs and Adjustments
Reissue
REP 14.1.1 Offset Motor
Parts List on PL 14.1
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the OCT from the Sorter.
2. Remove the support (view from bottom) (Figure 1
).
1. Remove the screws (2).
2. Remove the retaining covers (2).
3. Remove the support.

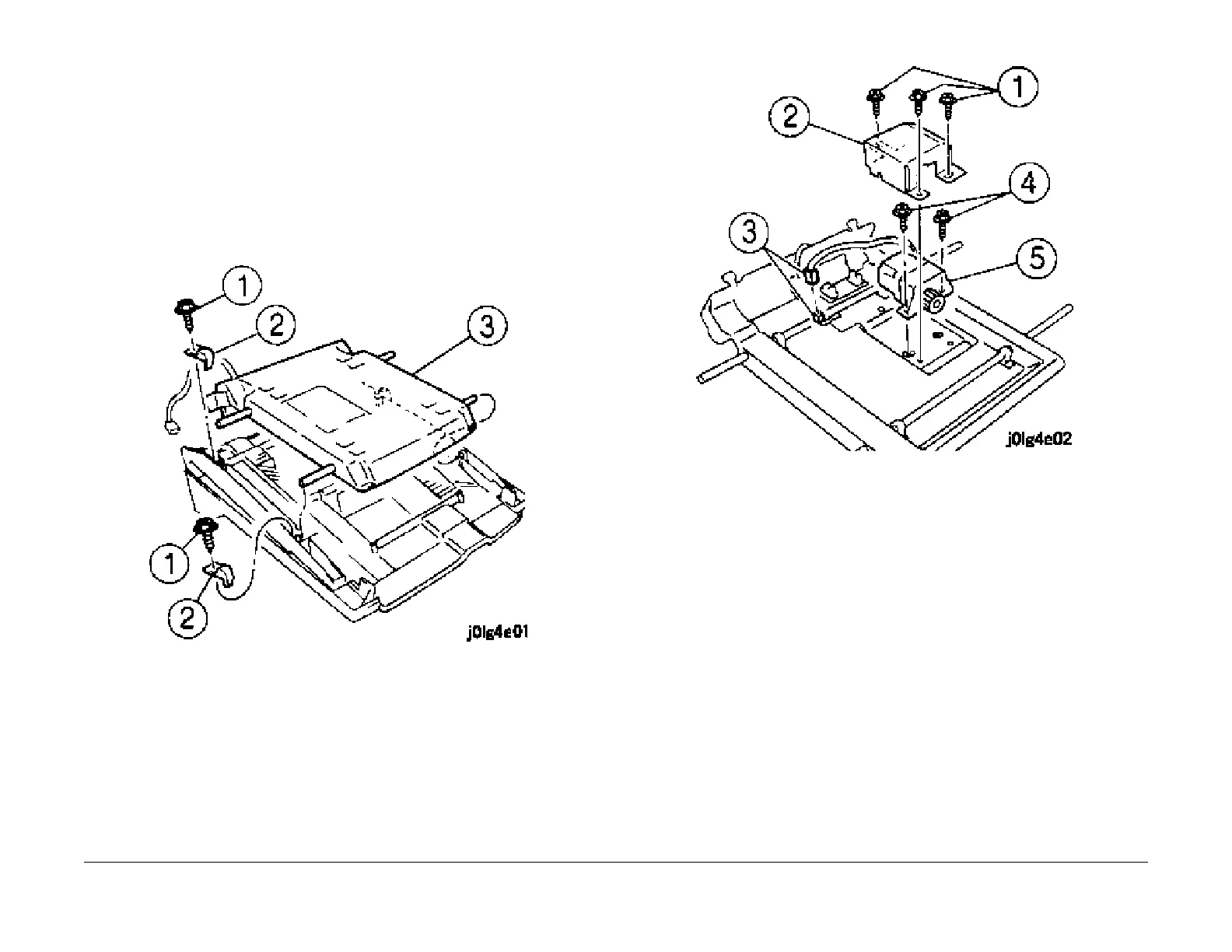

Figure 1 Remove the Support
3. Remove the Offset Motor (Figure 2
).
1. Remove the screws (3).
2. Remove the cover.
3. Disconnect the connector.
4. Remove the screws (2).
5. Remove the Offset Motor.
Figure 2 Remove the Offset Motor
Installation
1. Reinstall the parts in the reverse order of disassembly.
