1/05
4-63
DocuColor 12/DCCS50
REP 3.4.2, REP 3.5.1
Repairs and Adjustments
Reissue

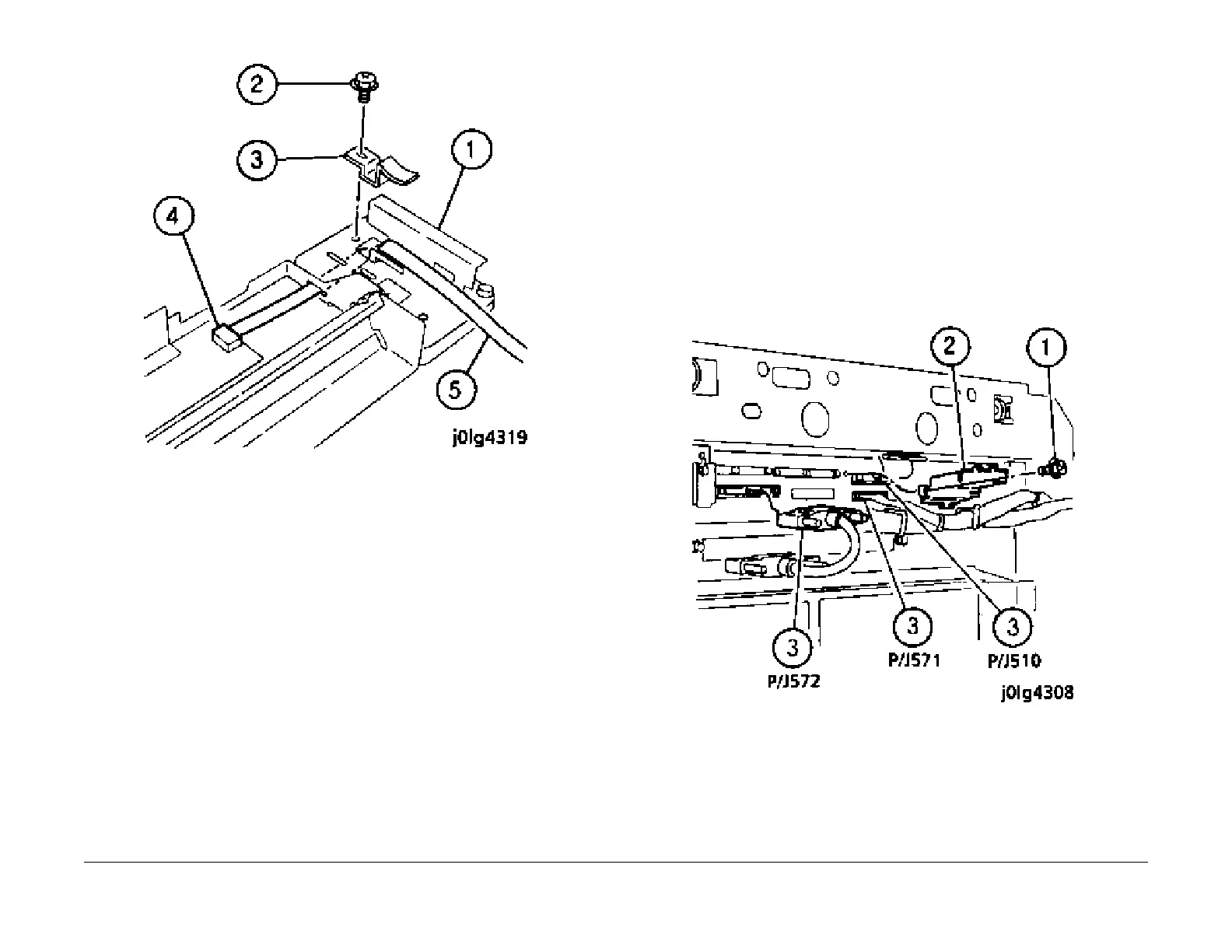

Figure 3 Removing the Lamp Wire Harness
Installation
1. Reinstall the parts in the reverse order of disassembly.
NOTE: After reinstalling the parts, adjust the positions of the Full Rate/Half Rate Carriages
(ADJ. 3.
4.1).
REP 3.5.1 IPS Chassis
Parts List on PL 3.5
Removal
WARNING
Turn power off and disconnect the power plug.
CAUTION
The IPS chassis is heavy (16lb.). Take care to av
oid injury when handling the IPS chassis.
1. Remove the Right Upper Cover (PL 11
.2 Item 1).
2. Remove the IIT Rear Cover (PL 1
1.3 Item 15).
3. Disconnect the connectors at the right side of the IPS chassis (Figure
1).
1. Remove the screws (2).
2. Remove the connector cover.
3. Disconnect the connectors (3).
Figure 1 Disconnecting the Connectors
4. Disconnect the connectors in the rear side of the IPS chassis (Figur
e 2).
1. Release the clamp.
2. Disconnect the connectors (5).
To Next Page
