1/05

4-108

DocuColor 12/DCCS50

REP 7.6.3

Reissue

Repairs and Adjustments

REP 7.6.3 Back-up Roll

Parts List on PL 7.6

Removal

NOTE: If replacing the Back-up Roll, clear the HFSI counter. Enter the dC135 HFSI Counter

List Diag. Screen (009-808).

WARNING

Turn power off and disconnect the power plug.

NOTE: When removing the IBT, make sure that the IBT Belt does not touch any other part.

NOTE: Carefully place the removed IBT on a flat surface (covered with a sheet of paper).

1. Remove the IBT (REP

7.1.

1).

2. Remove the IBT Cleaner (REP 7.1.

2).

3. Remove the IBT Belt (REP 7.5.

1).

4. Remove the Back-up Roll (Figu

re 1).

NOTE: Do not touch or hold the rubber layer of the Back-up Roll.

1. Remove the screw.

2. Remove the plate.

3. Remove the Back-up Roll.

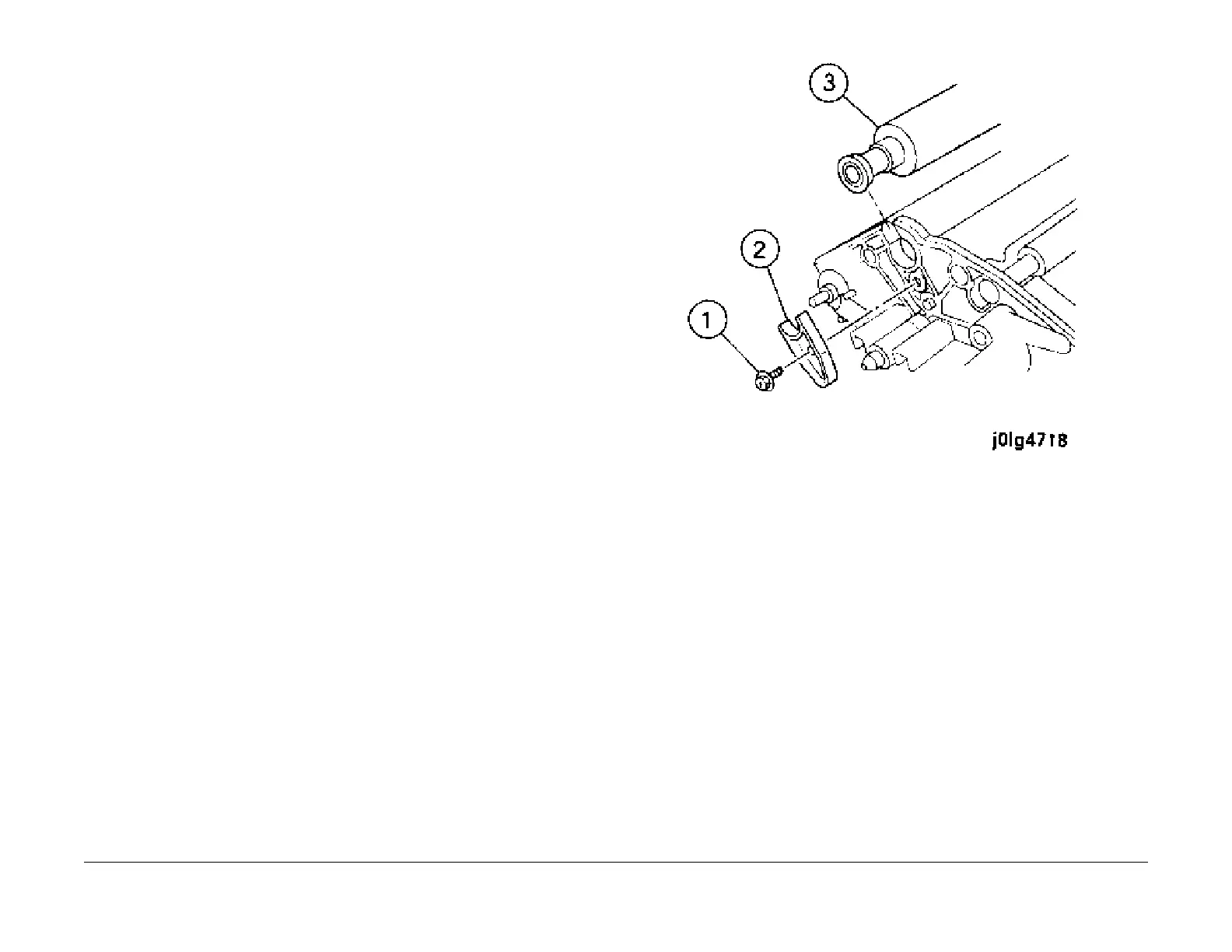

Figure 1 Remove the Back-up Roll

Installation

1. Reinstall the parts in the reverse order of disassembly.
