Xerox DocuColor 12/DCCS50

1/05
8e-12
DocuColor 12/DCCS50
REP 20.3, REP 20.4
Reissue
Electronic Pre-Collation (EPC)

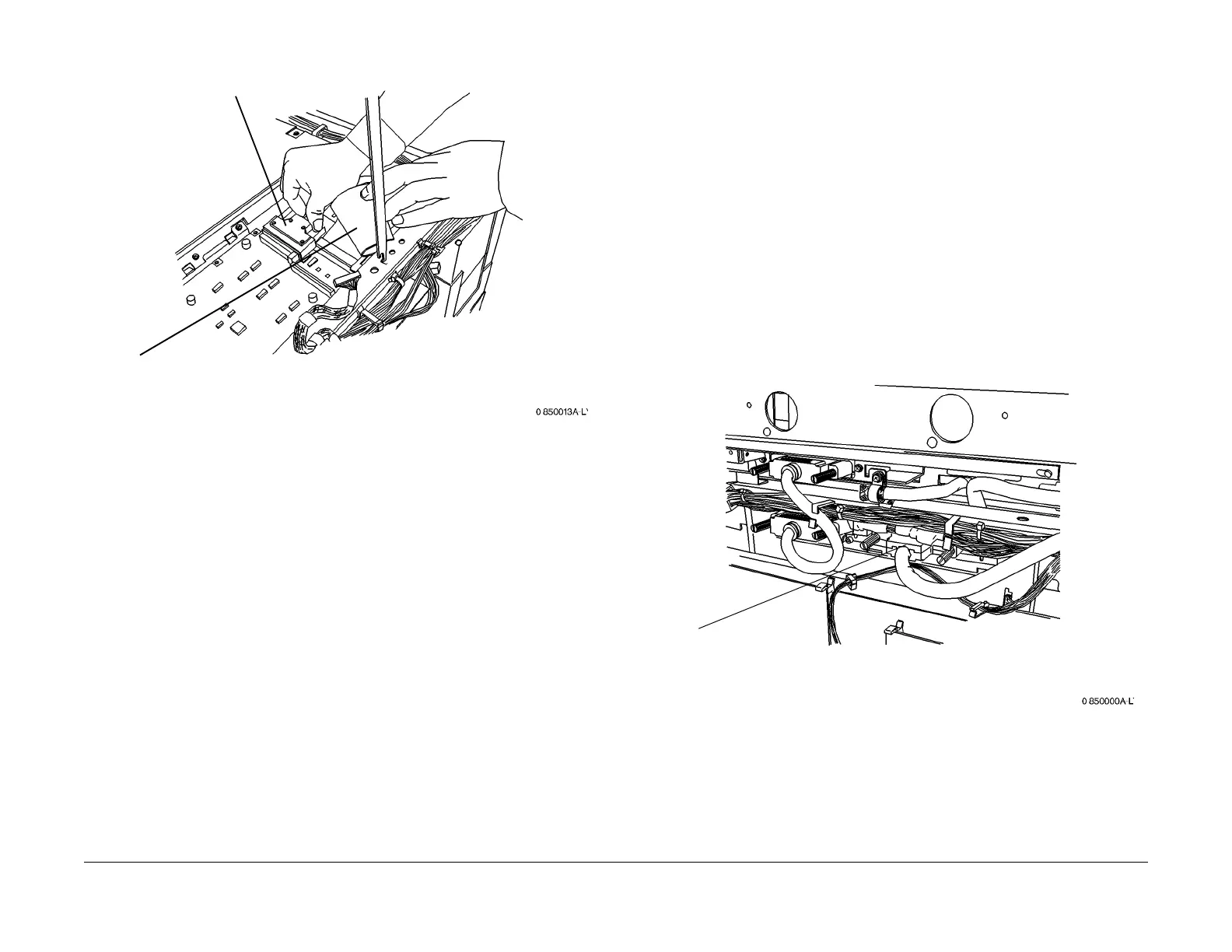

Figure 2 Removing the Scan Cable
Replacement
1. Reinstall the parts in the reverse order of disassembly.
REP 20.4 EPC Print Cable
Parts List on PL 20.1
Removal
1. For DCCS50:
• Switch Off the power. Wait 30 seconds, then unplug the power cord. Disconnect the
IDFE D
DI Cables.
For DC12 with attached Fiery or Splash DFE:
• Perform the correct power down procedure. D
isconnect the DFE DDI cables.
For DC12 without an attached DFE:
• Switch off the power and disconnect the power cord.
2. Undock the Finisher or Mailbox/Sort
er, if present.
3. Remove the following:
• Exit Tray (PL 12.1
1)
• Right Upper Cover (PL 1
1.2)
4. Remove the Print Cable (Figu
re 1):
Figure 1 Removing the Print Cable
Replacement
1. Reinstall the parts in the reverse order of disassembly.
1
Disconnect the Flat
Cable
2
Disconnect the Scan Cable
Disconnect the
Connector
