1/05

5-274

DocuColor 12/DCCS50

PL 6.4

Reissue

Parts Lists

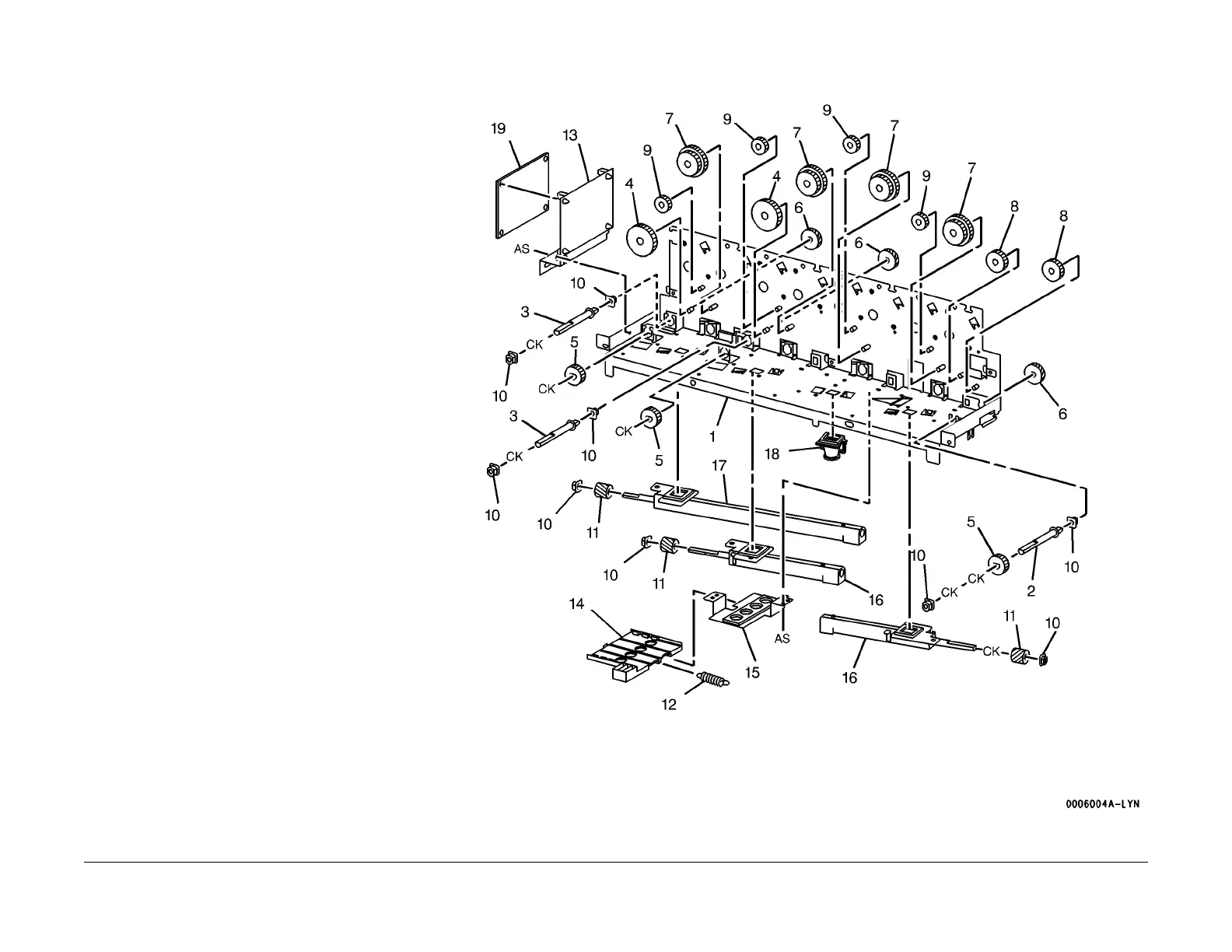

PL 6.4 Toner Cartridge Component

(Part 2 of 2)

Item Part Description

1 – Frame (P/O PL 6.2 Item 5)

2 – Shaft (K) (P/O PL 6.2 Item 5)

3 – Shaft (C, M) (P/O PL 6.2 Item 5)

4 007E46680 Gear (43)

5 007E46780 Gear (23)

6 007E46760 Gear (23)

7 007E49650 Gear

8 007E46700 Gear (25)

9 007E46720 Gear (21)

10 413W11660 Bearing

11 007E46740 Gear

12 009E34940 Spring

13 – Bracket (P/O PL 6.2 Item 5)

14 015E54911 Shutter

15 015K29910 Plate

16 048K61830 Auger (M, K)

17 048K61840 Auger (C)

18 – Pipe (Y) (P/O PL 6.2 Item 5)

19 160K45930 Dispense PWB (REP 6.4.1 )
