1/05
4-86
DocuColor 12/DCCS50
REP 6.3.2, REP 6.4.1
Reissue
Repairs and Adjustments

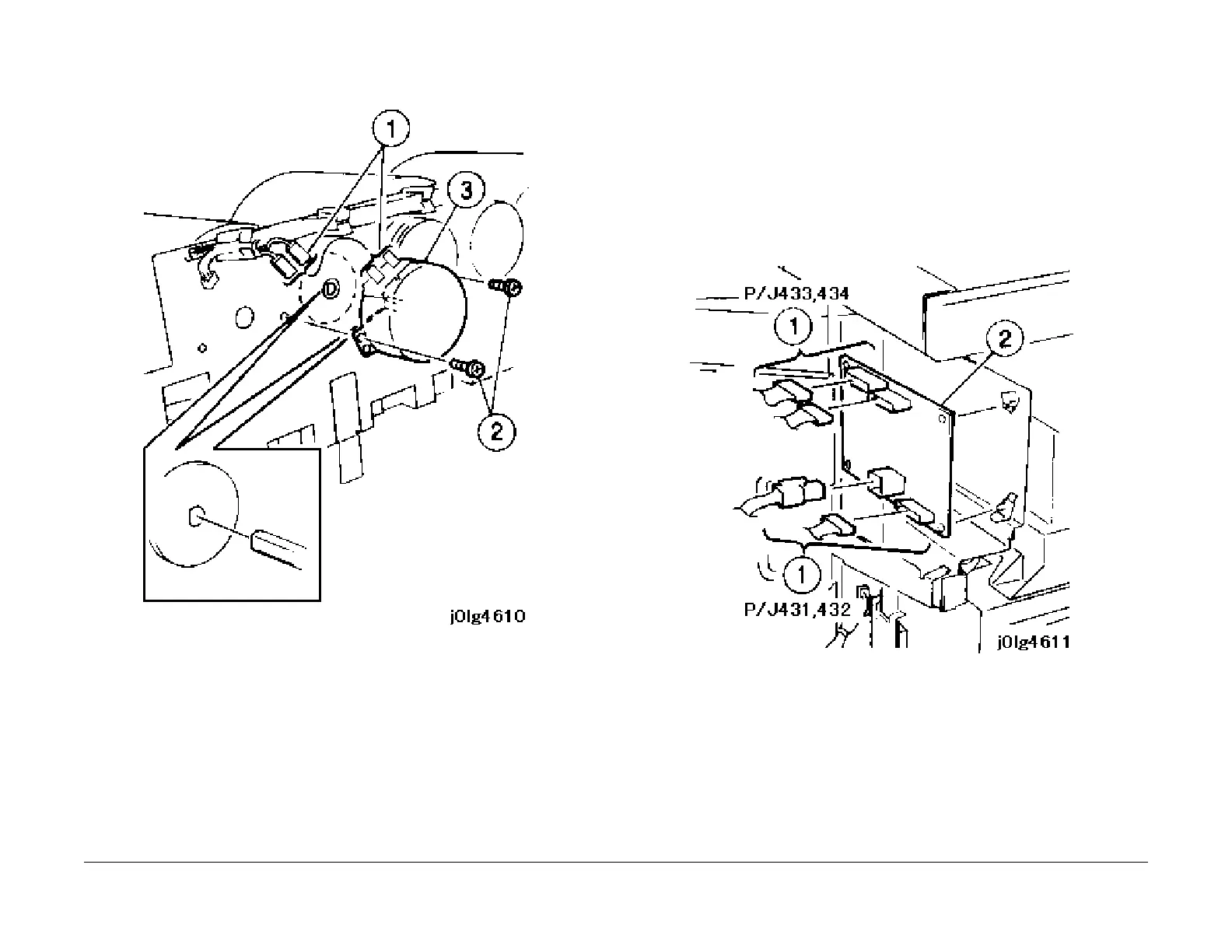

Figure 2 Remove the Dispense Motor
Installation
1. Reinstall the parts in the reverse order of disassembly.
REP 6.4.1 Dispense PWB
Parts List on PL 6.4
Removal
WARNING
Turn power off and disconnect the power plug.
1. Open the Front Door.
2. Remove the Toner Cartridge Cover (PL 6.2).
3. Rem
ove the Dispense PWB (Figure 1
).
1. Disconnect the connectors (4).
2. Release the hooks (4) and remove the Dispense PWB.
Figure 1 Remove the Dispense PWB
Installation
1. Reinstall the parts in the reverse order of disassembly.
