Xerox DocuColor 12/DCCS50

1/05
5-332
DocuColor 12/DCCS50
PL 13.14
Reissue
Parts Lists

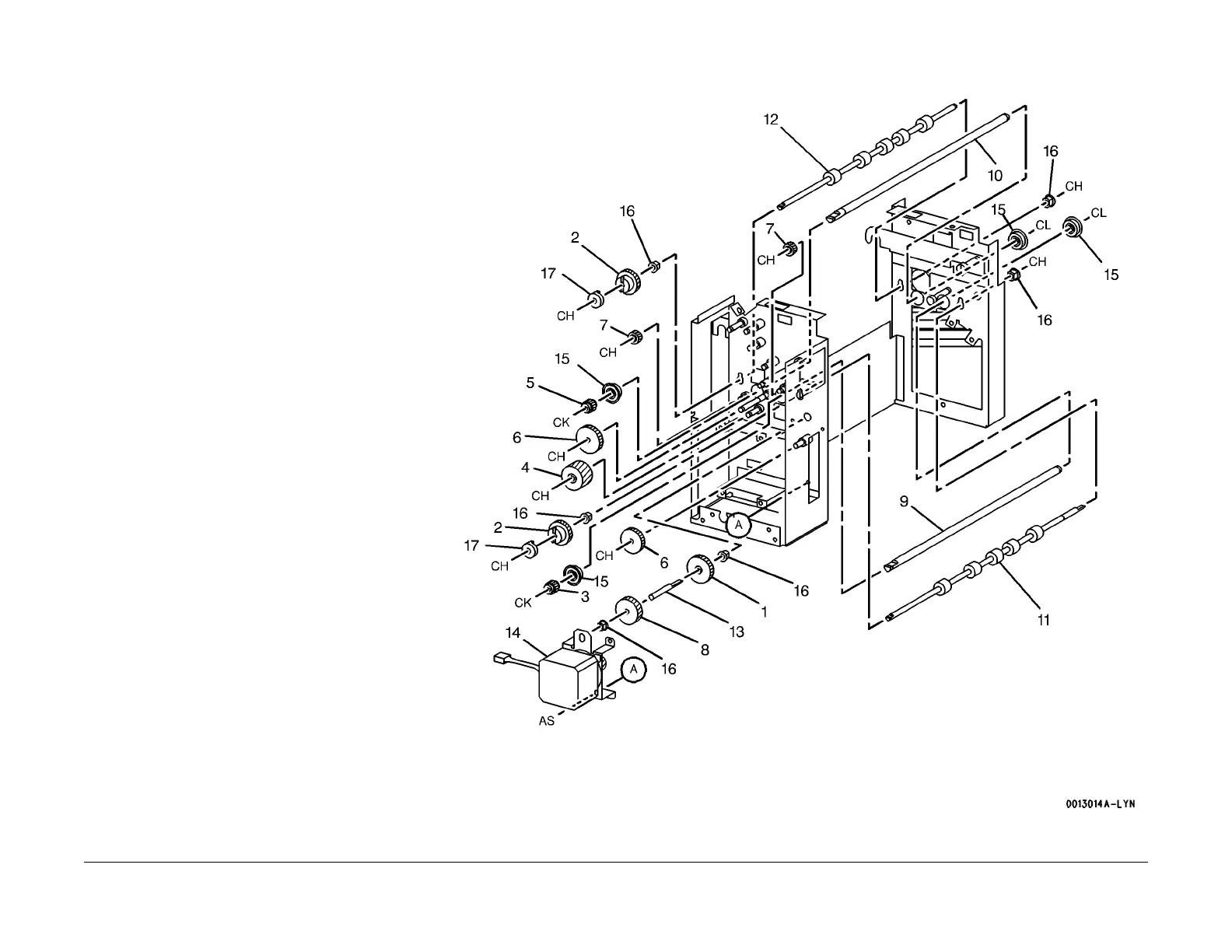

PL 13.14 Decurler Transport Roll
Item Part Description
1 007E54960 Gear (38)
2 – Torque Limiter Gear (P/O PL 13.3
Item
2)
3 007E54980 Gear (16)
4 007E54990 Gear (32)
5 007E55000 Gear (16)
6 – Gear (32) (P/O PL 13.3 Item 2)
7 407W08220 Gear (20)
8 007E54970 Gear (34)
9 022E19660 Decurler Drive Roll
10 022E19670 Decurler Drive Roll
11 022K51610 Entrance Roll
12 022K51621 Exit Roll
13 – Motor Shaft (P/O PL 13.3 Item 2)
14 127K24901 Decurler Stepping Motor (REP
13.
14.
1 )
15 413W08350 Bearing
16 413W75959 Bering
17 – Stopper (P/O PL 13.3 Item 2)
