1/05
4-26
DocuColor 12/DCCS50
REP 2.8.2
Reissue
Repairs and Adjustments
REP 2.8.2 Tray 2/3/4 Feed-out Sensor
Parts List on PL 2.8
Removal
NOTE: This page describes how to remove the Tray 2 Feed-out Sensor.
WARNING
Turn power off and disconnect the power plug.
1. Open the Left Lower Cover.

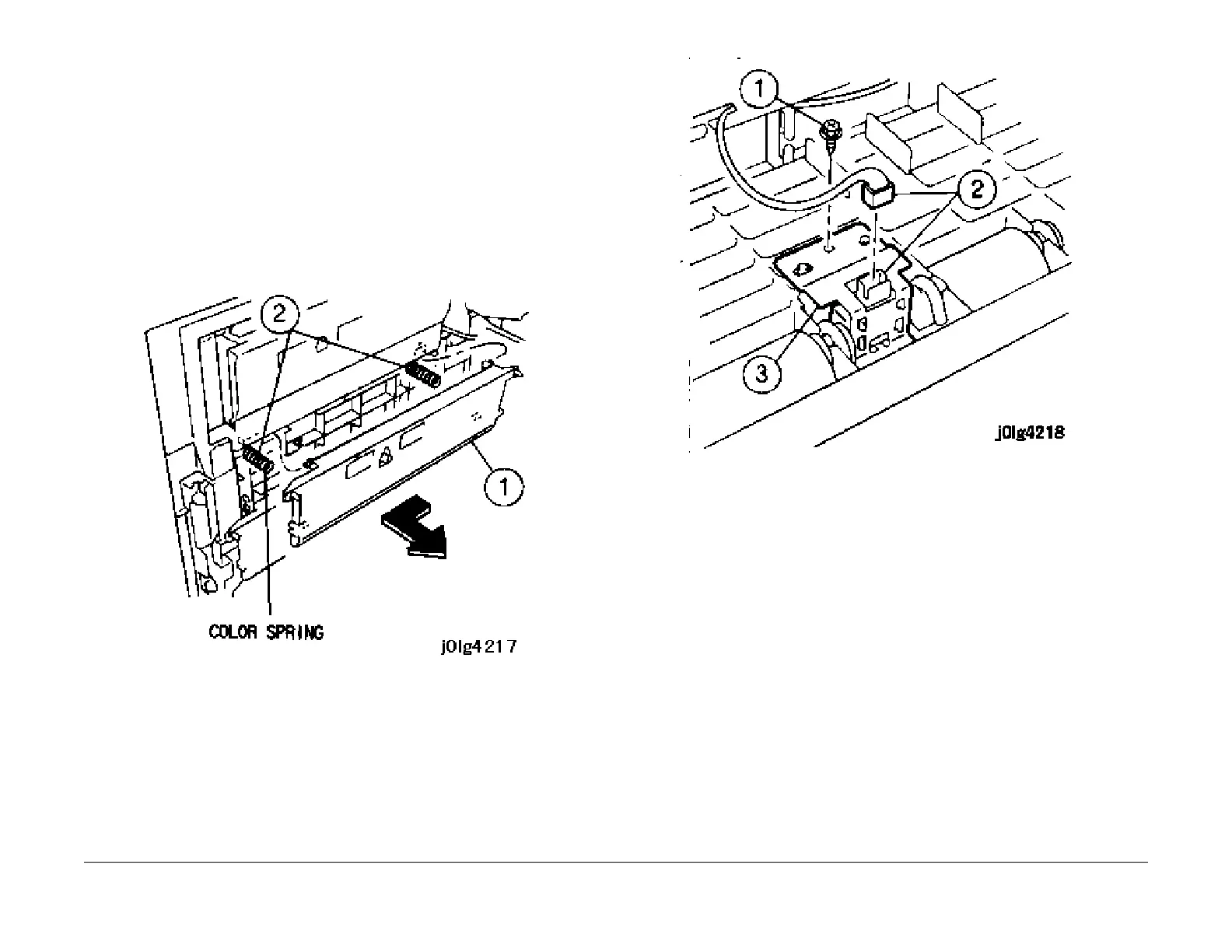

2. Move the baffle in the direction shown and remove it (Figu
re 1).
1. Remove the baffle.
2. Remove the springs (2).
Figure 1 Removing the Baffle
3. Remove the sensor (the whole bracket) (Figu
re 2).
1. Remove the screw.
2. Disconnect the connector.
3. Remove the bracket.
Figure 2 Removing the Bracket
4. Remove the Tray 2 Feed-out Sensor (F
igure 3
).
1. Remove the Tray 2 Feed-out Sensor.
manuals4you.commanuals4you.com
To Next Page
