Xerox DocuColor 12/DCCS50 User Manual

1/05
4-102
DocuColor 12/DCCS50
REP 7.5.1
Reissue
Repairs and Adjustments
REP 7.5.1 IBT Belt
Parts List on PL 7.5
Removal
NOTE: After replacing the IBT Belt, clear the HFSI. Enter the dC135 HFSI Counter List Diag.
Screen:
1. DC 135 (NVM 009-805)
2. DC135 (NVM 009-806)
WARNING
Turn power off and disconnect the power plug.
NOTE: When removing the IBT, make sure that the IBT Belt does not touch any other part.
NOTE: Carefully place the removed IBT on a flat surface (covered with a sheet of paper).
1. Open the Front Door.
2. Remove the IBT (REP
7.1.
1).
3. Remove the IBT Cleaner (REP 7.1.
2).

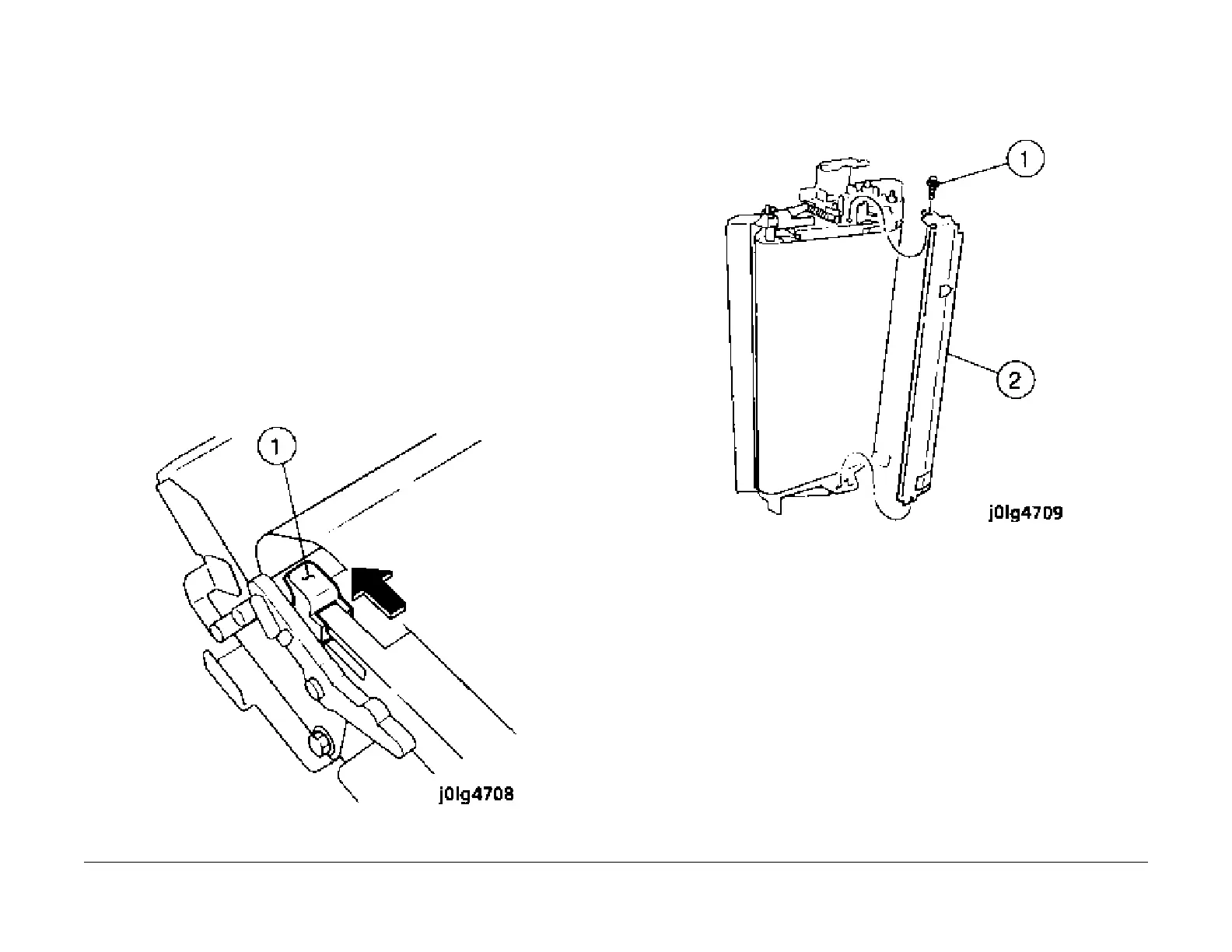

4. Move the stoppers (2) in the direction of the arrow and lock the roll (Figure 1
), front and
rear.
1. Move the stoppers (2), front and rear.
Figure 1 Move the Stoppers
5. Raise the IBT.
6. Remove the Inlet Plate (Figure
2).
1. Remove the screw.
2. Remove the Inlet Plate.
Figure 2 Remove the Inlet Plate
7. Move the roll and loosen the tension (Figu
re 3).
1. Remove the screws (2).
2. Remove the bracket.
3. Remove the screws (2).
4. Hold the bracket and move the roll.
5. Hook the bracket hole to the boss.
