1. Loosen the nut.
2. Turn the set screw to adjust the spring pressure.
3. Tighten the nut.

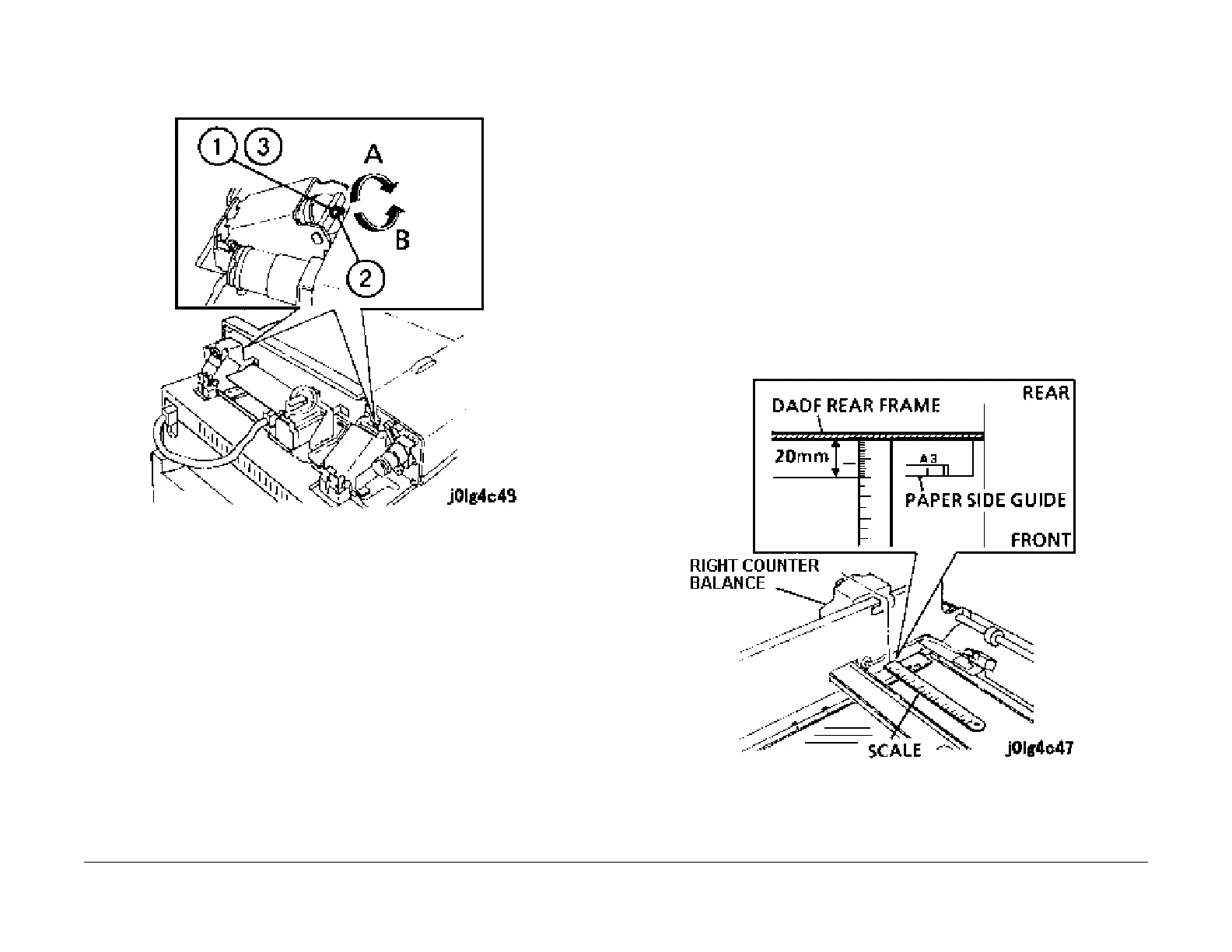

Figure 2 Adjusting the Left/Right Counter Balance
ADJ 12.3.2 DADF Parallelism
Parts List on PL 12.3
Purpose
To correct the ADF front/back position by adjusting the Right Counter Balance and to correct
any skew problems.
Check
WARNING
Turn power off and disconnect the power plug.
1. Remove the Front Cover, PL 12.1.
2. Rem
ove the Entrance Tray, PL 12.1.
3. Rem
ove the Document Transport (REP 12.10.
1. Steps 1 and 2).
4. Measure the distance between the DADF rear fr
ame and the front surface of the Paper
Side Guide. Check that the distance is 20mm (Figure 1).
NOTE: (Figure 1) The measurement point must be the center of
the Right Counter Balance.
Press the scale onto the DADF rear frame.
Figure 1 Checking the Frame-to-Guide Dimension
