Xerox DocuColor 12/DCCS50 User Manual

1/05
5-280
DocuColor 12/DCCS50
PL 7.3
Reissue
Parts Lists

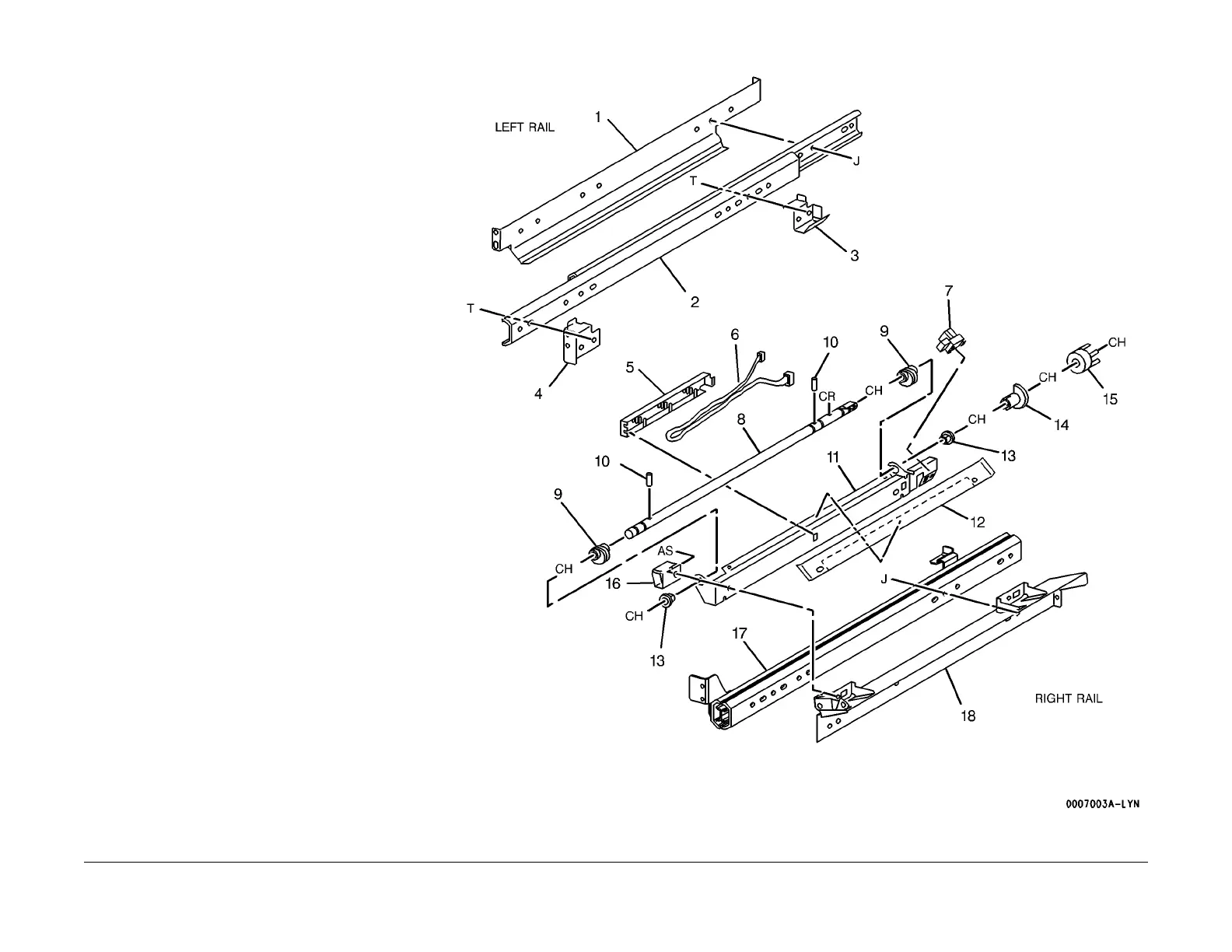

PL 7.3 Left/Right Rail
Item Part Description
1 – Left Tie Plate (P/O PL 7.1 Item 8)
2 – Left Rail (P/O PL 7.1 Item 8)
3 – Bracket (P/O PL 7.1 Item 8)
4 – Bracket (P/O PL 7.1 Item 8)
5 – Harness Cover
6 162K37360 Wire Harness
7 130E82190 IBT Cleaner Blade Home Position
Sens
or
8 – Shaf
t (P/O PL 7.1 Item 7)
9 – Cam (P/O PL 7.1 Item 7)
10 – Pin (P/O PL 7.1 Item 7)
11 – Bracket (P/O PL 7.1 Item 7)
12 – Seal (P/O PL 7.1 Item 7)
13 – Bearing (P/O PL 7.1 Item 7)
14 – Wheel (P/O PL 7.1 Item 7)
15 – Coupling (P/O PL 7.1 Item 7)
16 – Plate Spring (P/O PL 7.1 Item 7)
17 001K59370 Right Rail
18 – Right Tie Plate (P/O PL 7.1 Item 7)
