DocuColor 12/DCCS50
ST-1 Convenience Stapler RAP
Reissue
Convenience Stapler
Stapler Checkout Procedure
NOTE: The customer has described the problem as poorly clinched staples or missing staples.
The customer describes the problem as poorly clinched staples.
YN
Remove and then reinstall the Staple Cartridge. The Convenience Stapler operates
co
rr
ectly after reinstalling the Staple Cartridge.
YN
The unformed staple roll may be wound too tightly or the Driver Bar may be out of
posit
ion.
Do the
following:
• Remove the Staple Cartridge.
• Perform the OF-8 S
taple Cartridge Checkout Procedure OF-8 Staple Cartridge
Checkout Procedure.
• Reinstall the Staple Cartridge.
The Convenience Stapler operates correctly after performing the Staple Car-
tridge Checkout Procedure.
YN
Replace the Staple Cartridge and attempt to staple a stack of documents. The
Co
nv
enience Stapler operates correctly after replacing the Staple Car-
tridge.
YN
Replace the Convenience Stapler Assembly (P
L 16.1
).
Go to Final Actions.
Go to
Final Actions.
Go to
Final Actions.
Th
e customer is attempting to staple a set that is greater than 50 sheets of 24 lb (120
gsm)
or equivalent thickness.
YN
Replace the Staple Cartridge in the Convenience Stapler
Inform the customer the stapling capacity of the Convenience Stapler is 50 sheets of 24 lb (120
gsm
) or
equivalent thickness.

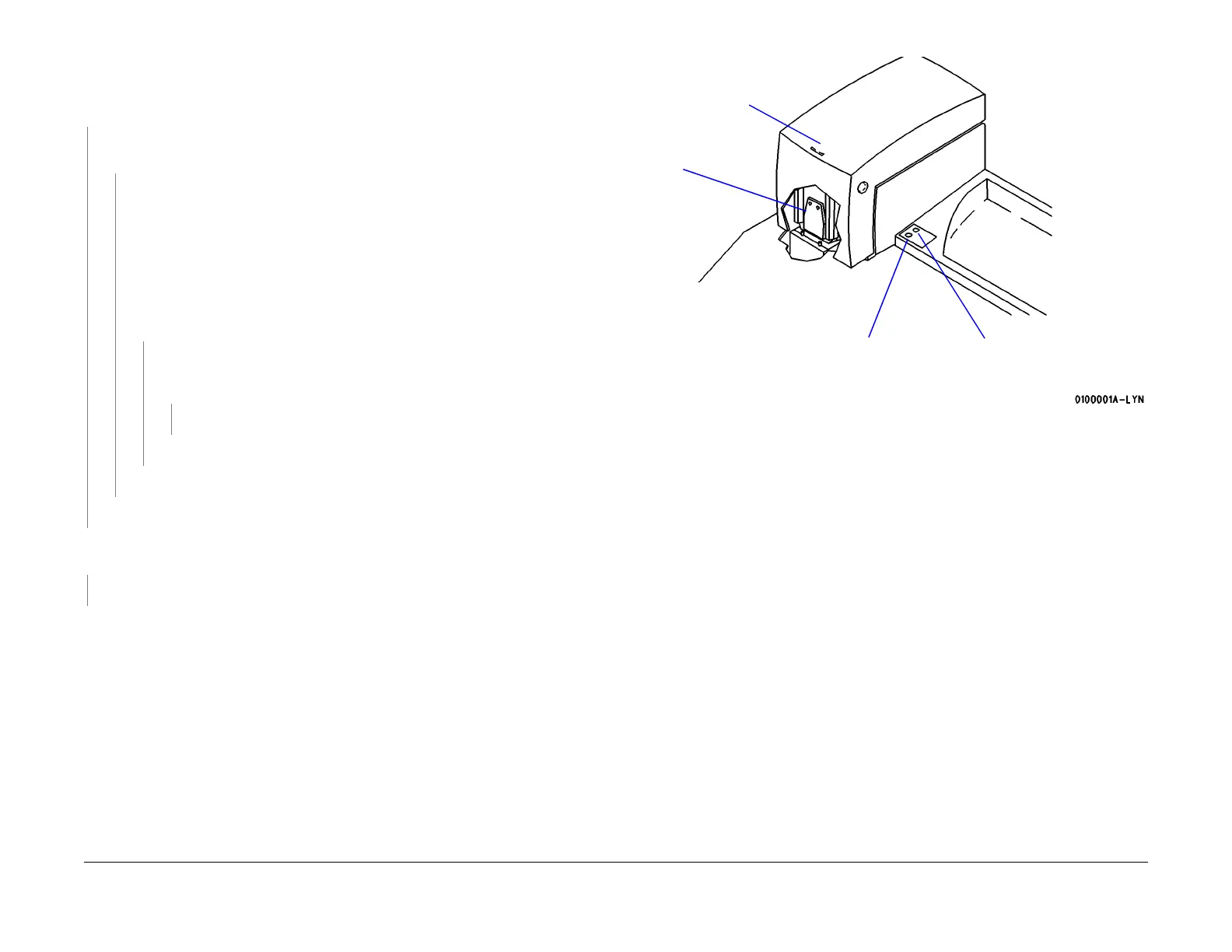

Figure 1 Stapler Components
red LED green LED
Stapler
Head
Convenience
Stapler Top
Cover
