5-307

DocuColor 12/DCCS50

PL 11.3

Parts Lists

Reissue

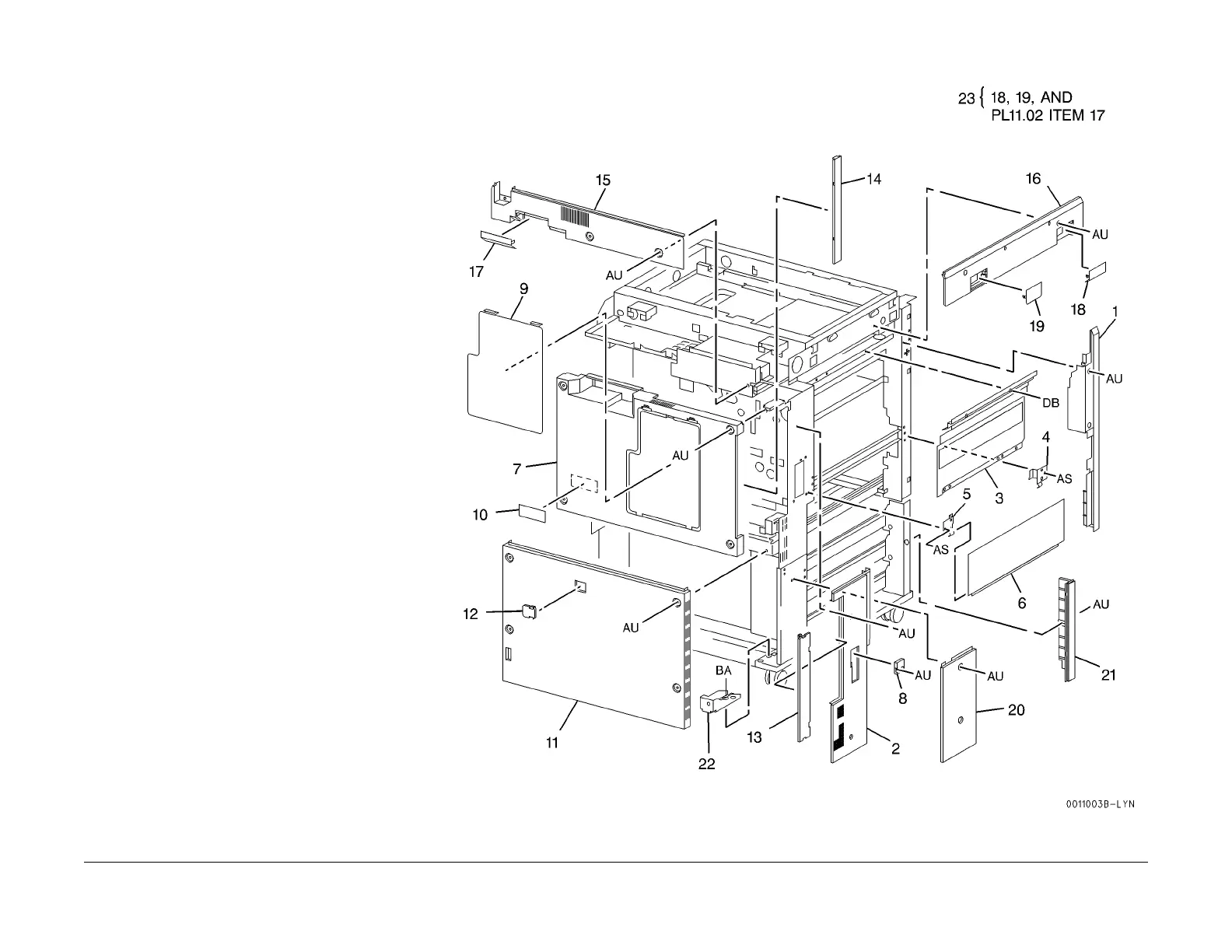

PL 11.3 Rear/Left Cover

Item Part Description

1 048E60772 Left Upper Front Cover

2 048E60781 Left Upper Rear Cover

3 048E60790 Left Inner Cover

4 – Bracket (Front) (Not Spared)

5 – Bracket (Rear) (Not Spared)

6 802K04681 Left Middle Cover

7 802K31420 IOT Rear Cover (W/TAG P38)

8 048E65171 Blind Cover (EPSV)

9 048E65391 ESS Cover

10 – Data Plate (Not Spared)

11 048K76341 Tray Module Rear Cover

12 – Connector Cover (Not Spared)

13 048E65330 ESS Left Cover

14 048E65341 ESS Rear Cover

15 048E61933 IIT Rear Cover

16 048E61941 IIT Left Cover

17 048E61950 Blind Cover

18 – Blind Cover (P/O PL 11.3 Item 23)

19 – Blind Cover (P/O PL 11.3 Item 23)

20 – Left Lower Rear Cover (Not

ed)

21 802E61670 Left Lower Front Cover

22 – Extension Bracket (Not Spared)

23 600K84700 Cover Kit
