Xerox DocuColor 12/DCCS50 User Manual

1/05
4-152
DocuColor 12/DCCS50
REP 10.2.2
Reissue
Repairs and Adjustments
REP 10.2.2 Suction Blower Motor
Parts List on PL 10.2
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the following part:
a. Tray Module Rear Cover (PL 1
1.3)
2. Remove the duct (Figu
re 1).
1. Remove the screws (2).
2. Release the hook and remove the duct.

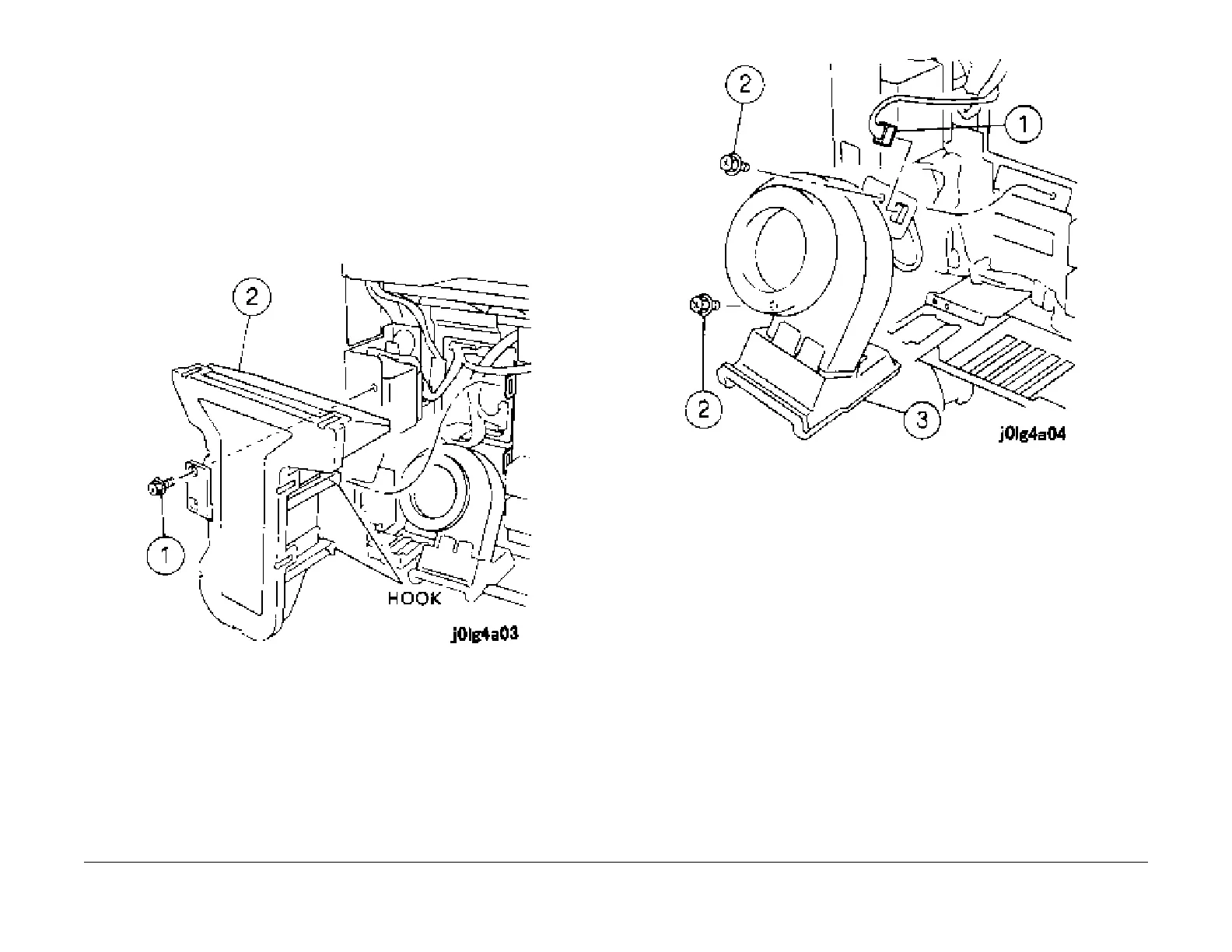

Figure 1 Remove the Duct
3. Remove the Suction Blower Motor (Figu
re 2).
1. Disconnect the connector.
2. Remove the screws (2).
3. Remove the Suction Blower Motor.
Figure 2 Remove the Suction Blower Motor
Installation
1. Reinstall the parts in the reverse order of disassembly.
