Xerox DocuColor 12/DCCS50 User Manual

1/05
4-48
DocuColor 12/DCCS50
REP 2.24.1, REP 2.24.2
Reissue
Repairs and Adjustments
REP 2.24.1 Inverter Motor
Parts List on PL 2.24
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the Inverter 1 (REP 2.23.
1).
2. Remove the Inverter Motor (Figu
re 1).
1. Release the clamps (3) and remove the wire.
2. Remove the cable tie.
3. Remove the screws (3).
4. Remove the Inverter Motor.

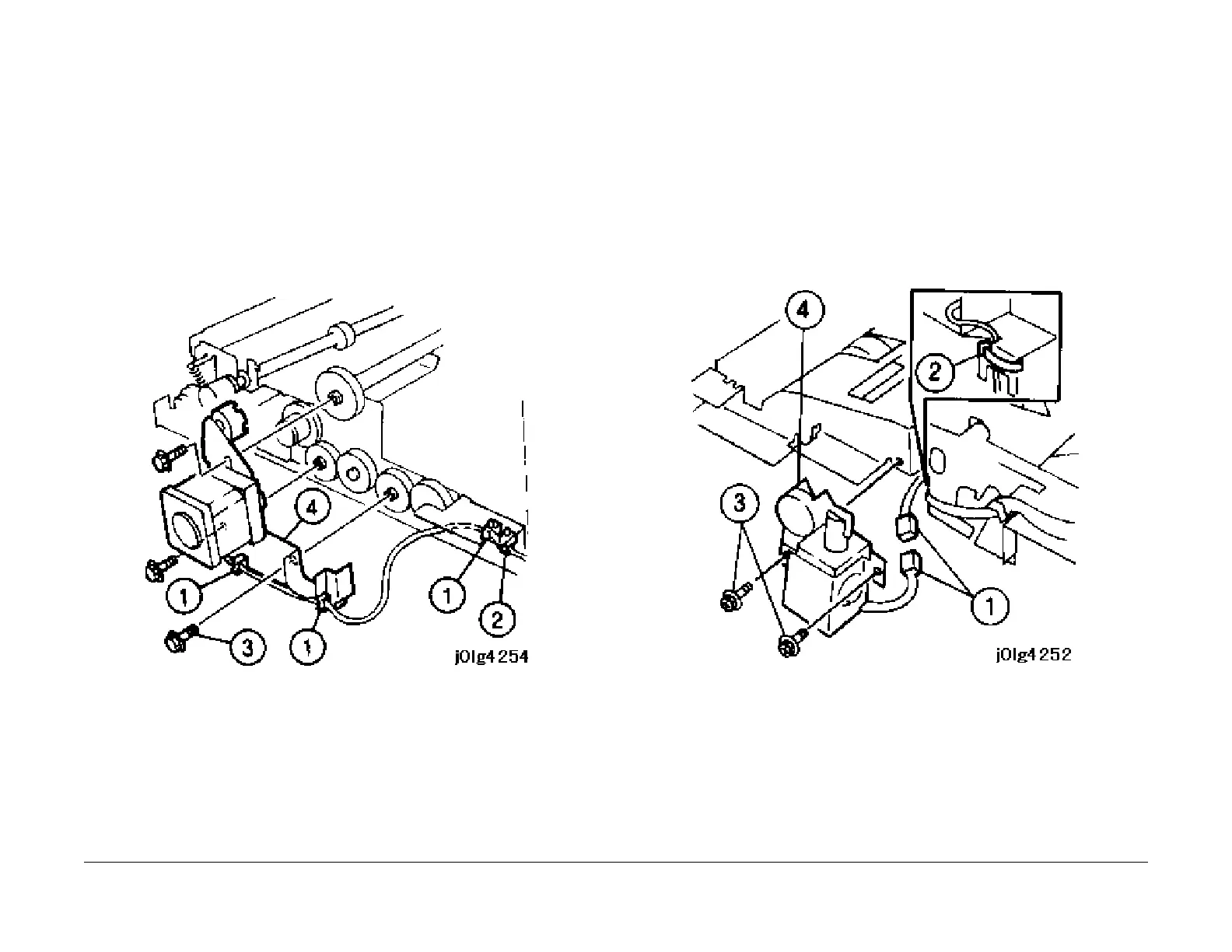

Figure 1 Removing the Inverter Motor
Installation
1. Reinstall the parts in the reverse order of disassembly.
REP 2.24.2 Release Solenoid
Parts List on PL 2.24
Removal
WARNING
Turn power off and disconnect the power plug.
1. Remove the Inverter 1 (REP 2.23.
1).
2. Remove the Release Solenoid (Figure 1
).
1. Disconnect the connector.
2. Cut off the cable tie.
3. Remove the screws (2).
4. Remove the Release Solenoid.
Figure 1 Removing the Release Solenoid
Installation
1. Reinstall the parts in the reverse order of disassembly.
