DocuColor 12/DCCS50
REP 15.3.21
Reissue
Finisher/Sorter
REP 15.3.21 Mailbox Drive Belt
Parts List on PL 18.10
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Remove the Rear Upper Cover (REP 15.3.
7).
3. Remove the SCT Exit Cover (PL 18
.3).
4. Remove the Mailbox Drive Motor (REP 15.3.
20).
5. Remove the Mailbox Drive Belt (Figu
re 1).
1. Remove the two screws securing the Belt Idler Bracket.
2. Remove the Mailbox Drive Belt.

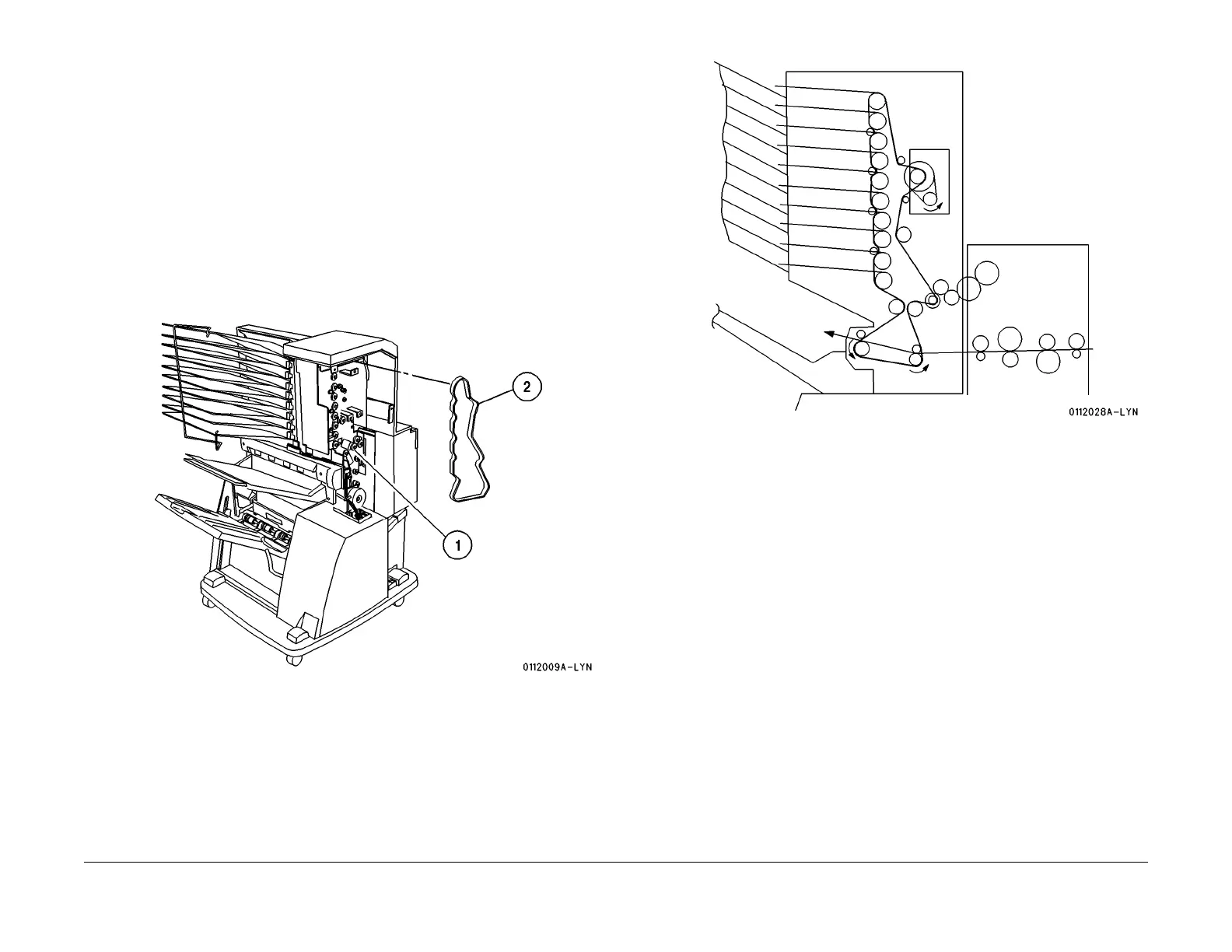

Figure 1 Remove the Mailbox Drive Belt
Replacement
1. Route the Mailbox Drive Belt onto the gears per the illustration (Figure 2).
Figure 2 Install the Mailbox Drive Belt
2. Reinstall the Belt Idler Bracket and secure with the two screws.
3. Reinstall the Mailbox Drive Motor (REP 15.3.
20).
4. Reinstall the SCT Exit Cover (PL 18.3).
5.
Reinstall the Rear Upper Cover (REP 15.3.
7).
