1/05
6-148
DocuColor 12/DCCS50
Installation Space Requirements, Product Specifica-
Reissue
General Procedures

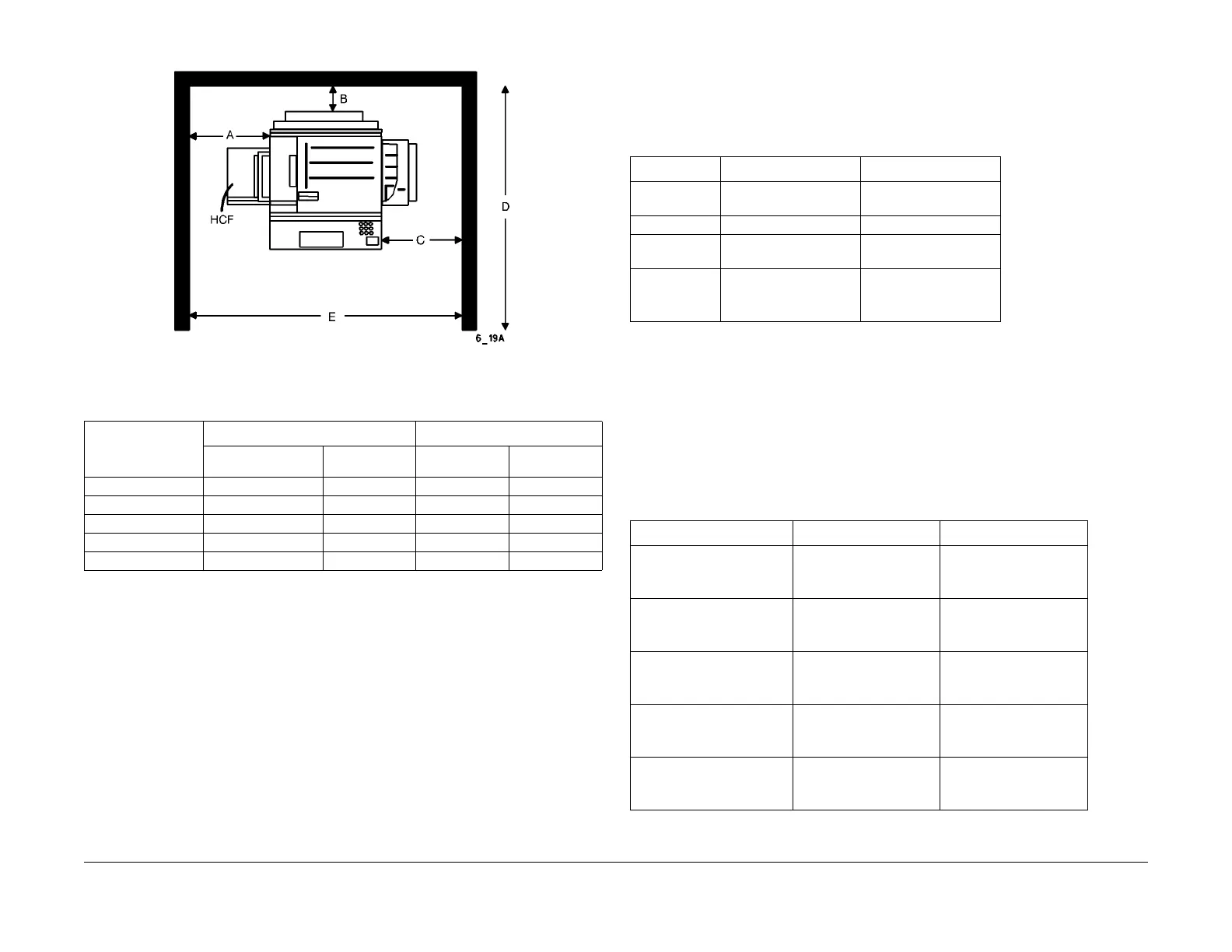

Figure 10 Installation Space Requirements with HCF
¹ Measured from the rear of Integrated Digital Front End.
² 110.5 in. (2807mm) if installed in hallway.
³ 90.5 in. (2300mm) if installed in hallway.
Product Specifications
Electrical Specifications
Input Service Requirements
The requirements for input power in each market are shown below:
NOTE: * For Mexico only, the machine must be functional at 10% above the rated voltage input
of t
he power supply.
NOTE: ** Dedicated service line is recommended, but not required. System plugs into stan-
dard office outlets with a single power cord.
Current/ Power Requirements
Current and Power specifications for each market are as follows:
Table 10 Installation Space Requirements with HCF
Dimensions
Fixed Space Requirements Movable Space Requirements
in. mm in. mm
A 51 1300 51 1300
B ¹ 24 610 4 100
C 23 585 23 585
D 95.5 ² 2426 ² 75.5 ³ 1918 ³
E 98.5 2500 98.5 2500
Table 1 Line Requirements
Specification NASG ESG
Voltage 115VAC ± 10% *
line - to - neutral
220-240VAC ± 10%
line - to - neutral
Frequency 60 Hz 50 Hz
Phase Single phase, 2-wire
plus earth g
round
Single phase, 2-wire
plus earth ground
Service **
C/P
LP
20 Amps
15 Amps
15 Amps
15 Amps
Table 2 Power Consumption
Specification NASG ESG
Max Power Consumption
C/P
LP
(@ 115VAC)
2.112 kVA
1.584 kVA
(@ 220VAC)
2.2 kVA
1.584KVA
Avg. Warm-up Current
C/P
LP
(@ 115VAC)
12.5A (1.6 kVA)
11.0A (1.265 kVA)
(@ 240VAC)
8.0A (1.6kVA)
6.3A (1.265 kVA)
Avg. Standby Current
C/P
LP
(@ 115VAC)
7.0A (0.8 kVA)
5.3A (0.6 kVA)
(@ 240VAC)
3.8A (0.8 kVA)
3.0A (0.6 kVA)
Avg. Run Current (4-color)
C/P
LP
(@ 115VAC)
10.0A (1.2 kVA)
7.5A (0.9 kVA)
(@ 240VAC)
5.7A (1.2 kVA)
4.5A (0.9 kVA)
Current Rating
C/P
LP
16 Amps
12 Amps
10 Amps
10 Amps
