Xerox DocuColor 12/DCCS50

1/05
5-284
DocuColor 12/DCCS50
PL 7.8
Reissue
Parts Lists

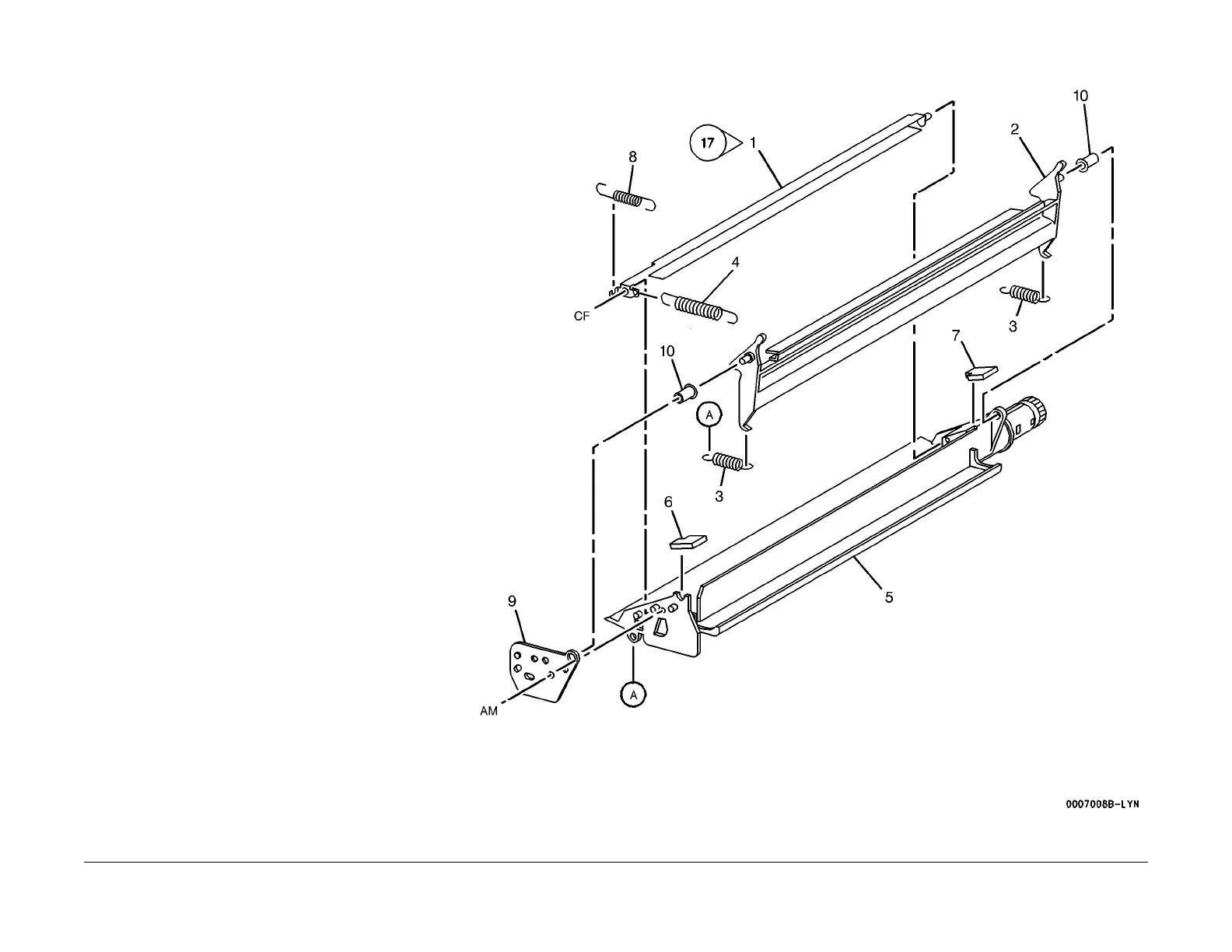

PL 7.8 IBT Cleaner
Item Part Description
1 035K81498 Seal (W/TAG P17)
2 033K93272 Cleaning Blade
3 809E17001 Spring
4 809E17010 Spring
5 – Housing (P/O PL 7.1 Item 3)
6 035E48290 Seal
7 035E48300 Seal
8 809E06401 Spring
9 – Plate (P/O PL 7.1 Item 3)
10 – Bearing (P/O PL 7.1 Item 3)
