1/05
5-256
DocuColor 12/DCCS50
PL 2.23
Reissue
Parts Lists

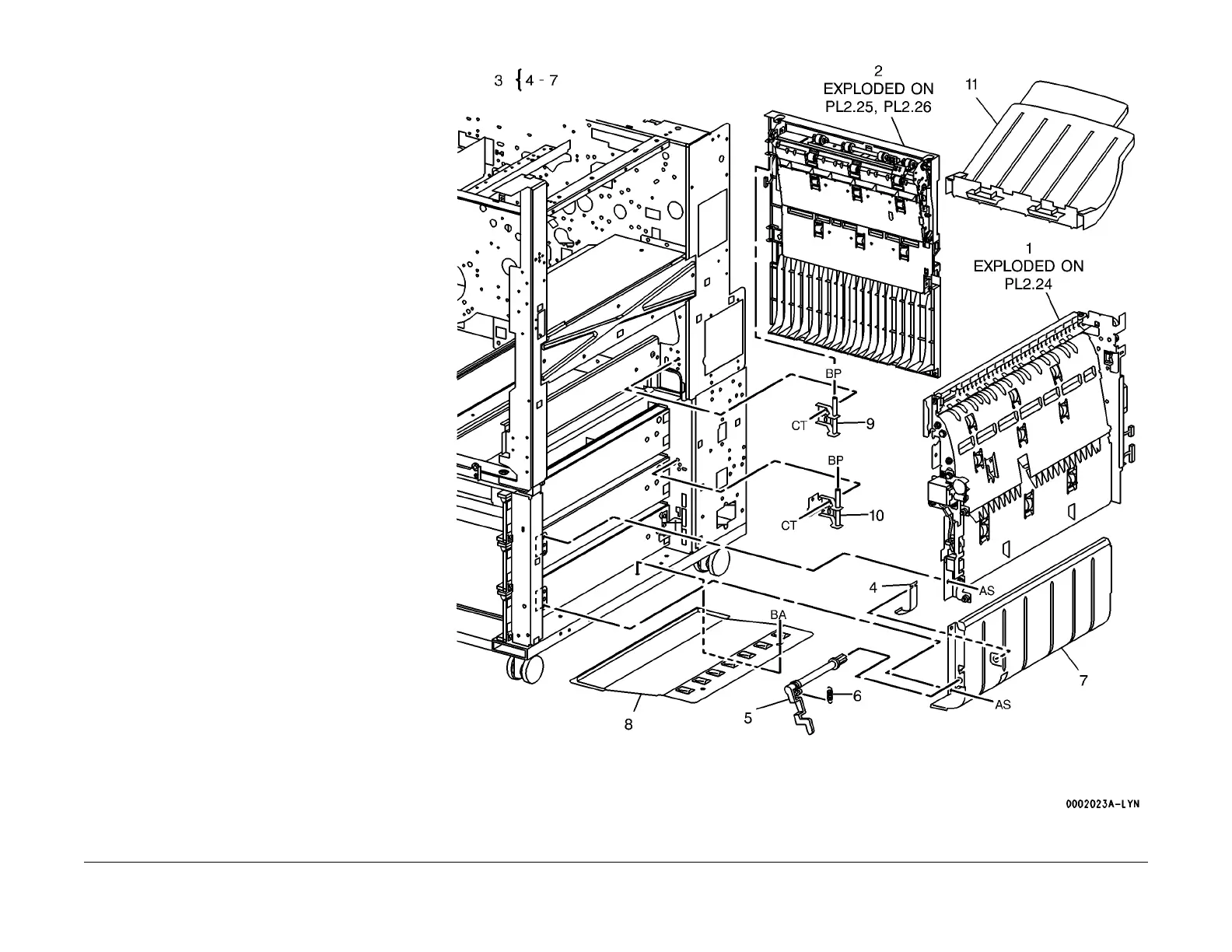

PL 2.23 Inverter Unit
Item Part Description
1 059K08686 Inverter 1 Assembly (REP 2.23.1 )
2 059K33080 Inverter 2 Assembly (REP 2.23.2)
3 054K11512 Inverter 3 Upper Chute Assembly
4 015E58040 Stopper
5 012E98271 Link
6 009E84220 Spring
7 – Inverter 3 Upper Chute (P/O PL
2.
23 It
em 3)
8 – Inverter 3 Lower Chute (Not
Sp
ar
ed)
9 003K84472 Hinge
10 003K84792 Hinge
11 050K36514 Exit Tray
