REP 15.2.28 Stacker Height Sensor
Parts List on PL 18.20
Removal
WARNING
To avoid personal injury or shock, disconnect the Finisher cable connector. Switch off
the machine power and disconnect the machine Power Cord.
1. Switch off the printer power and disconnect the AC Power Cord.
2. Remove the Stapler Cover Assembly (REP 15.3.
3).
3. Remove the Rear Lower Cover (REP 15.3.
15).
4. Remove the Compiler Cover Assembly (REP 15.2.
22).
5. Remove the Eject Pinch Roll Shaft Assembly (REP 15.
2.23).
6. Remove the Stacker Height Sensor (Figu
re 1).
1. Release the latches that are securing the Stack
Height Sensor to the Sensor
Bracket, and remove the Sensor.

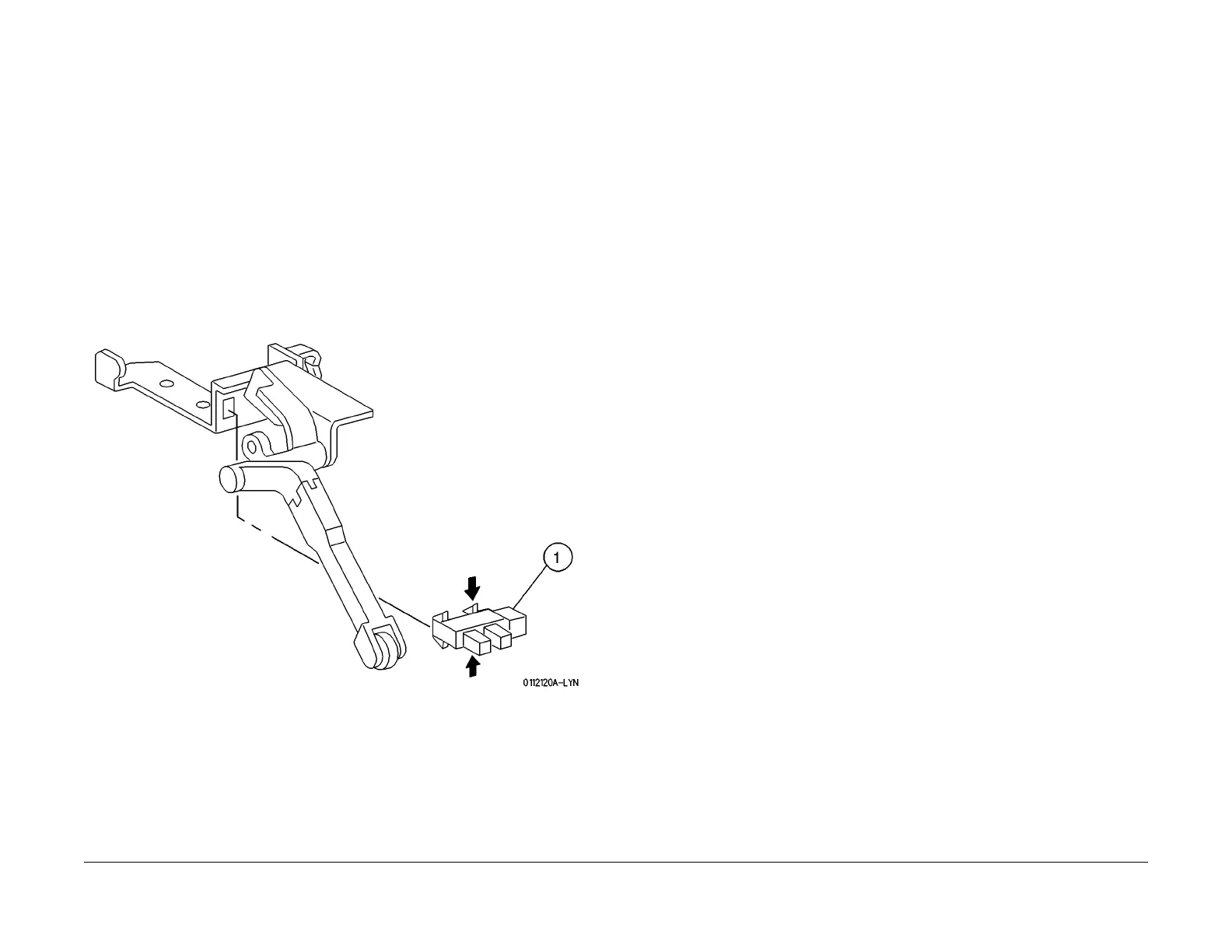

Figure 1 Remove the Stacker Height Sensor
Replacement
1. Position the Stack Height Sensor into the Sensor cutout in the Sensor Bracket.
2. Raise and lower the Stack Height Sensor Actuator to make sure the Actuator arm moves
fre
ely between the arms of the Stack Height Sensor.
3. Reinstall the eject Pinch Roll Shaft Assembly.
4. Reinstall the Compiler Cover Assembly.
5. Raise and lower the Compiler Cover Assembly to make sure it moves freely.
6. Check that the Stack Height Actuator and Pinch Rolls moves freely.
7. Reinstall the Rear Lower Cover.
8. Reinstall the Stapler Cover Assembly.
