Xerox DocuColor 12/DCCS50 User Manual

1/05
5-271
DocuColor 12/DCCS50
PL 6.1
Parts Lists
Reissue

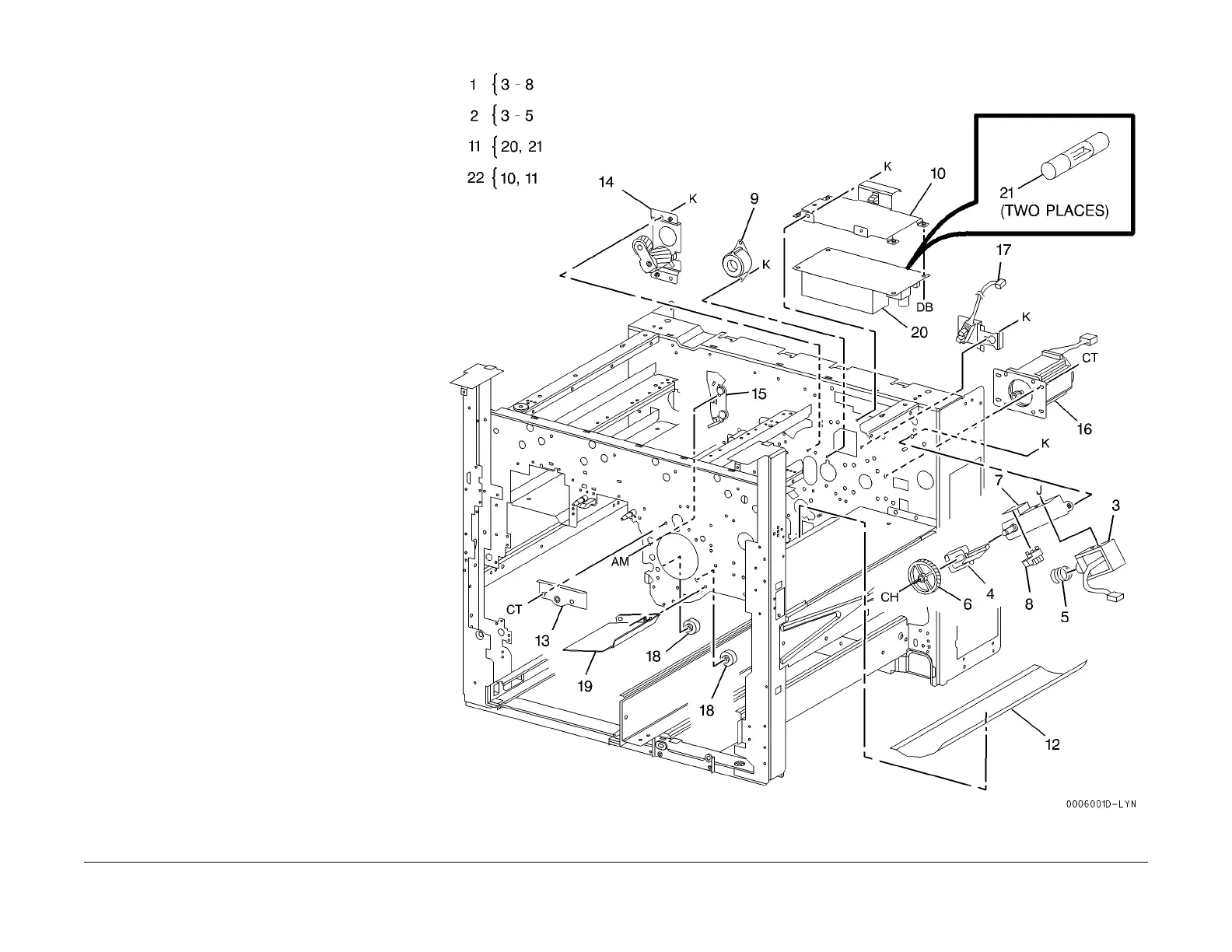

PL 6.1 Development Components
Item Part Description
1 011K94091 Rotary Latch Lever Assembly
(REP 6.
1.3 )
2 121K16401 Rotary Latch Solenoid Assembly
3 – Solenoid (P/O PL 6.1 Item 2)
4 – Lever (P/O PL 6.1 Item 2)
5 809E15180 Spring
6 – Gear (P/O PL 6.1 Item 1)
7 – Bracket (P/O PL 6.1 Item 1)
8 130E82190 Rotary Latch Sensor
9 – Bearing (Not Spared)
10 – Rotary PWB (P/O PL 6.1 Item 22)
11 600K82900 High Frequence Noise Rotary PWB
Kit
(W/
TAG P18) (REP 6.1.1)
12 – Film Seal (Not Spared)
13 – Bracket (Not Spared)
14 068K86934 Gear Assembly
15 115K91133 Bias Brush (REP 6.1.4 )
16 127K28490 Rotary Motor
17 130K87380 Rotary Home Position Sensor
(RE
P 6.
1.2 )
18 – Bearing (Not Spared)
19 – Support Tray (Not Spared)
20 – High Frequence Noise Rotary PWB
(P/
O P
L 6.1 Item 11)
21 099P03019 Fuses
22 – Rotary PWB Assembly (Not
Sp
ar
ed) (W/TAG P2)
