Xerox DocuColor 12/DCCS50 User Manual

1/05
4-128
DocuColor 12/DCCS50
REP 8.3.5, REP 8.4.1
Reissue
Repairs and Adjustments

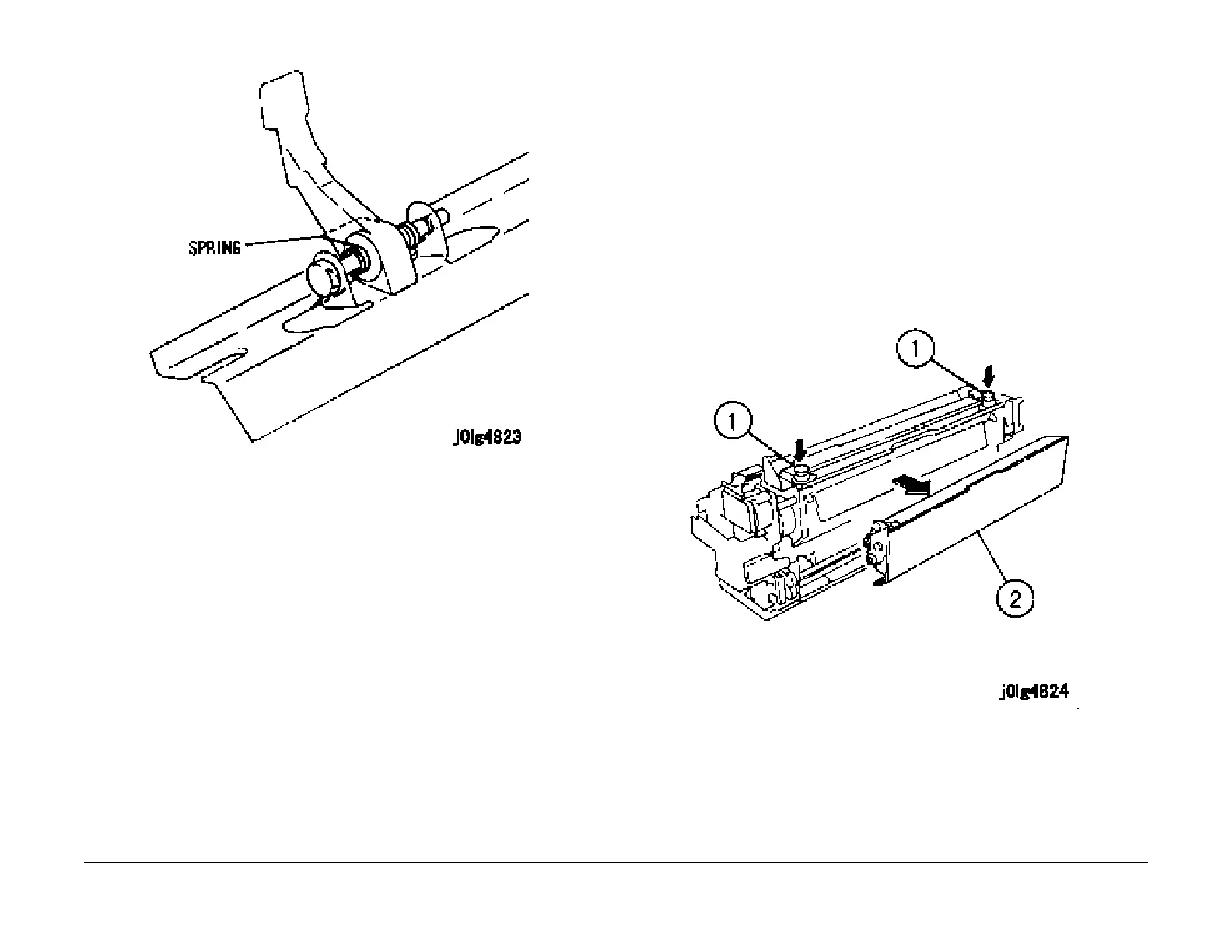

Figure 3 Install the Heat Roll Stripper Finger
1. Reinstall the parts in the reverse order of disassembly.
2. Perform the Standard Fuser Break-In Procedure (GP
1 Fuser Break-In Procedure).
REP 8.4.1 Web Motor/EXT-HR Retract Motor
Parts List on PL 8.4
Removal
WARNING
Turn power off and disconnect the power plug.
CAUTION
Since the Fuser is very hot, wait until the Fuser becomes sufficiently cold.
1. Open the Front Door.
2. Remove the Fuser Unit (REP
8.1.
1).
3. Remove the Front Cover (PL 8.
1).
4. Remove the Web Assembly (Figure 1).
1.
Press the Latch Release Buttons (2).
2. Remove the Web Assembly.
Figure 1 Remove the Web Assembly
5. Remove the bracket (Figur
e 2).
1. Release the clamp and remove the wire.
2. Remove the wire from the edge saddle.
3. Disconnect the connector.
