1/05

5-234

DocuColor 12/DCCS50

PL 2.2

Reissue

Parts Lists

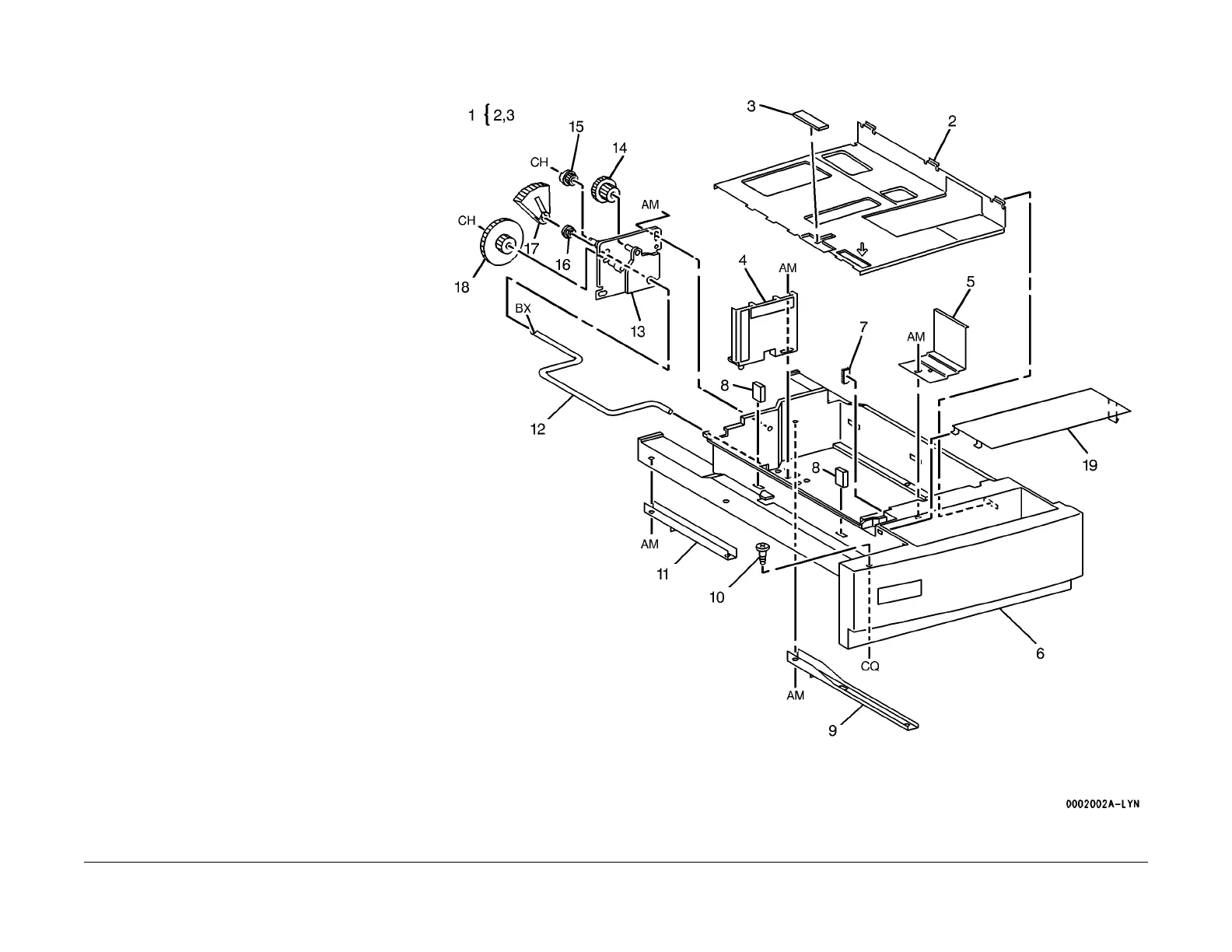

PL 2.2 Tray 1 Component

Item Part Description

1 015K34310 Bottom Plate Assembly

2 – Bottom Plate (P/O PL 2.2 Item 1)

3 – Pad (P/O PL 2.2 Item 1)

4 038E88641 Side Guide

5 038E88650 End Guide

6 050E87465 Cassette

7 019E39131 Pad

8 019K94390 Pad

9 015K41381 Right Rail Plate

10 – Screw (P/O PL 2.1 Item 4)

11 015K41370 Left Rail Plate

12 – Shaft (P/O PL 2.1 Item 4)

13 015K31460 Rear Plate

14 007E50410 Gear (18/30)

15 007E30970 Gear (13)

16 013E83730 Bearing

17 007E50430 Gear (60)

18 007E50420 Gear (20/53)

19 – Cover (P/O PL 2.1 Item 4)
