1/05
4-148
DocuColor 12/DCCS50
REP 9.3.3, REP 9.5.1
Reissue
Repairs and Adjustments

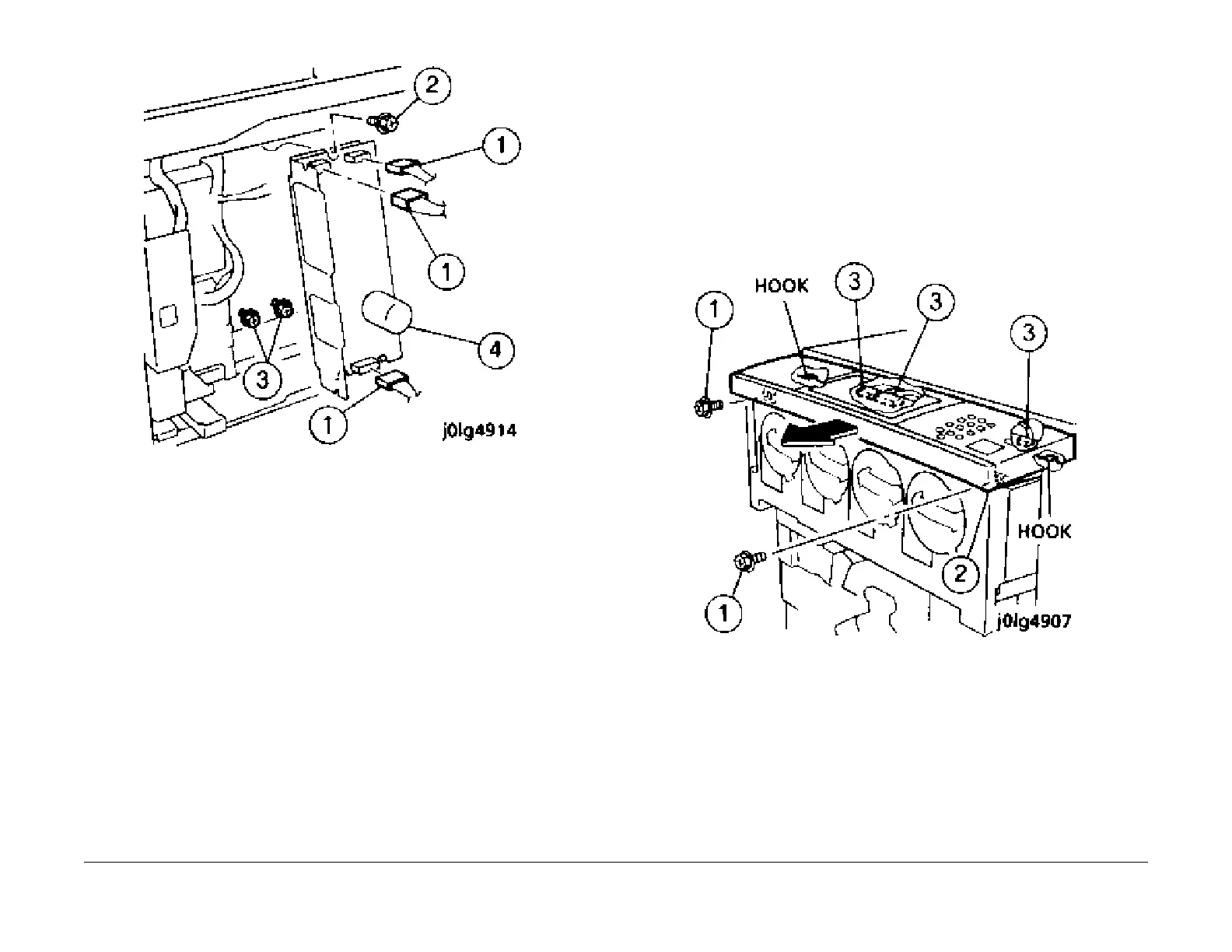

Figure 5 Remove the B3/B3H LVPS
Installation
1. Reinstall the parts in the reverse order of disassembly.
REP 9.5.1 Control Panel
Parts List on PL 9.5
Removal
WARNING
Turn power off and disconnect the power plug.
1. Open the Front Door.
2. Remove the Control Panel (Figure 1).
1.
Remove the screws (2).
2. Slide the Control Panel to the front. (Release it from the hook.)
3. Disconnect the connectors (3).
Figure 1 Remove the Control Panel
Installation
1. Reinstall the parts in the reverse order of disassembly. Check/adjust the Touch Panel
Starting Point Correction (ADJ 9.1.18).
