DocuColor 12/DCCS50
Eject/Offset Functional Description
Reissue
Principles of Operation

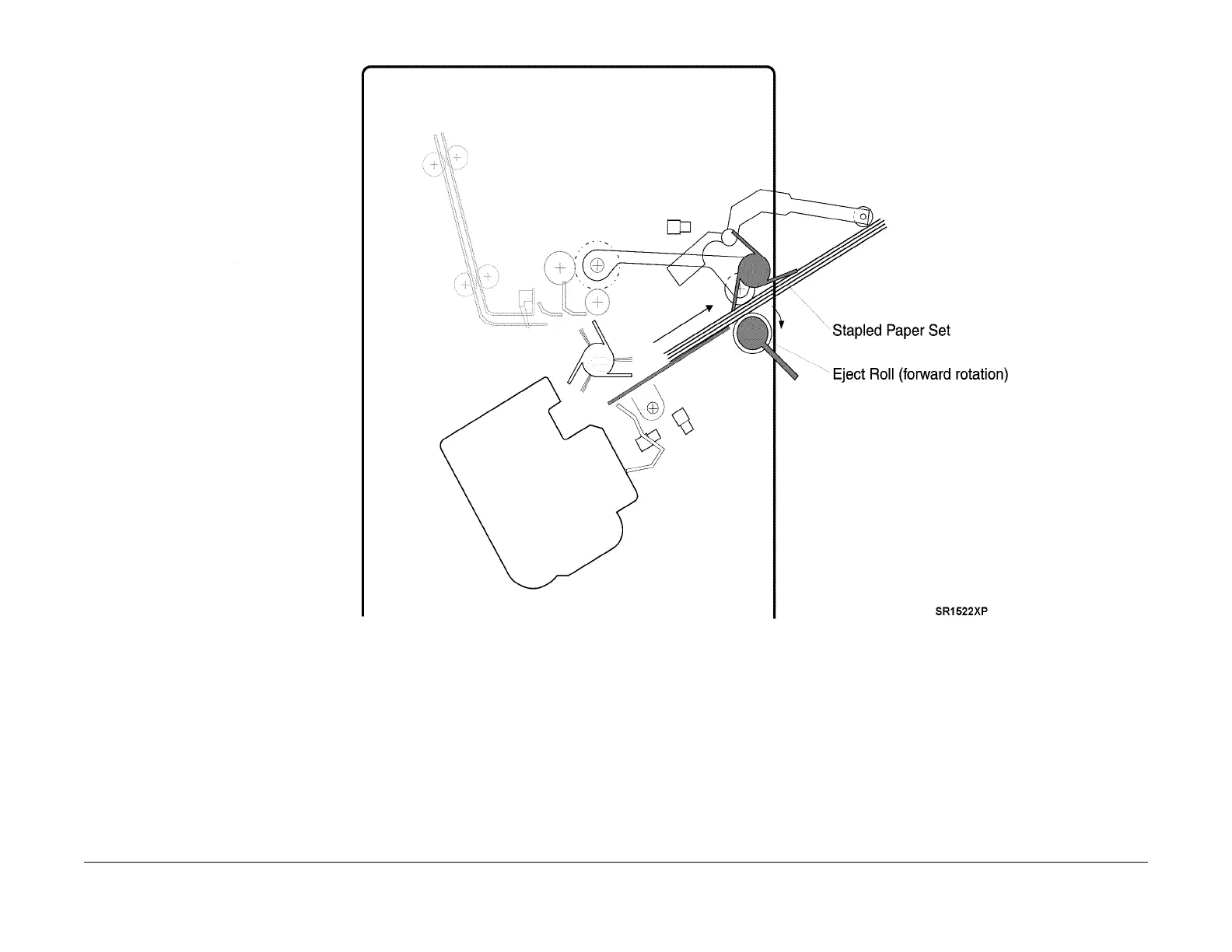

Figure 1 Stapled Paper Set Eject
A cam and gear set shift the Offset Pinch
Rolls and Paddle Assembly back and forth across the
Eject paper path, shifting the exiting sheet of paper so each sheet of paper entering the Fin-
isher Tray is offset slightly f
rom
the previous sheet (Figure 2).
For additional information, see Eje
ct Clamp/Offset Motor.
(Figure 2.)
