REP 3.1.1 Platen Glass
Parts List on PL 3.1
Removal
CAUTION
Ensure that Tag 8, IIT Support Weld Brace Kit, is installed before the following removal proce-
dure is performed.
WARNING
Turn power off and disconnect the power plug.
1. Open the Platen Cover.
2. Remove the Platen Glass (Figu
re 1).
1. Remove the screws (2).
2. Remove the Right Side Plate.
3. Remove the Platen Glass.

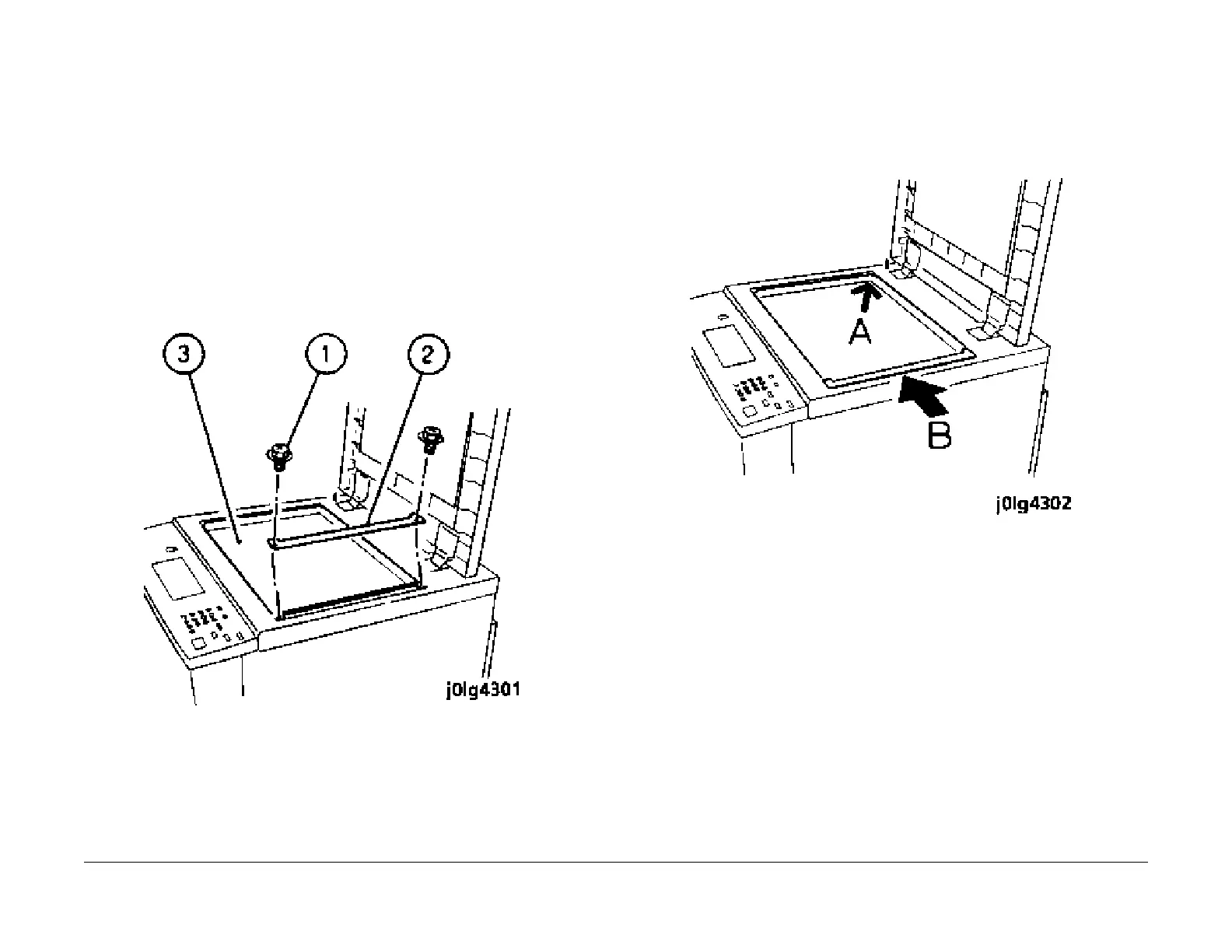

Figure 1 Remove the Platen Glass
Installation
NOTE: Press the Platen Glass in the direction of arrow A; Press the Right Side Plate in the
direction of arrow B (Figure 2).
Figure 2 Reassembly
